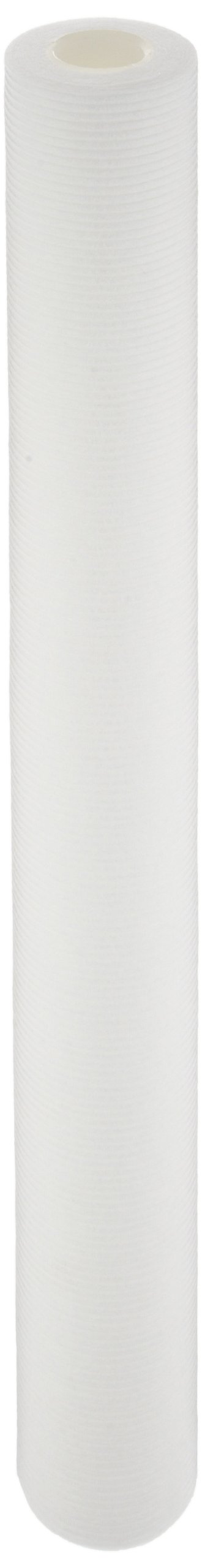

Pentek PD-50-20 Polypropylene Filter Cartridge, 20" x 2-1/2", 50 Microns

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name
Particle Retention Size
50  Micron

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 3 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Reduces sand, silt, scale, and rust particles in commercial drinking water and industrial fluid applications
  • Nominal filtration rating of 5 microns
  • Bonded polypropylene microfiber for resistance to chemicals and bacteria
  • Initial pressure drop of less than 2 psi at a flow rate of 5 gpm
  • Temperature range of 40 to 175 degrees F (4.4 to 79.4 degrees C)

Package Details

Shipping Weight: 0.85 pounds
Package Size: 20 x 2.4 x 2.4 inches

Product Description

This Pentek PD-50-20 polypropylene filter cartridge reduces sand, silt, scale, and rust particles in commercial drinking water and industrial fluid applications. It has a nominal filtration rating of 50 microns at an efficiency of 85%. The filter is made of thermally bonded polypropylene microfibers for resistance to chemicals and bacteria and minimal fiber release. It has an initial pressure drop of less than 2 pounds per square inch (psi) at a flow rate of 5 gallons per minute (gpm), and operates over a temperature range of 40 to 175 degrees F (4.4 to 79.4 degrees C). This polypropylene filter cartridge meets National Sanitation Foundation/American National Standards Institute (NSF/ANSI) standard 42 for quality assurance, and is used for treatment of commercial drinking water and industrial filtration applications.


Nominal filtration rating50 microns
Initial pressure drop at 5 gpm<2 psi
Temperature range40 to 175 degrees F (4.4 to 79.4 degrees C)
Maximum dimensions (H x W)20 x 2-1/2 inches (510 x 64 mm)
Materials certificationNSF/ANSI standard 42

The nominal filtration rating is for a particle removal efficiency of 85%.

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.

Pentair manufactures industrial, commercial, and residential water filtration components and systems. The company, founded in 1966 and headquartered in Minneapolis, MN, meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
