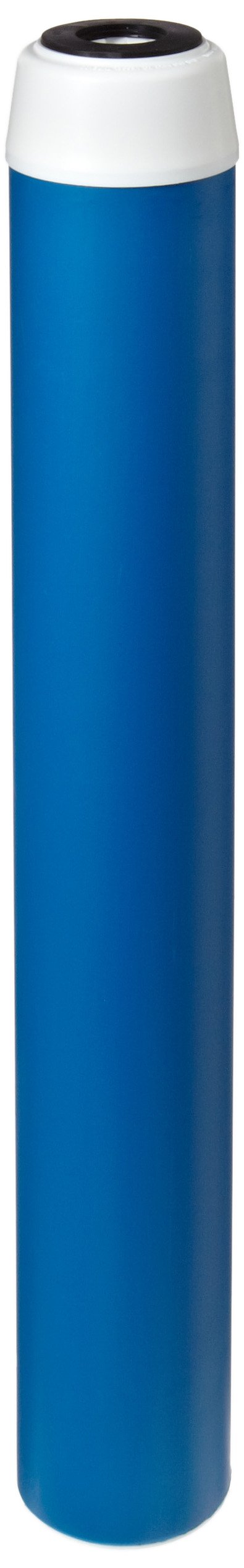

Pentek GAC-20 Carbon Filter Cartridge, 20" x 2-7/8"

Be the first to review this item

ASIN B0014C27T0

Specifications for this item
Number of Items
1
Part Number
155111-43
UPC
700999878061 , 132017518749 , 051678111437
Item Weight
2.2 pounds
Brand Name
Pentek
EAN
0700999878061 , 0132017518749 , 0051678111437
UNSPSC Code
40161502

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 days 2 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Reduces chlorine taste and odor in residential and commercial drinking water
  • 20-micron post filter helps reduce carbon fines and other particles
  • GAC media with polystyrene outer casing and end caps for strength
  • Initial pressure drop of 16.0 psi at a flow rate of 2 gpm
  • Temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C)

Package Details

Shipping Weight: 2.35 pounds
Package Size: 20 x 3 x 3 inches

Product Description

This Pentek GAC-20 carbon filter cartridge reduces chlorine taste and odor in residential and commercial drinking water. It will reduce free available chlorine (FAC) at 2 parts per million (ppm) by at least 75% in up to 10,000 gallons at a flow rate of 2 gallons per minute (gpm). The cartridge is made granular activated carbon (GAC) filter media encased in polystyrene with a spun polypropylene post filter. The nitrile butadiene rubber (Buna-N) and Santoprene (TPE, thermoplastic elastomer) gaskets seal the cartridge against the housing (sold separately). The cartridge has an initial pressure drop of 16.0 pounds per square inch (psi) at a flow rate of 2 gallons per minute (gpm), and operates over a temperature range of 40 to 125 degrees F (4.4 to 51.7 degrees C). This carbon filter cartridge is for treatment of residential and commercial drinking water.

Specifications

Post filter20 microns
Initial pressure drop at 2 gpm16.0 psi
Chlorine reduction capacity10,000 gallons at 2 gpm
Temperature range40 to 125 degrees F (4.4 to 51.7 degrees C)
Maximum dimensions (H x W)20 x 2-7/8 inches (508 x 73 mm)

Chlorine reduction capacity is the minimum total amount of water for which the free available chlorine (FAC) at a concentration of 2 ppm is reduced by at least 75%.

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.

Pentair manufactures industrial, commercial, and residential water filtration components and systems. The company, founded in 1966 and headquartered in Minneapolis, MN, meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
