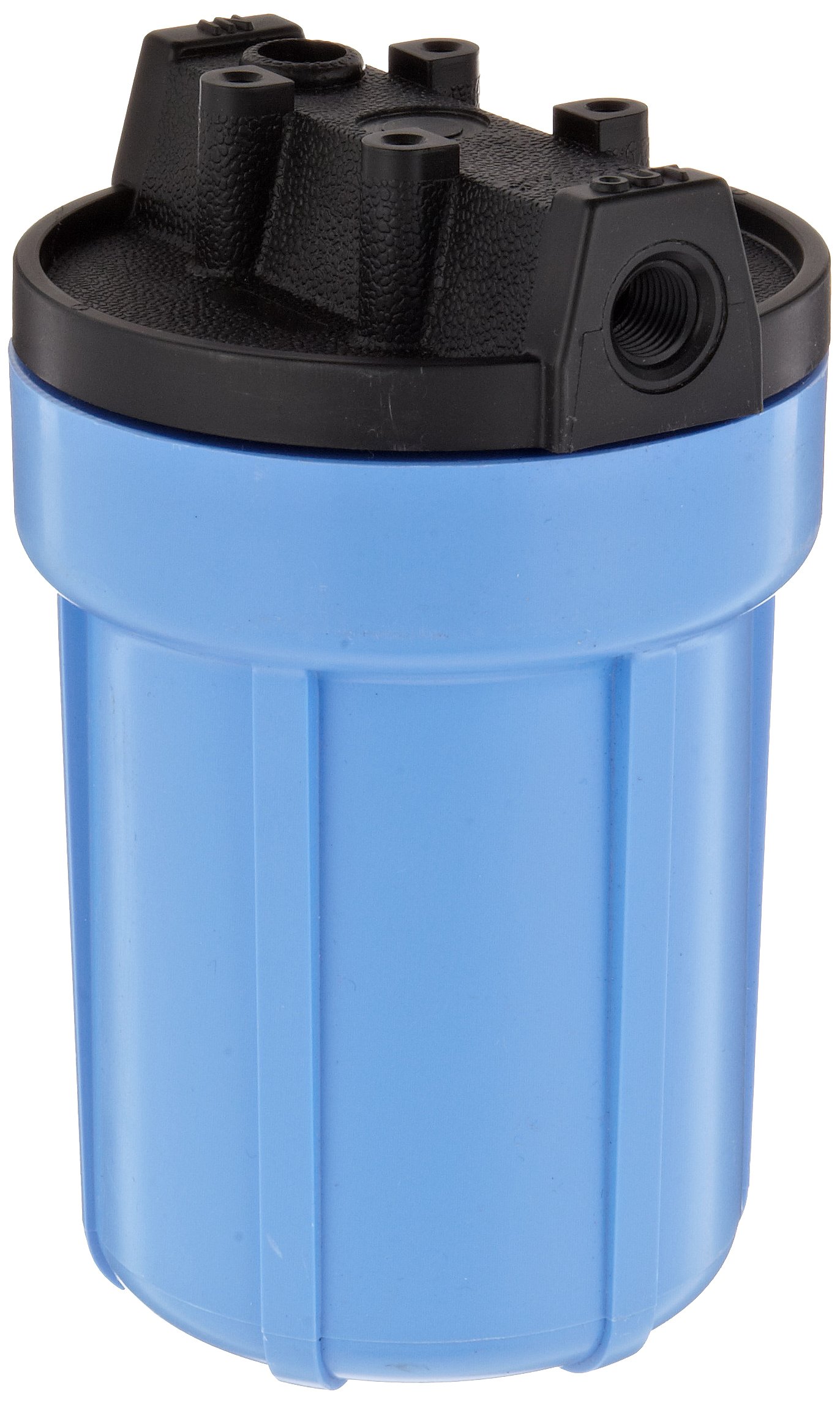

Pentek 158138 1/4" #5 Slim Line Blue Filter Housing

Be the first to review this item

ASIN B0014BY2NA

Specifications for this item
Number of Items
1
Part Number
158138
UPC
163120783021
Brand Name
Pentek
EAN
0163120783021
UNSPSC Code
40161502

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Aug 28? Order in-stock items in the next 11 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Slim filter housing for low-flow applications with space restrictions
  • Reinforced polypropylene for strength and chemical resistance
  • Holds a 5" x 2-1/2" sediment or carbon filter cartridge (sold separately)
  • Initial pressure drop of 2 psi at a flow rate of 3 gpm
  • Maximum temperature of 125 degrees F (51.7 degrees C)

Package Details

Shipping Weight: 1.2 pounds
Package Size: 6.2 x 4.5 x 4.5 inches

Product Description

This Pentek 158138 1/4" #5 Slim Line blue filter housing is suitable for low-flow applications that have space restrictions. The sump and cap are made of reinforced polypropylene for strength and resistance to chemicals. The cap has 1/4" female National Pipe Thread Taper (NPT) threaded input and output connections and a nitrile butadiene rubber (Buna-N) O-ring to ensure a watertight seal. The housing can be used with a 5" x 2-1/2" sediment or carbon filter cartridge (sold separately). It has an initial pressure drop of 2 pounds per square inch (psi) at a flow rate of 3 gallons per minute (gpm), a maximum operating pressure of 125 psi, and a maximum operating temperature of 125 degrees F (51.7 degrees C). This filter housing meets Food and Drug Administration (FDA) standards, and is for use in various applications, including residential drinking water filtration, food service, and humidifying systems, among others.

Specifications

Filter cartridge size (H x W) (sold separately) 5 x 2.5 inches (127 x 63.5 mm)
Initial pressure drop at 3 gpm 2 psi
Maximum temperature 125 degrees F (51.7 degrees C)
Maximum pressure 125 psi
Maximum dimensions (H x W) 7 x 4-3/8 inches (178 x 111 mm)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.

Pentair manufactures industrial, commercial, and residential water filtration components and systems. The company, founded in 1966 and headquartered in Minneapolis, MN, meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
