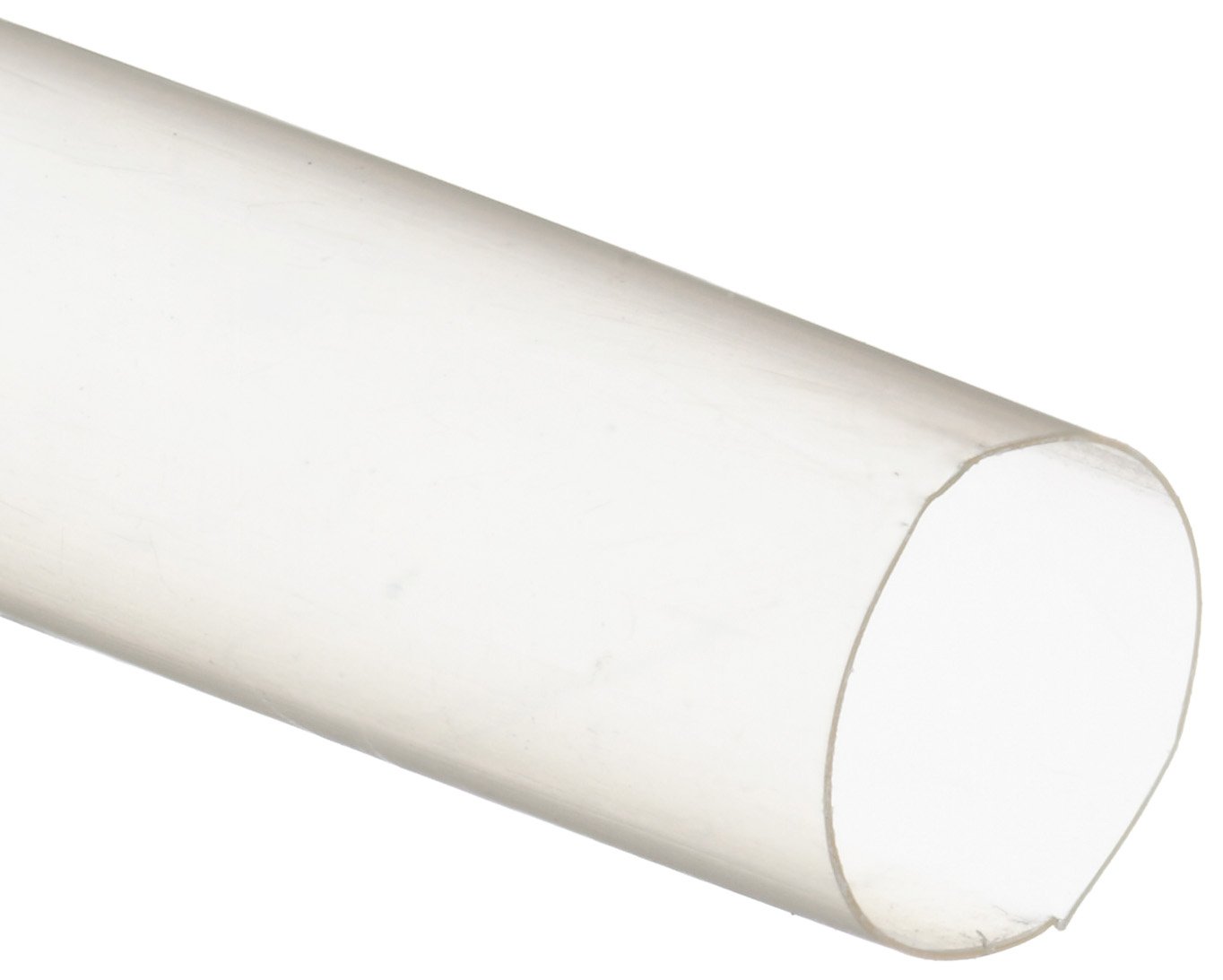

Cobalt Polymers Pebax PEB72-04004C 2:1 Clear Heat Shrink Tubing 72D, 0.036" ID

Be the first to review this item

Product Specifications
Pkg Qty
1
Item Shape
Round
Durometer
72D
Color Name
White Translucent
Material Type
Pebax
Part Number
PEB72-04004C
Outside Diameter
0.028  inches
Brand Name
Cobalt Polymers
Inside Diameter
0.020  inches
Wall Thickness
0.004  inches
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 5 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-1 of 1
12" B0013HR3K4 17 $8.23 Buy Options

Key Features

  • Heat shrink tubing for encasing medical device components
  • Pebax for high elastic memory, toughness, durability, strength at low temperatures, and resistance to most chemicals
  • Provides a 2:1 shrink ratio
  • 0.036" minimum inside diameter (size prior to shrinking)
  • USP Class VI Standard compliant for the end-use of plastics and exposure to human tissue

Product Description

This Cobalt Polymers Pebax PEB72-04004C 2:1 clear heat shrink tubing has a 0.036" minimum inside diameter (ID) and is suitable for encasing medical device components. It is made of Pebax for high elastic memory, toughness, durability, strength at low temperatures, and resistance to most chemicals. It has a 2:1 shrink ratio and is United States Pharmacopeia (USP) Class VI Standard compliant for the end-use of plastics and the type and time of their exposure to human tissue. This heat shrink tubing is suitable for a wide range of medical, industrial, and commercial electrical applications.

Specifications
ColorClear
Shrink ratio2:1
Minimum expanded ID0.036" (0.91 mm)
Maximum recovered ID0.020" (0.50 mm)
Nominal recovered wall thickness0.004" (0.100 mm)
Minimum recommended shrink temperature340 degrees F (171 degrees C)
Durometer (Shore D)72D
Tensile strength7,500 pounds per square inch (psi)
Elongation limit300%
SterilizationGamma, E-Beam, ETO stable
Dialectic strength>500 volts/mil
Standards metUSP Class VI

Cobalt Polymers manufactures polymer tubing for medical applications. The company, founded in 2011, is headquartered in Cloverdale, CA.
