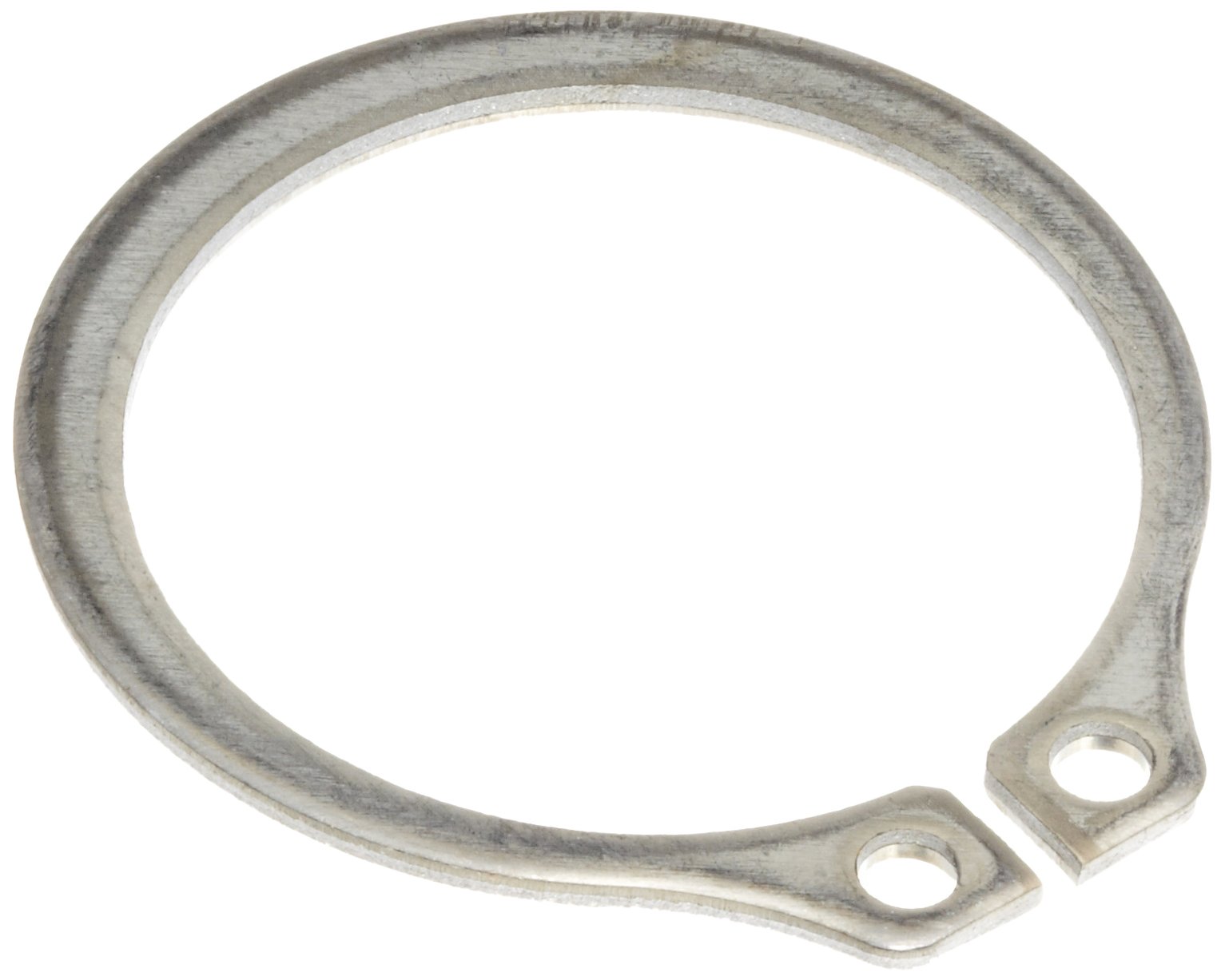

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

Standard External Retaining Ring, Tapered Section, Axial Assembly, PH15-7 Stainless Steel, Passivated Finish, 1/32" Shaft Diameter, 0.025" Thick, Made in US (Pack of 10)

Be the first to review this item

ASIN B00761M4NC

Product Specifications
Compatible Groove Depth
0.011  inches
Compatible Groove Dia.
0.321  inches
Compatible Groove Width
0.029  inches
Compatible with OD
1/32  inches
For Shaft Diameter
1/32
Indentation Hardness
63 rockwell_30N
Inside Diameter
0.309  inches
Inside Diameter Tolerance
+0.002"/-0.005  inches
Item Shape
Standard
Outside Diameter
0.05625  inches
Pkg Qty
10
Thickness
0.025  inches
Thickness Tolerance
+0.002"/-0.002  inches
Specification for this product family (See all  products)
Material Type
Stainless Steel
Part Number
B00D2B73W2
Body Style
Standard
Brand Name
Small Parts
Manufacturer Series Number
SH
Exterior Finish
Passivated
Installation Method
Axial
Grade
PH15-7
Style Name
Tapered Section
UNSPSC Code
31163202
Import Designation
Made in US
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 1 day 3 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Package Details

Shipping Weight: 0.15 pounds
Package Size: 3.6 x 2.8 x 0.2 inches

Product Description

Retaining rings attach to a shaft (external) or install in a bore (internal), creating a shoulder to maintain component positioning within an assembly. While most rings install into a machined groove either on the inside or outside diameter of a shaft, self-locking rings attach to a shaft by using friction from means such as teeth and notches to maintain placement. Retaining rings should fit tightly enough into the groove or onto the shaft so they won't experience any movement.
