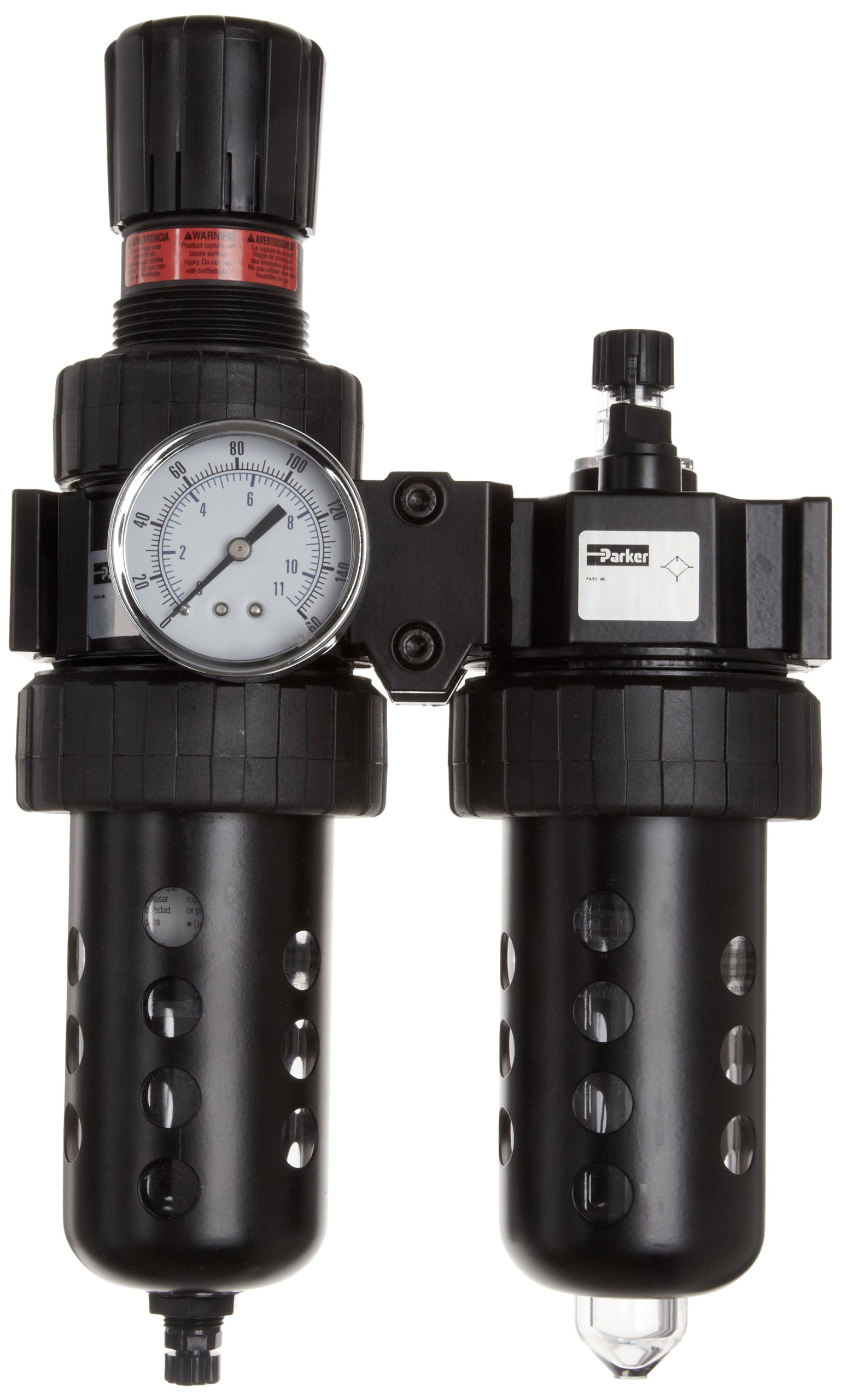

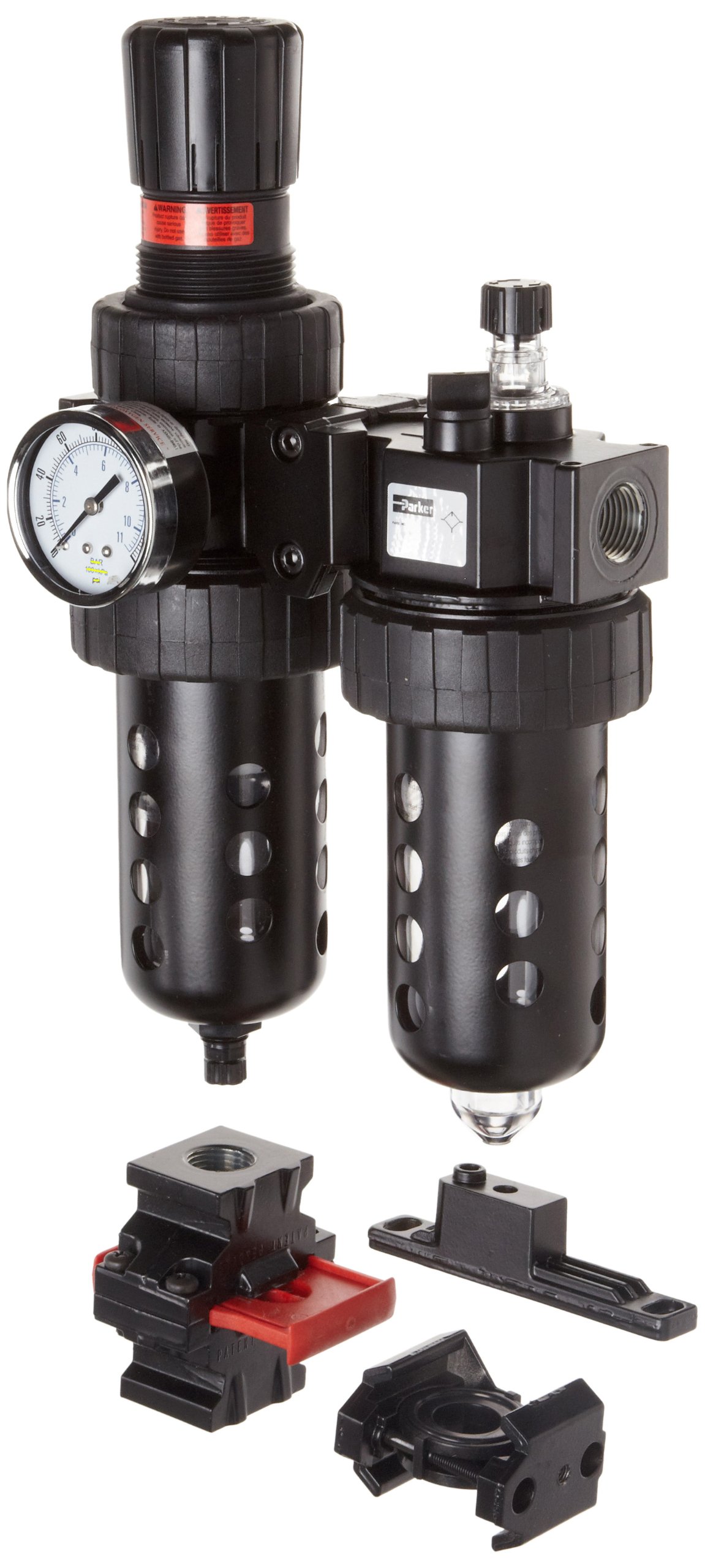

Parker 07H Standard Series Two-Unit Combo Compressed Air Filter/Regulator/Lubricator, NPT

Be the first to review this item

Product Specifications
Manufacturer Series Number
07H Standard
UNSPSC Code
27131603
Structure Description
Two-Unit Combo
Connector Type
NPT
Brand Name
Parker

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 1 hr 6 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Port Size Flow Rate Micron Rating Filter Bowl Type Pressure Range Gauge Mounting Option Height Width Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All All All
Currently showing 1-8 of 8
1/2" 90 scfm 40 micron Metal Bowl with Sight Gauge 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H38A18A4BDC B007FXSNEA yes $312.99 Buy Options
1/2" 90 scfm 40 micron Polycarbonate with Metal Bowl Guard 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H36A18A2BDC B007FXSLQU yes $320.79 Buy Options
1/2" 90 scfm 40 micron Metal Bowl with Sight Gauge 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H34A18A4BDC B007FXSJW6 yes $276.99 Buy Options
1/2" 90 scfm 40 micron Polycarbonate with Metal Bowl Guard 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H32A18A2BDC B007FXSI3Q Temporarily out of stock. Order now and we'll deliver when available. $247.68 Buy Options
3/4"   40 micron Metal Bowl with Sight Gauge 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H48A18A4BDC B007FXSRNM yes $303.78 Buy Options
3/4"   40 micron Polycarbonate with Metal Bowl Guard 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H46A18A2BDC B007FXSQGA yes $294.38 Buy Options
3/4"   40 micron Metal Bowl with Sight Gauge 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H44A18A4BDC B007FXSPEI yes $284.37 Buy Options
3/4"   40 micron Polycarbonate with Metal Bowl Guard 2-125 Gauge Bracket and Lockout 11.76" 10.28" 07H42A18A2BDC B007FXSODU yes $267.54 Buy Options

Key Features

  • Parker 07H standard series two-unit combination compressed air filter/regulator/lubricator (FRL) for decontamination and air preparation in a compressed air system
  • Two-unit module combines filter, regulator, and lubricator (FRL) for space-saving installations
  • Large filter element surface for low pressure drop and increased element life
  • Proportional oil delivery permits wide range of air flows
  • Regulator can be mounted with knob in up or down position to suit specific installation requirements

Product Description

This Parker 07H standard series two-unit combination compressed air filter/regulator/lubricator (FRL) is for decontamination and air preparation in a compressed air system. This two-unit module combines a filter, regulator, and lubricator (FRL) for space-saving installations. Its large filter element surface allows for low pressure drop and increased element life, and its proportional oil delivery permits a wide range of air flow possibilities. The regulator can be mounted with the knob in the up or down position to suit specific installation requirements, and it has male National Pipe Taper (NPT) threads for connecting to female threaded pipes. This filter is suitable for use in manufacturing and automated production environments.

Compressed air filters remove pollutants and submicronic contaminants from clean air in compressed air handling and preparation systems. Clean compressed air provides and controls energy, conveys materials, and is critical to the safe operation of equipment in many industries. Compressed air filters remove particulates (dirt), oil, water, and oil vapor. They can be combined with other units, integrating with either a regulator, which controls excess pressure for better performance, or a lubricator, which adds oil mist to the air, or both. They are typically constructed of metal, such as zinc or type 316 stainless steel, or transparent polycarbonate, and are available with optional indicators, gauges, and drain configurations depending on the application. Compressed air filters are used in a wide range of applications, including food processing, electronics, health care, and instrumentation, among others.

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems. The company, founded in 1918 and headquartered in Cleveland, OH, provides fluid handling, filtration, sealing and shielding, climate control, process control, and aerospace technologies.
