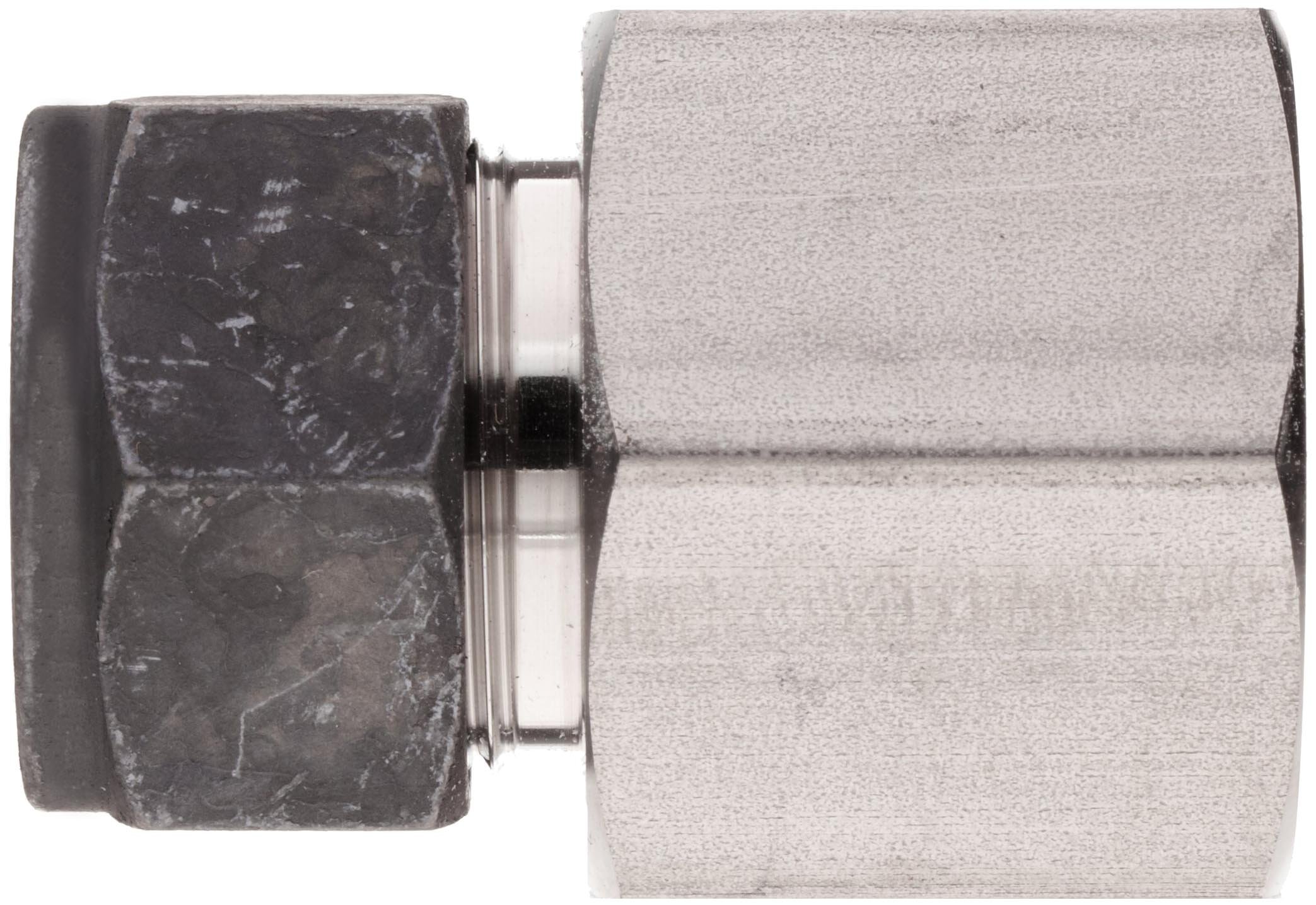

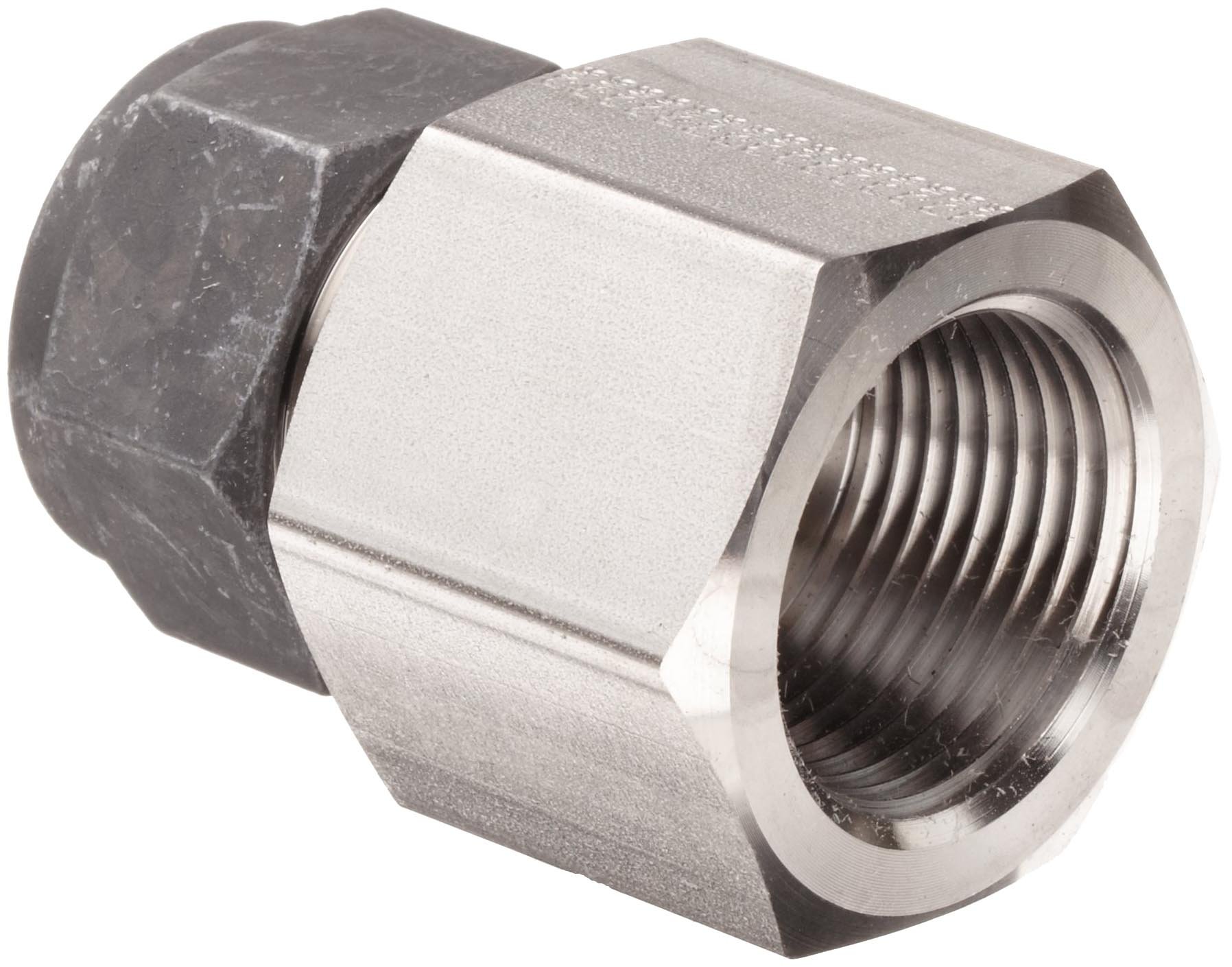

Parker CPI 12-12 GBZ-SS 316 Stainless Steel Compression Tube Fitting, Adapter, Tube OD x NPT Female

Be the first to review this item

Product Specifications
Manufacturer Series Number
GBZ-SS Series
Item Shape
Adapter
Grade
316
Material Type
Stainless Steel
Style Name
Compression
UNSPSC Code
40183100
Brand Name
Parker

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 hr 16 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-9 of 9
1/4" x 1/8" NPT Female 1 B004M18TLU Temporarily out of stock. Order now and we'll deliver when available. $18.44 Buy Options
1/4" x 1/4" NPT Female 1 B004M18TM4 yes $16.71 Buy Options
1/4" x 1/2" NPT Female 1 B004M18TMO yes $31.83 Buy Options
3/8" x 1/4" NPT Female 1 B004M18TMY Usually ships in 3 to 5 weeks $14.13 Buy Options
3/8" x 3/8" NPT Female 1 B004M18TN8 yes $31.53 Buy Options
3/8" x 1/2" NPT Male 1 B004M18TNI Temporarily out of stock. Order now and we'll deliver when available. $41.78 Buy Options
1/2" x 1/4" NPT Female 1 B004M18TNS yes $24.97 Buy Options
1/2" x 1/2" NPT Female 1 B004M18TO2 yes $29.39 Buy Options
3/4" x 3/4" NPT Female 1 B004M18TLK yes $37.68 Buy Options

Key Features

  • Adapter for connecting pipes or fittings of different types
  • Fitting connects to tubing on one end and has an NPT female connector on the other
  • Chemically hardened type 316 stainless steel for higher strength and greater corrosion resistance than untreated stainless steel

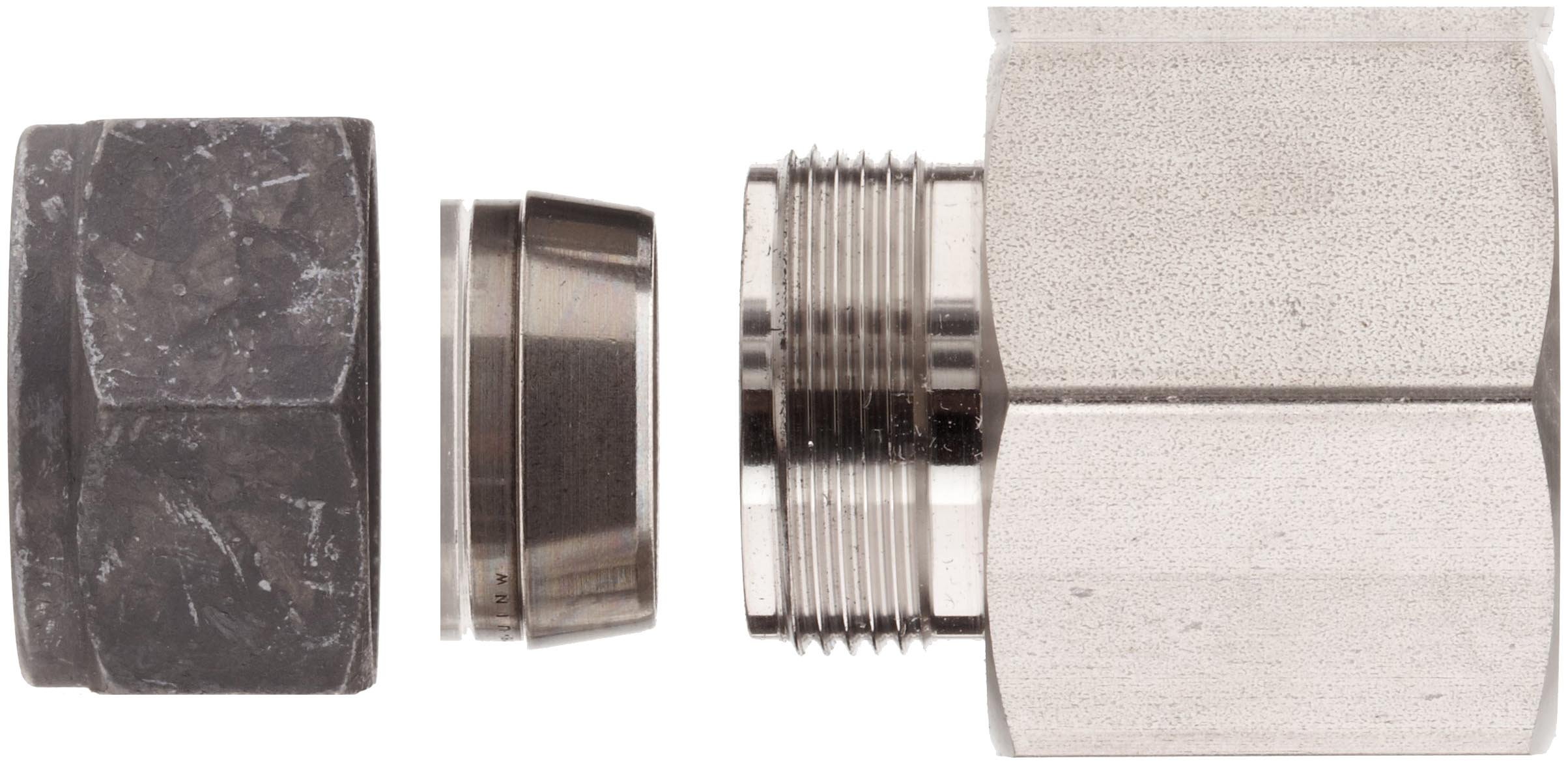

  • Single ferrule compression fitting has fewer possible leak paths than twin ferrule fittings
  • For use with stainless steel pipe and tubing

Product Description

The Parker CPI FBZ-SS series compression tube fitting is made of type 316 stainless steel, and connects tubing to threaded pipe conforming to the National Pipe Thread (NPT) standard in a straight run. This coupling is for a fixed connection between tubing and pipe made of stainless steel. A single ferrule compression fitting connects to tubing on one end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications, and a female NPT connector on the other end connects to threaded pipe. Single ferrule compression fittings have fewer possible leak paths than twin ferrule fittings. This fitting is made of chemically hardened type 316 stainless steel that provides higher strength and greater corrosion resistance than untreated stainless steel. It is commonly used in chemical, petroleum, power generation, laboratory, and medical device plants.

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems for fluid handling, filtration, sealing and shielding, climate control, process control, and aerospace applications. The company, founded in 1918, is headquartered in Cleveland, OH.
