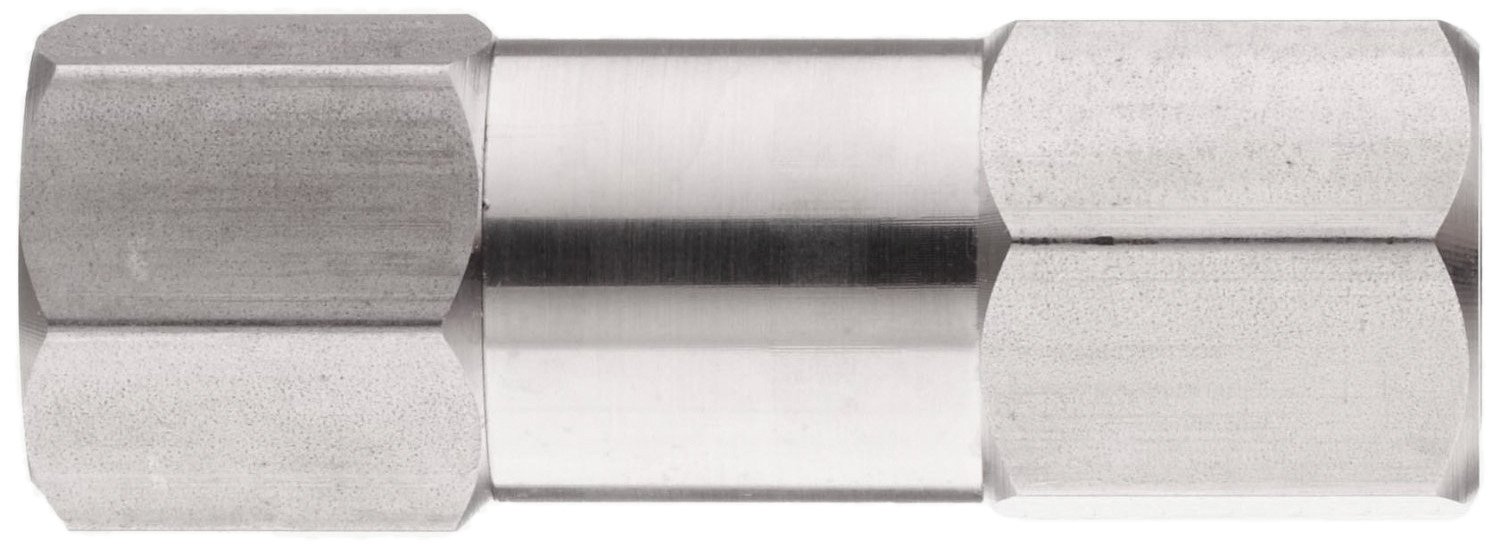

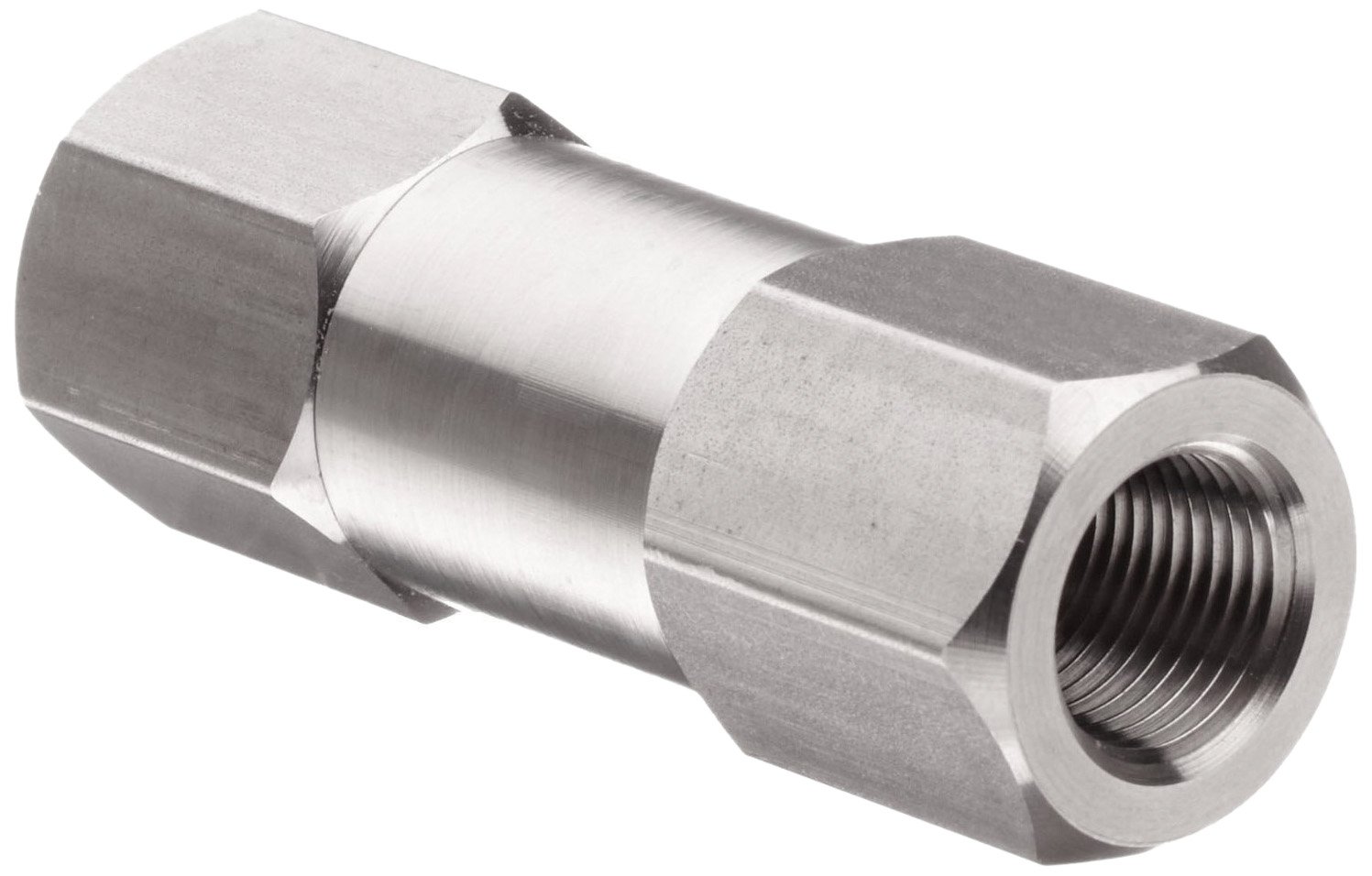

Parker F Series Stainless Steel 316 Instrumentation Filter, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
Fluorocarbon Rubber
Material Type
Stainless Steel
Brand Name
Parker
Manufacturer Series Number
F Series
Upper Temperature Range
400  Degrees Fahrenheit
Grade
316
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141600
LowerTemperature Range
-15  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 2 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Particle retention size Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-18 of 18
1 micron 4.09 inches 12F-F12L-1-SS B006IJIVE4 2 $477.92 Buy Options
1 micron 4.84 inches 16F-F16L-1-SS B006IJIVKI 1 $539.55 Buy Options
10 micron 1.86 inches 2F-F2L-10-SS B006IJIWY8 1 $88.46 Buy Options
10 micron 2.40 inches 4F-F4L-10-SS B006IJIX7E 1 $77.07 Buy Options
10 micron 3.03 inches 6F-F6L-10-SS B006IJIXD8 1 $148.19 Buy Options
10 micron 3.56 inches 8F-F8L-10-SS B006IJIXL0 1 $169.69 Buy Options
10 micron 4.09 inches 12F-F12L-10-SS B006IJIXRO 1 $477.92 Buy Options
10 micron 4.84 inches 16F-F16L-10-SS B006IJIY0U 1 $539.55 Buy Options
5 micron 1.86 inches 2F-F2L-5-SS B006IJIVTO 1 $88.46 Buy Options
5 micron 2.40 inches 4F-F4L-5-SS B006IJIVZI 2 $82.15 Buy Options
5 micron 3.03 inches 6F-F6L-5-SS B006IJIW4S 1 $148.19 Buy Options
5 micron 3.56 inches 8F-F8L-5-SS B006IJIWDO 1 $169.69 Buy Options
5 micron 4.09 inches 12F-F12L-5-SS B006IJIWLG 1 $477.92 Buy Options
50 micron 1.86 inches 2F-F2L-50-SS B006IJIY7I 1 $88.46 Buy Options
50 micron 2.40 inches 4F-F4L-50-SS B006IJIYLE 1 $80.73 Buy Options
50 micron 3.03 inches 6F-F6L-50-SS B006IJIYVO 1 $148.19 Buy Options
50 micron 4.09 inches 12F-F12L-50-SS B006IJIZE0 1 $477.92 Buy Options
50 micron 4.84 inches 16F-F16L-50-SS B006IJIZMW 1 $528.49 Buy Options

Key Features

  • Filter for protecting control systems, process and instrumentation devices, and industrial equipment from contaminants
  • Compact inline fitting for attachment directly on the line
  • 316 stainless steel filter element for resistance to corrosion
  • Fluorocarbon rubber seal for resistance to corrosion
  • Operating temperature range of -15 to +400 degree F

Product Description

This Parker F Series instrumentation filter protects control systems, process and instrumentation devices, and industrial equipment from contaminants. It is made of 316 stainless steel for resistance to corrosion and has female National Pipe Taper (NPT) threaded connections on both ends. It is a compact inline fitting for attachment directly on the line and has a 316 stainless steel filter element for resistance to corrosion and a fluorocarbon rubber seal for resistance to corrosion. It has an operating temperature range of -15 to +400 degree F. This instrumentation filter is suitable for use in the medical, automotive, and instrumentation industries.

Compressed air filters remove pollutants and submicronic contaminants from clean air in compressed air handling and preparation systems. Clean compressed air provides and controls energy, conveys materials, and is critical to the safe operation of equipment in many industries. Compressed air filters remove particulates (dirt), oil, water, and oil vapor. They can be combined with other units, integrating with either a regulator, which controls excess pressure for better performance, or a lubricator, which adds oil mist to the air, or both. They are typically constructed of metal, such as zinc or type 316 stainless steel, or transparent polycarbonate, and are available with optional indicators, gauges, and drain configurations depending on the application. Compressed air filters are used in a wide range of applications, including food processing, electronics, health care, and instrumentation, among others.

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems for liquid handling, filtration, sealing and shielding, climate control, process control, and aerospace applications. The company, founded in 1918, is headquartered in Cleveland, OH.
