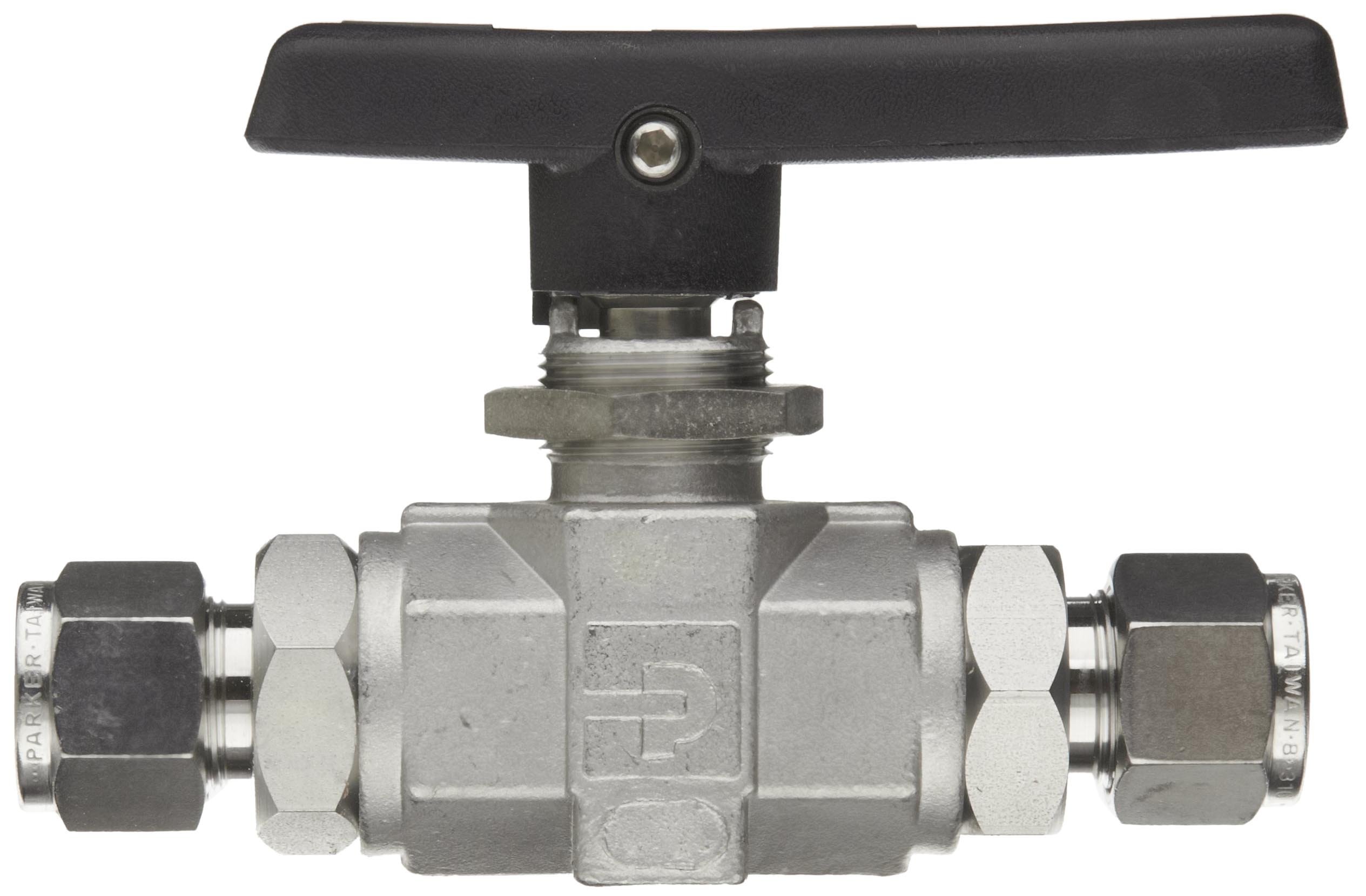

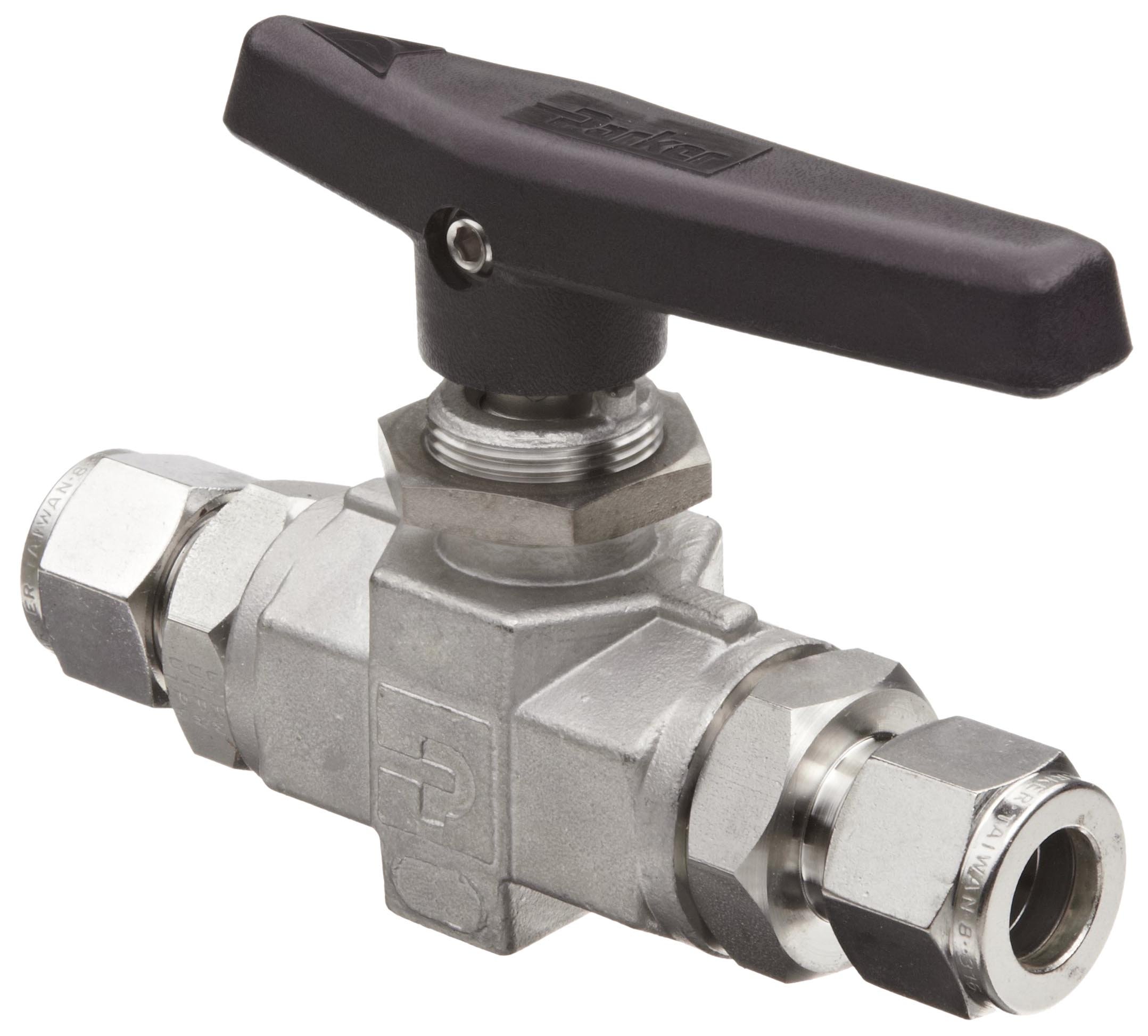

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Parker B Series Stainless Steel 316 Ball Valve, Inline, A-Lok Compression Fitting

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
PTFE
Seat Material Type
PCTFE
Material Type
Stainless Steel 316
Handle Type
Lever
Brand Name
Parker
Maximum Temperature
350  Degrees Fahrenheit
Manufacturer Series Number
B
Upper Temperature Range
350  Degrees Fahrenheit
Specification Met
ASTM A 351
Maximum Pressure
6000  PSI
Connector Type
A-Lok Compression
Style Name
Compression
System of Measurement
Inch
LowerTemperature Range
-65  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 23 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Connection Size End-to-End Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-4 of 4
1/8" 2.72" 1 2A-B2LJ2-SSP B005OBW4G8 1 $99.00 Buy Options
1/4" 3.48" 1 4A-B6LJ2-SSP B004M18U9G 2 $100.65 Buy Options
3/8" 3.6" 1 6A-B6LJ2-SSP B004M18UA0 3 $110.48 Buy Options
1/2" 4.68" 1 8A-B8LJ2-SSP B004M18UAK 1 $230.37 Buy Options

Key Features

  • Stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304
  • Lever handle for manual on/off control
  • PTFE stem and seats reduce the risk of leakage; stem seal can be maintained inline
  • Maximum pressure rating of 6000 psig for CWP and 1500 psig for saturated steam; working temperature range of -60 to 350 degrees Fahrenheit.
  • A-Lok compression ends for a leak-proof connection

Product Description

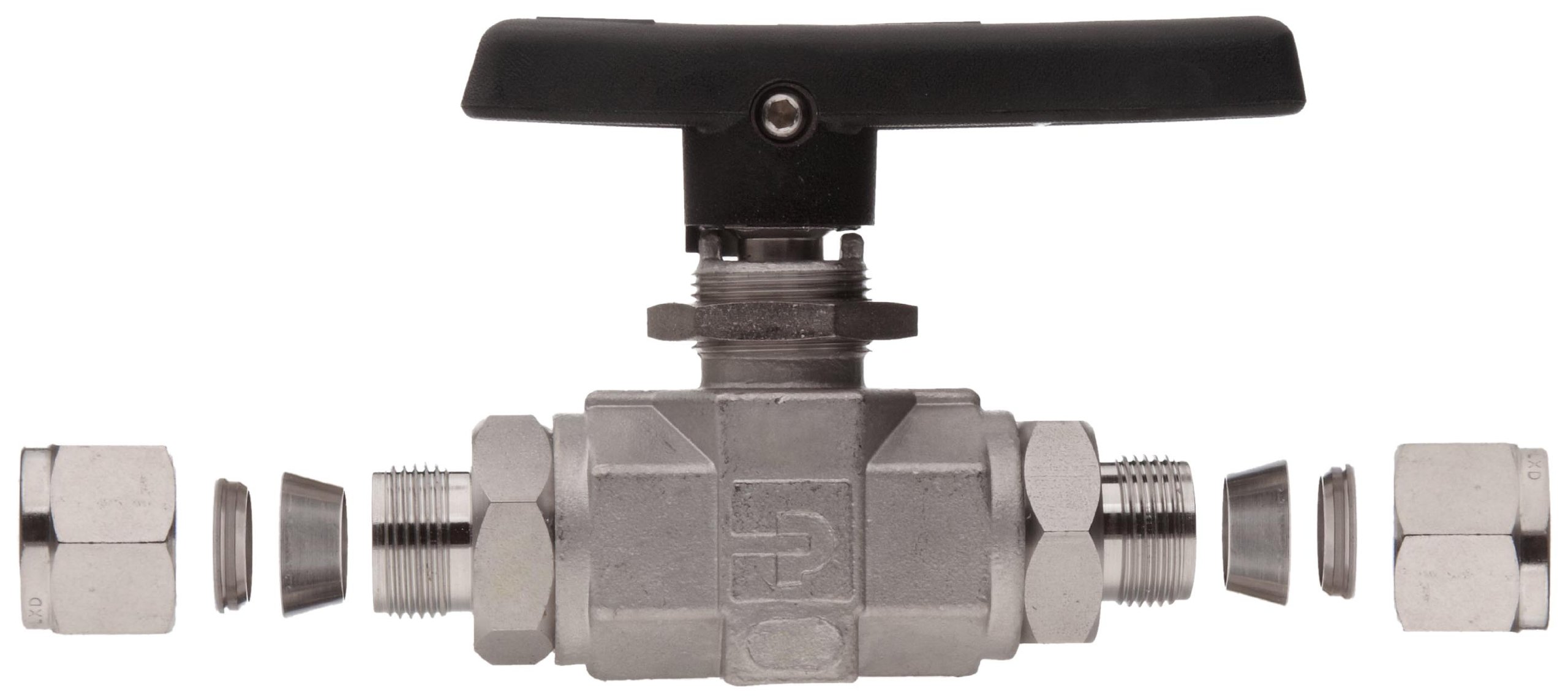

The Parker B series stainless steel 316 inline ball valve has a lever handle and A-Lok compression connections on both ends. This valve body is made of stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304. Stainless steel 316 is sometimes called "marine-grade stainless steel" due to its resistance to chloride corrosion. This valve has a lever handle for manual on/off control and indicates flow direction. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage, and adjustable PTFE stem seal can be maintained inline. With the Parker A-Lok design, the front and back ferrules secure the tubes within the fitting, creating a leak-proof connection without the need for additional joining preparations. The maximum pressure rating is 6000 pounds per square inch (gauge) (psig) for cold working pressure (CWP), 1500 psig for saturated steam, and the working temperature range is -60 to 350 degrees Fahrenheit. This valve meets American Society for Testing and Materials (ASTM) 351 standards for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems. The company, founded in 1918 and headquartered in Cleveland, OH, provides fluid handling, filtration, sealing and shielding, climate control, process control, and aerospace technologies.
