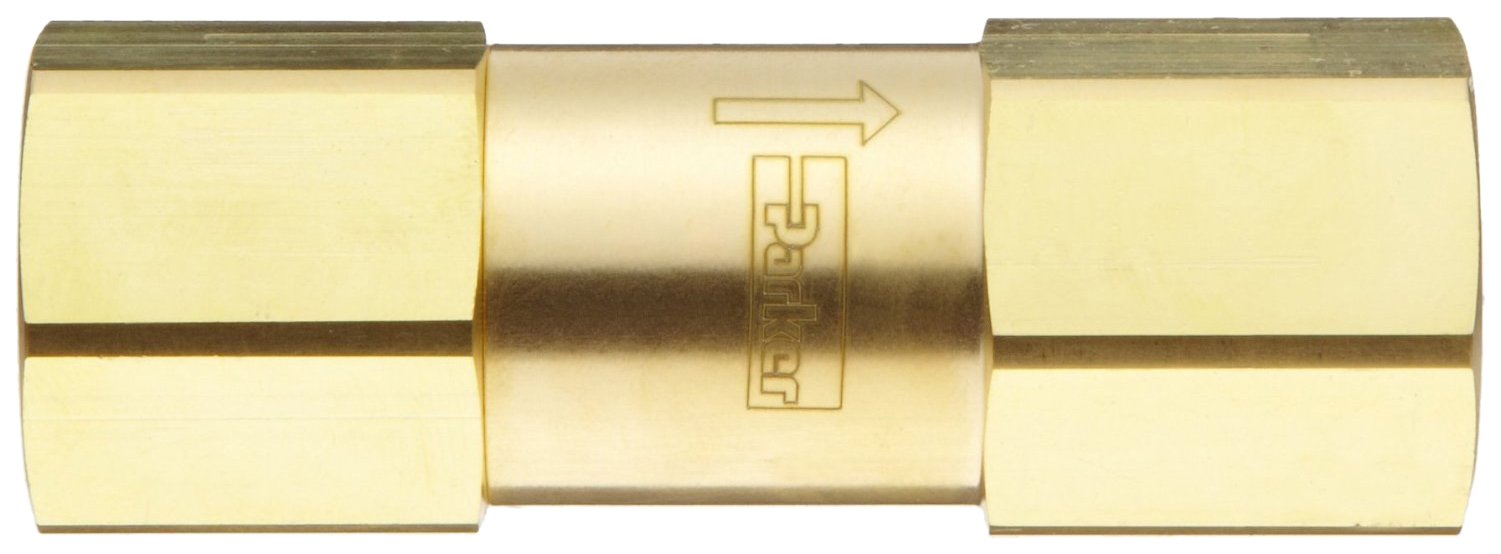

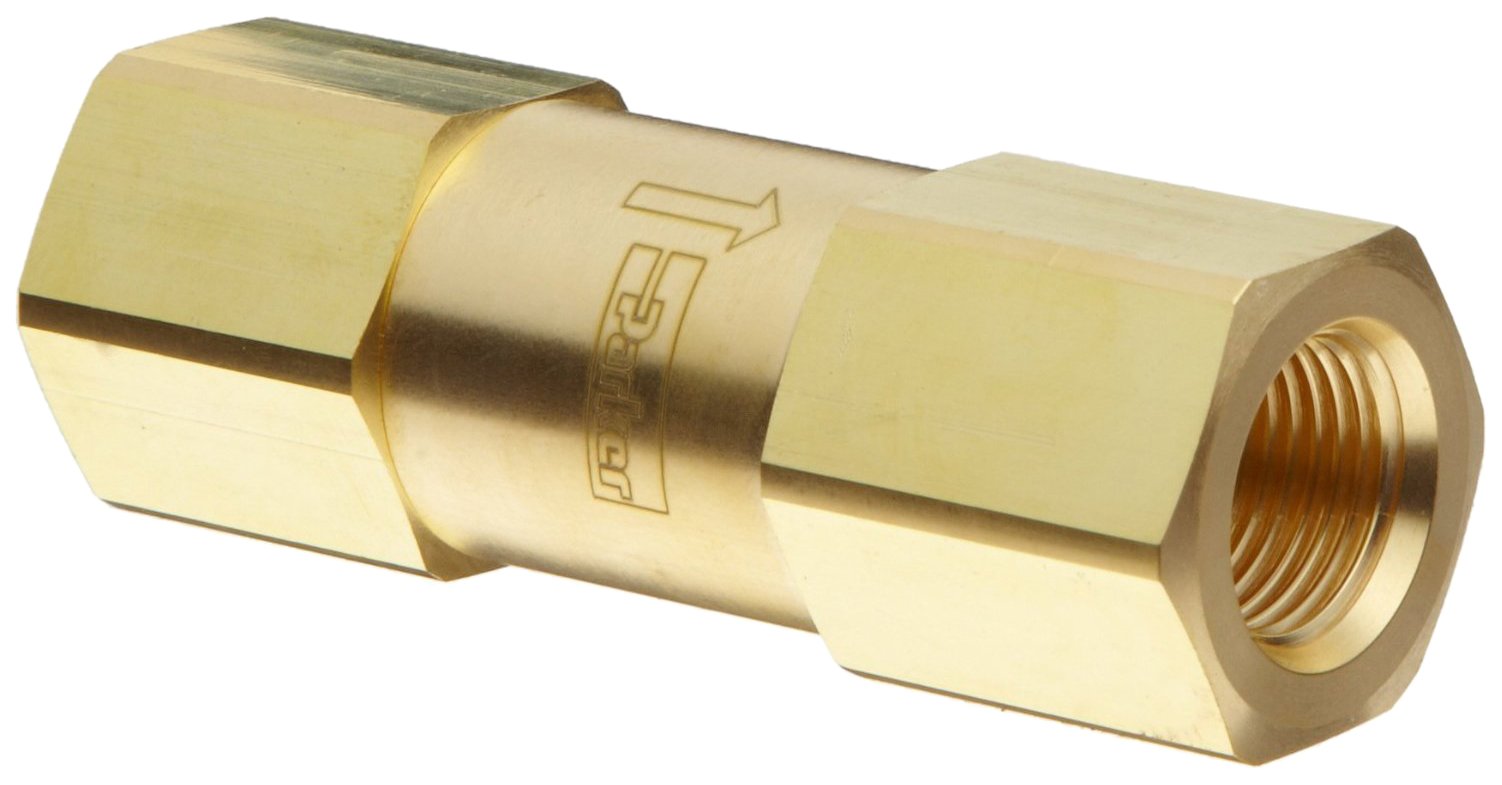

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Parker C Series Brass Check Valve, 5 psi Cracking Pressure, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seat Material Type
Fluorocarbon Rubber
Material Type
Brass
Brand Name
Parker
Manufacturer Series Number
C Series
Upper Temperature Range
400  Degrees Fahrenheit
Maximum Pressure
3000  PSI
Style Name
Threaded
Connector Type
NPT Female
Cracking Pressure
5  PSI
LowerTemperature Range
-15  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-6 of 6
1/8" 1.86" 2F-C2L-5-B B006IJ9V66 2 $34.26 Buy Options
1/4" 2.40" 4F-C4L-5-B B006IJ9W9W Usually ships in 1 to 2 months $40.30 Buy Options
3/8" 3.03" 6F-C6L-5-B B006IJ9WU6 2 $60.17 Buy Options
1/2" 3.56" 8F-C8L-5-B B006IJ9XFK 4 $76.67 Buy Options
3/4" 4.09" 12F-C12L-5-B B006IJ9ZBC 1 $171.09 Buy Options
1" 4.84" 16F-C16L-5-B B006IJA03O 1 $188.02 Buy Options

Key Features

  • Check valve provides unidirectional control of liquids and gases
  • Made from brass for higher corrosion resistance than steel, with a Teflon disc for high/low temperature applications.
  • Fluorocarbon rubber seat for resistance to high temperatures, oil, grease, and chemicals
  • Female NPT threads for connecting to male threaded pipes
  • Cracking pressure is 5 psi and maximum pressure rating is 3000 psi; working temperature range of -15 to 400 degrees Fahrenheit

Product Description

The Parker C series check valve provides unidirectional control of liquids and gases. The valve body is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. The disc is made of Teflon for high/low temperature applications. The seat is made of fluorocarbon rubber, which provides increased resistance to high temperatures, oil, grease, and chemicals It has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The cracking pressure is 5 pounds per square inch (psi), and the maximum pressure rating is 3000 psi. The working temperature range is -15 to 400 degrees Fahrenheit.

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems. The company, founded in 1918 and headquartered in Cleveland, OH, provides fluid handling, filtration, sealing and shielding, climate control, process control, and aerospace technologies.
