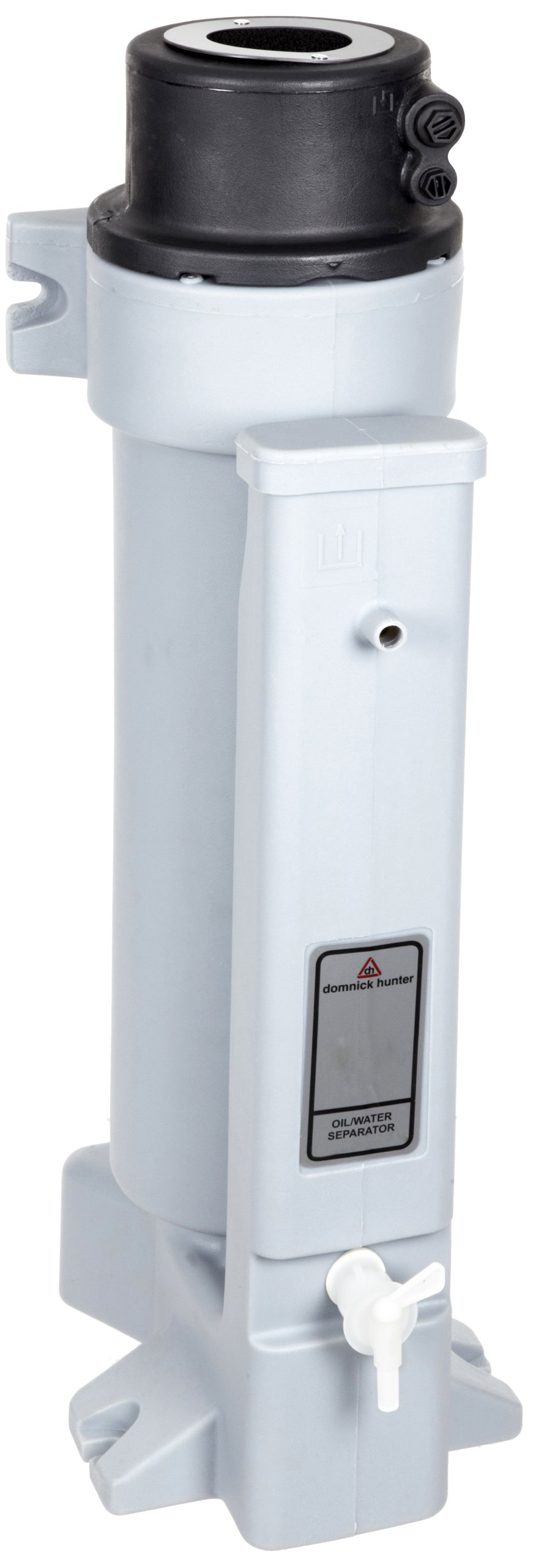

Parker ES Series Compressed Air Oil/Water Separator

Be the first to review this item

Product Specifications
Manufacturer Series Number
ES Series
Upper Temperature Range
95  Degrees Fahrenheit
Maximum Operating Pressure
232  PSI
UNSPSC Code
40161700
Brand Name
Parker
LowerTemperature Range
41  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 23? Order in-stock items in the next 9 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Port Size Height Width Depth Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-7 of 7
1 x 1/2" & 1 x 1/4" Inlet Connections, 3/4" Outlet Hose Connection 32" 18" 14" ES2200 B004O0U642 Usually ships in 1 to 2 months $800.62 Buy Options
1 x 1/2" & 1 x 1/4" Inlet Connections, 3/4" Outlet Hose Connection 33" 10.6" 12.4" ES2100 B004O0U6B0 Temporarily out of stock. Order now and we'll deliver when available. $368.00 Buy Options
1 x 1/2" & 1 x 1/4" Inlet Connections, 1" Outlet Hose Connection 32" 17" 14" ES2150 B004O0U65G 1 $712.00 Buy Options
1 x 1/2" & 3 x 1/4" Inlet Connections, 1" Outlet Hose Connection 47" 26" 41.7" ES2400 B004O0U60Q 1 $1,317.00 Buy Options
1 x 1/2" & 3 x 1/4" Inlet Connections, 1" Outlet Hose Connection 60" 39" 39.7" ES2600 B004O0U5QG Usually ships in 1 to 2 months $3,275.84 Buy Options
1 x 1/2" & 3 x 1/4" Inlet Connections, 1" Outlet Hose Connection 60" 28" 38.7" ES2500 B004O0U5V6 1 $1,879.00 Buy Options
1 x 1/2" & 3 x 1/4" Inlet Connections, 1" Outlet Hose Connection 47" 20" 41.7" ES2300 B004O0U624 1 $993.00 Buy Options

Key Features

  • Oil and water separator for reducing oil concentration in collected condensate to a level permitted for safe disposal
  • Polyethylene for strength and resistance to corrosion
  • Large carbon stage for increased contact time for up to 99.9% clean condensate
  • Large primary settlement chamber for accumulation and removal of dirt particles
  • Adjustable oil outlet funnel for efficient removal of separated oil

Product Description

This Parker ES Series oil/water separator for compressed air systems reduces oil concentration in collected condensate to a level permitted for safe disposal. It is made of polyethylene for strength and resistance to corrosion. It has a large carbon stage for increased contact time for up to 99.9% clean condensate. It has a large primary settlement chamber for accumulation and removal of dirt particles and an adjustable oil outlet funnel for efficient removal of the separated oil.

Compressed air filters remove pollutants and submicronic contaminants from clean air in compressed air handling and preparation systems. Clean compressed air provides and controls energy, conveys materials, and is critical to the safe operation of equipment in many industries. Compressed air filters remove particulates (dirt), oil, water, and oil vapor. They can be combined with other units, integrating with either a regulator, which controls excess pressure for better performance, or a lubricator, which adds oil mist to the air, or both. They are typically constructed of metal, such as zinc or type 316 stainless steel, or transparent polycarbonate, and are available with optional indicators, gauges, and drain configurations depending on the application. Compressed air filters are used in a wide range of applications, including food processing, electronics, health care, and instrumentation, among others.

Parker Hannifin manufactures electromechanical, hydraulic, and pneumatic motion technologies and systems for liquid handling, filtration, sealing and shielding, climate control, process control, and aerospace applications. The company, founded in 1918, is headquartered in Cleveland, OH.
