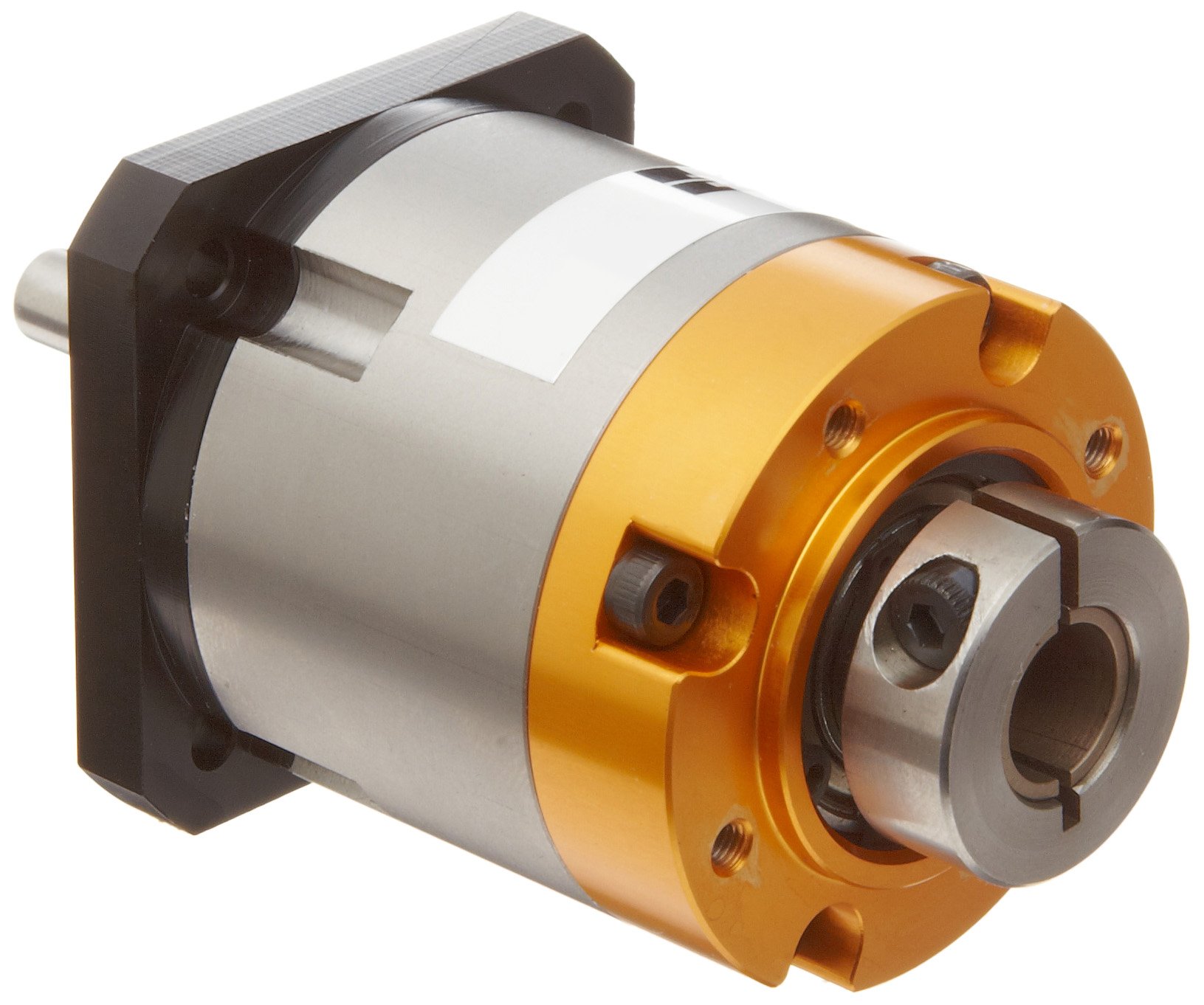

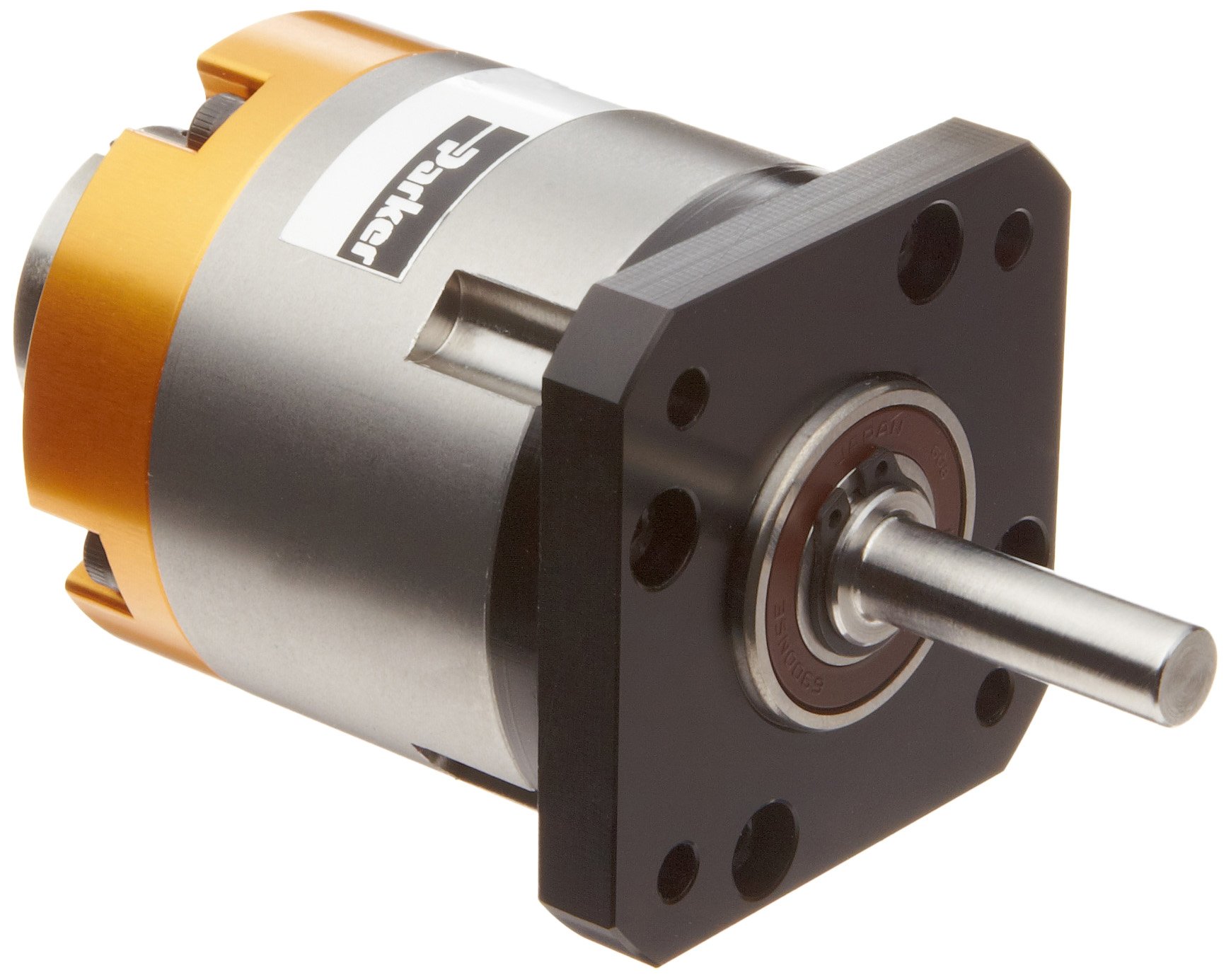

Parker PV17FE-005 In-Line Planetary Gearhead, Square Flange Face, NEMA, 5:1 Ratio, 55in-lbs Nominal Torque, 104in-lbs Acceleration Torque, 0.25" Shaft Diameter, 0.984" Shaft Length, 0.866" Pilot Diameter, 1.724" Bolt Circle, 1.909" Housing Length

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name
Size Name
55in-lbs Nominal Torque, 104in-lbs Acceleration Torque
Style Name
5:1 Ratio, 1.909" Housing Length

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 2 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Used with following Parker Mounting Kits: MV40-001, MV40-002, MV40-003, MV40-004, MV40-006, MV40-007, MV40-011, MV40-012, MV40-013, MV40-014, MV40-016, MV40-017, MV40-020, MV40-034
  • NEMA Frame Size
  • 6.2Nm Nominal Torque, 11.8Nm Acceleration Torque, 6.35mm Shaft Diameter, 25mm Shaft Length, 22mm Pilot Diameter, 43.8mm Bolt Circle, 48.5mm Housing Length
  • 4500 RPM Input Speed
  • <15 arc-min Backlash
  • 96% Efficiency

Package Details

Shipping Weight: 0.95 pounds
Package Size: 6.2 x 4.6 x 4.4 inches
