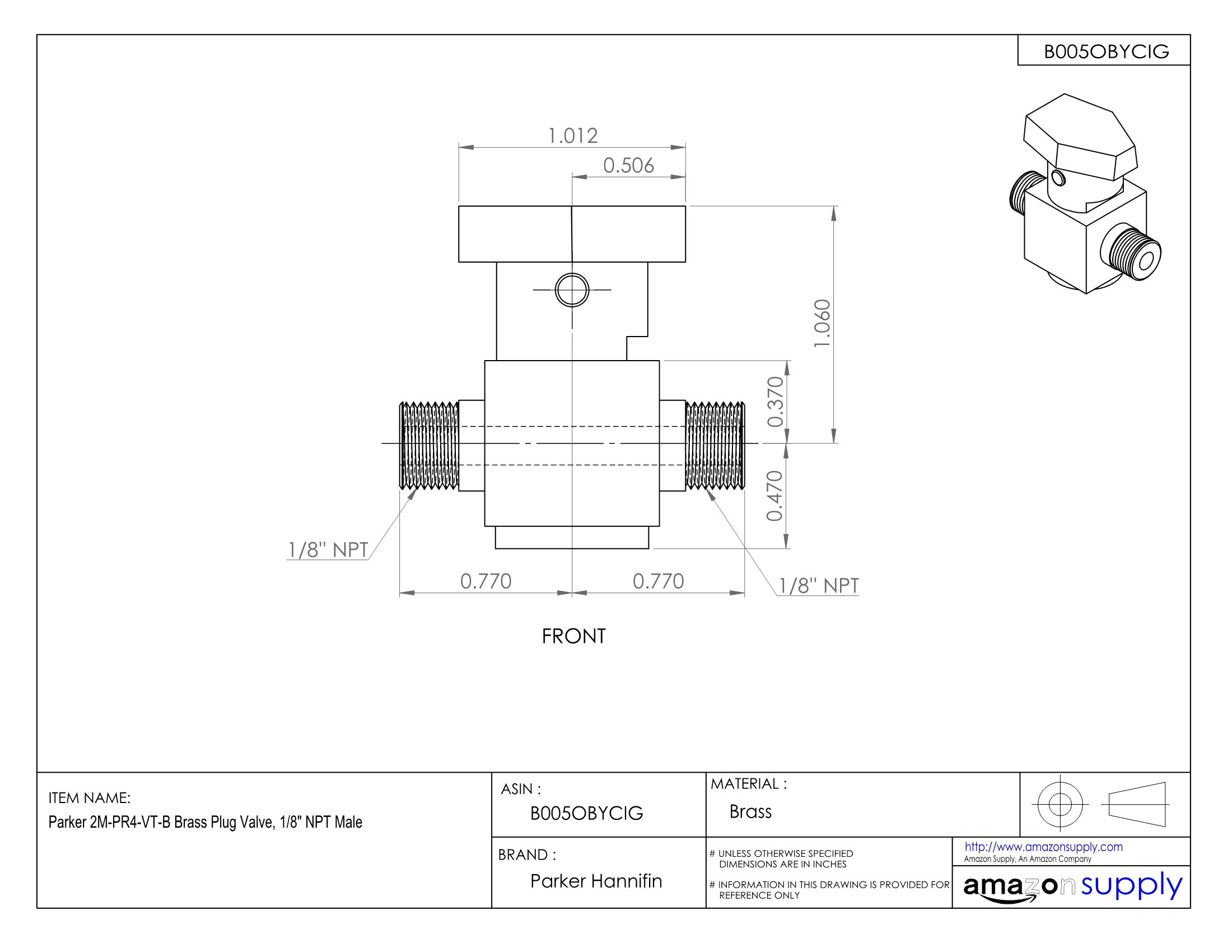

2D CAD Diagrams (Which File Type?)

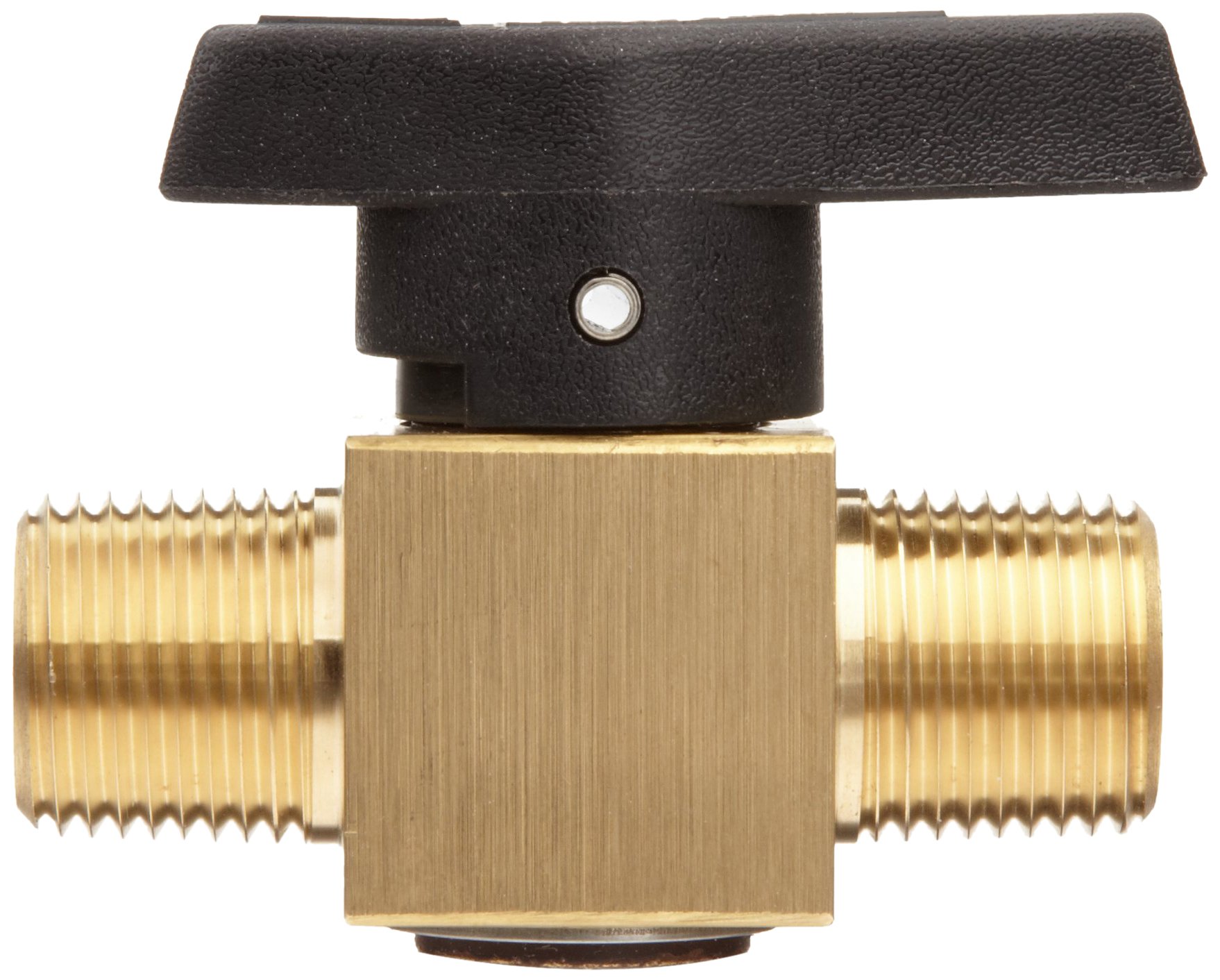

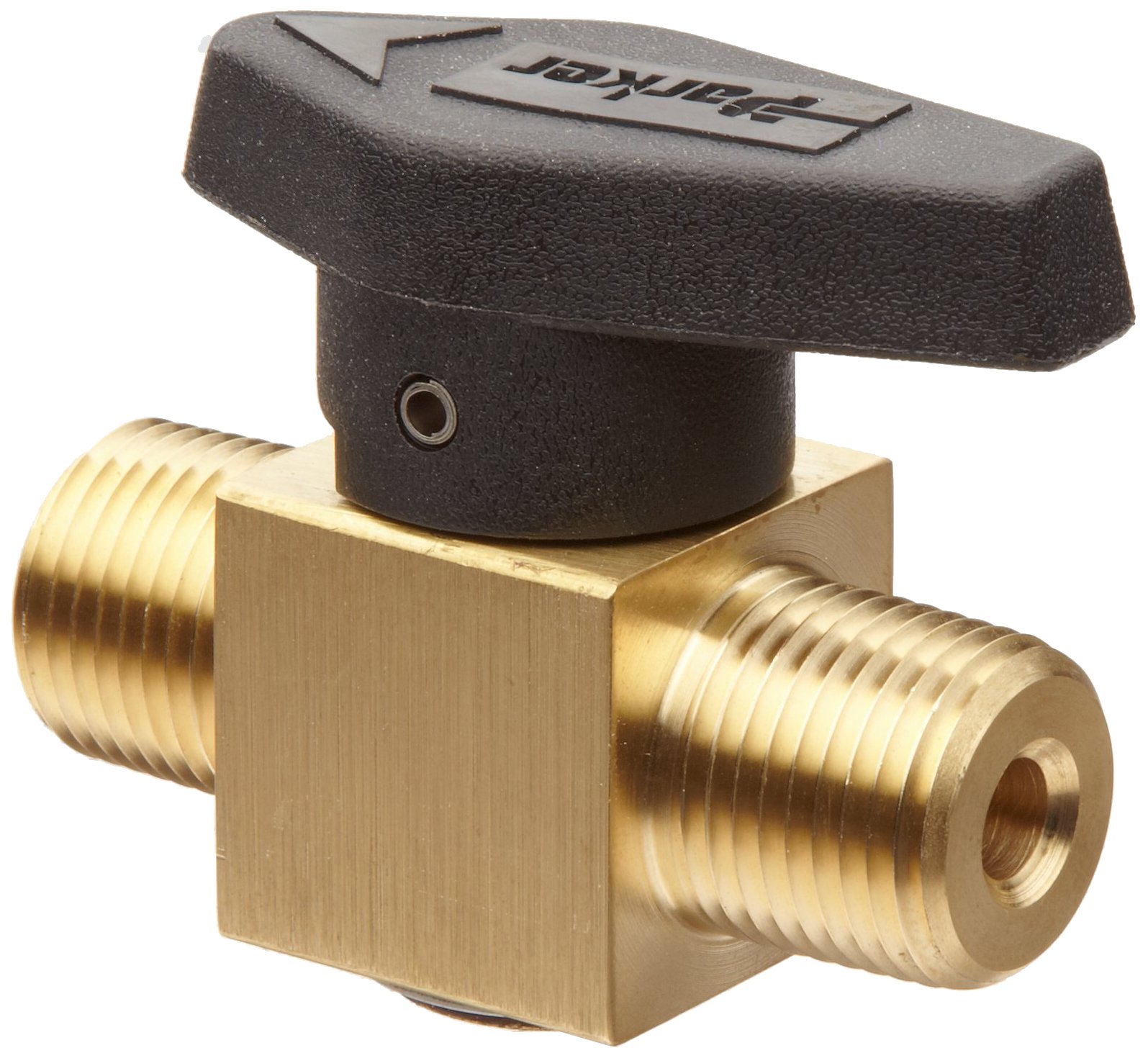

Parker 2M-PR4-VT-B Brass Plug Valve, 1/8" NPT Male
Be the first to review this item
ASIN B005OBYCIG
Specifications for this item
- Brand Name
- Parker
- Manufacturer Series Number
- PR
- Material Type
- Brass
- Maximum Pressure
- 3000 PSI
- Maximum Temperature
- 400 Degrees Fahrenheit
- Part Number
- 2M-PR4-VT-B
- Pipe Size
- 1/8"
- Pkg Qty
- 1
- Style Name
- Threaded
- System of Measurement
- Inch
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- Patented blow out resistant seat design
- Quarter turn operation
- Reliable simple design
- Straight through flow
- Brass construction
Package Details
Shipping Weight:
0.2 pounds
Package Size:
3.5 x 2.6 x 1.8 inches
Product Description
Parker PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact attractive package. The patented blow-out resistant seat design offers reliable sealing technology at all operating pressures. In addition to on-off actuation, the plug design allows forward flow throttling. The pressure balanced atmospheric seals are backed by PTFE rings to enhance their performance and increase cycle life. Pressures up to 3000 psig (207 bar) CWP. Fluorocarbon rubber seats and seals. Low operating torque. Minimum pressure drop. Throttling capability. Positive handle stops. Color coded fracture resistant nylon handles with directional flow indication. Easy to service. 100 percent factory tested. ANSI/ASME B1.20.1 external pipe threads.
