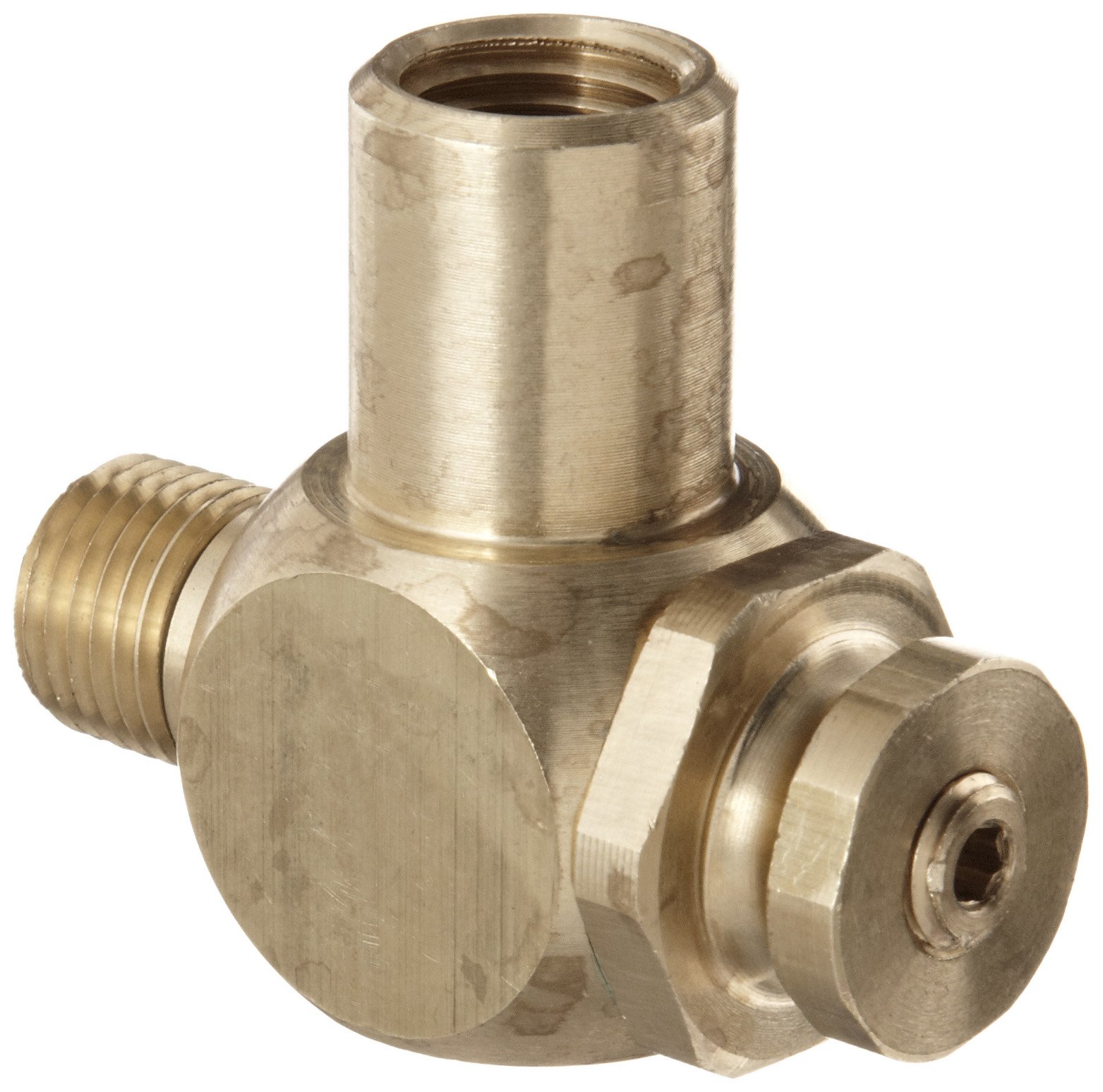

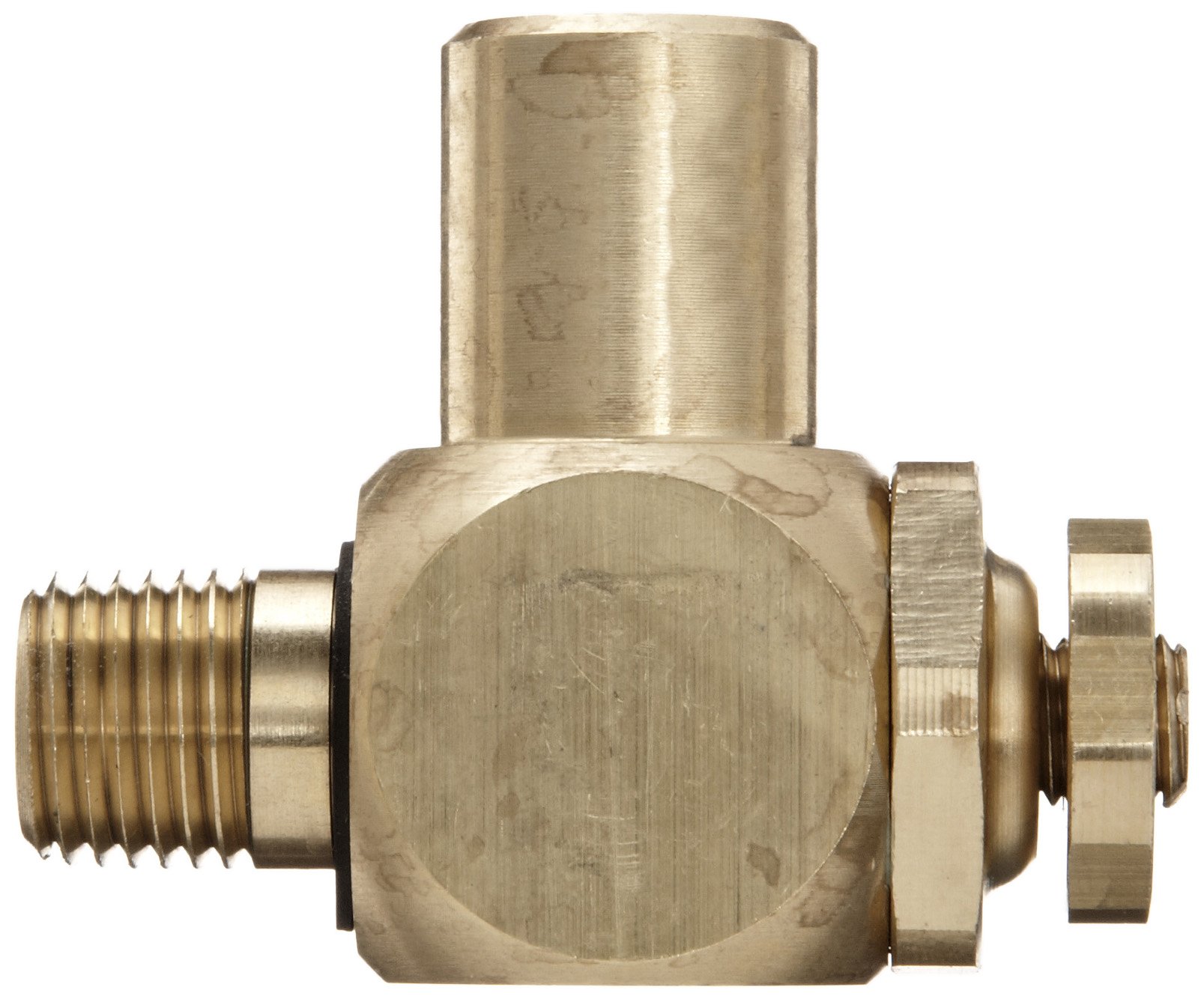

Parker 032510250 3251 Series Brass Right Angle Flow Control Valves, 1/4" NPT Male x Female, 125 psi

Be the first to review this item

ASIN B003Q6CB2U

Specifications for this item
Overall Height
1.99  inches
Part Number
032510250
Brand Name
Parker
Style Name
Threaded
Number of Items
1
Material Type
Brass
Size Name
1/4"
Manufacturer Series Number
3251 Series
Upper Temperature Range
140  Degrees Fahrenheit
Maximum Pressure
125  PSI
Connector Type
NPT Male x NPT Female
UNSPSC Code
40141609
System of Measurement
Inch
Overall Length
1.40  inches
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 3 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Brass right angle flow control valve
  • 125psi Maximum operating pressure
  • 0 to 140 degree F Operating temperature
  • 0.75 Cv adjusted flow and 0.68 Cv free flow
  • 1/4" NPT Male x Female port size

Package Details

Shipping Weight: 0.3 pounds
Package Size: 3 x 2 x 1 inches

Product Description

The Right Angle Flow Control is an ideal solution to cylinder speed control where space is at a premium. Costly fittings, connections and piping expenses can be eliminated because the valve can rotate 360 degree, the piping alignment can be in any direction. Brass and acetal plunger, buna N seals.
