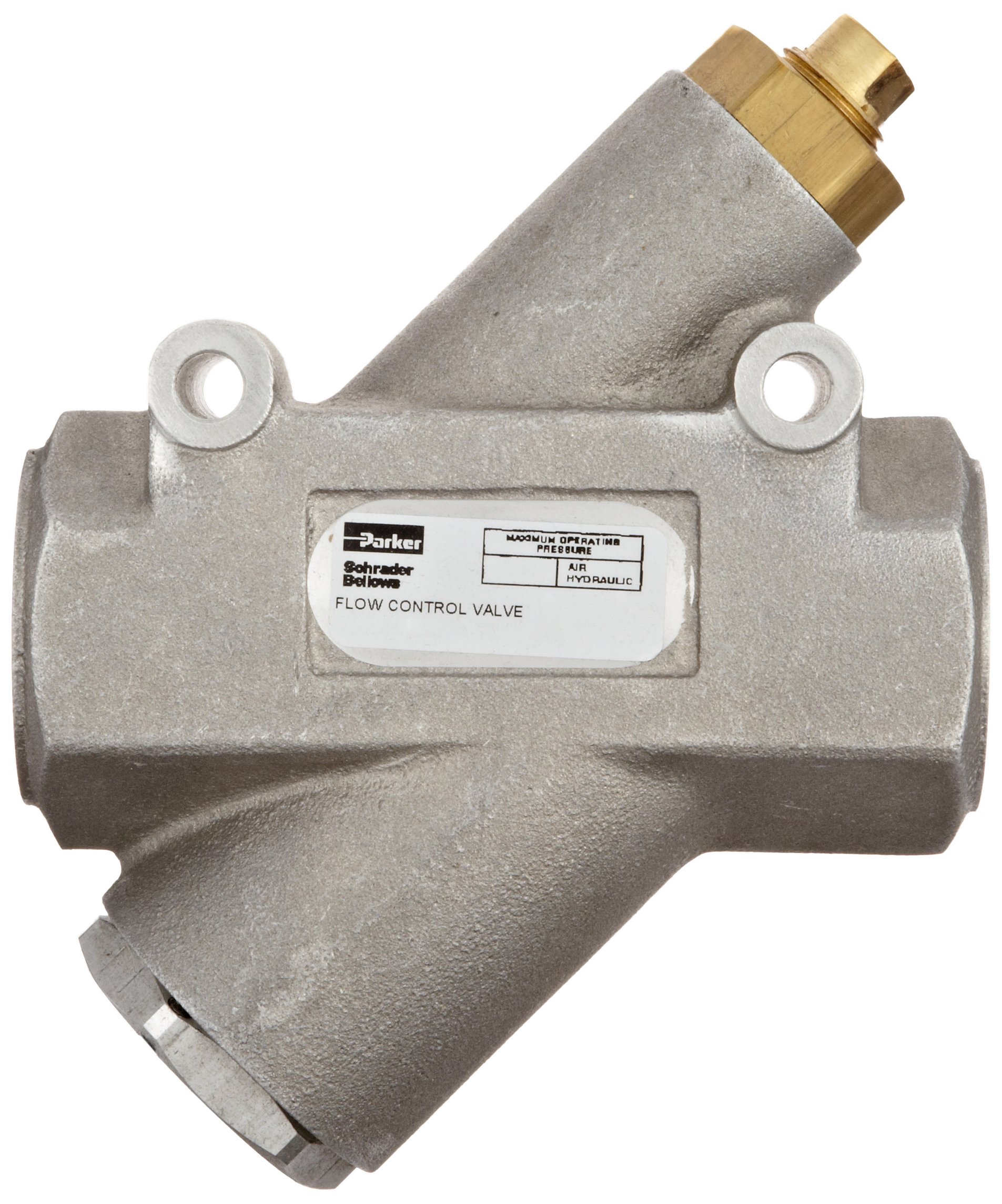

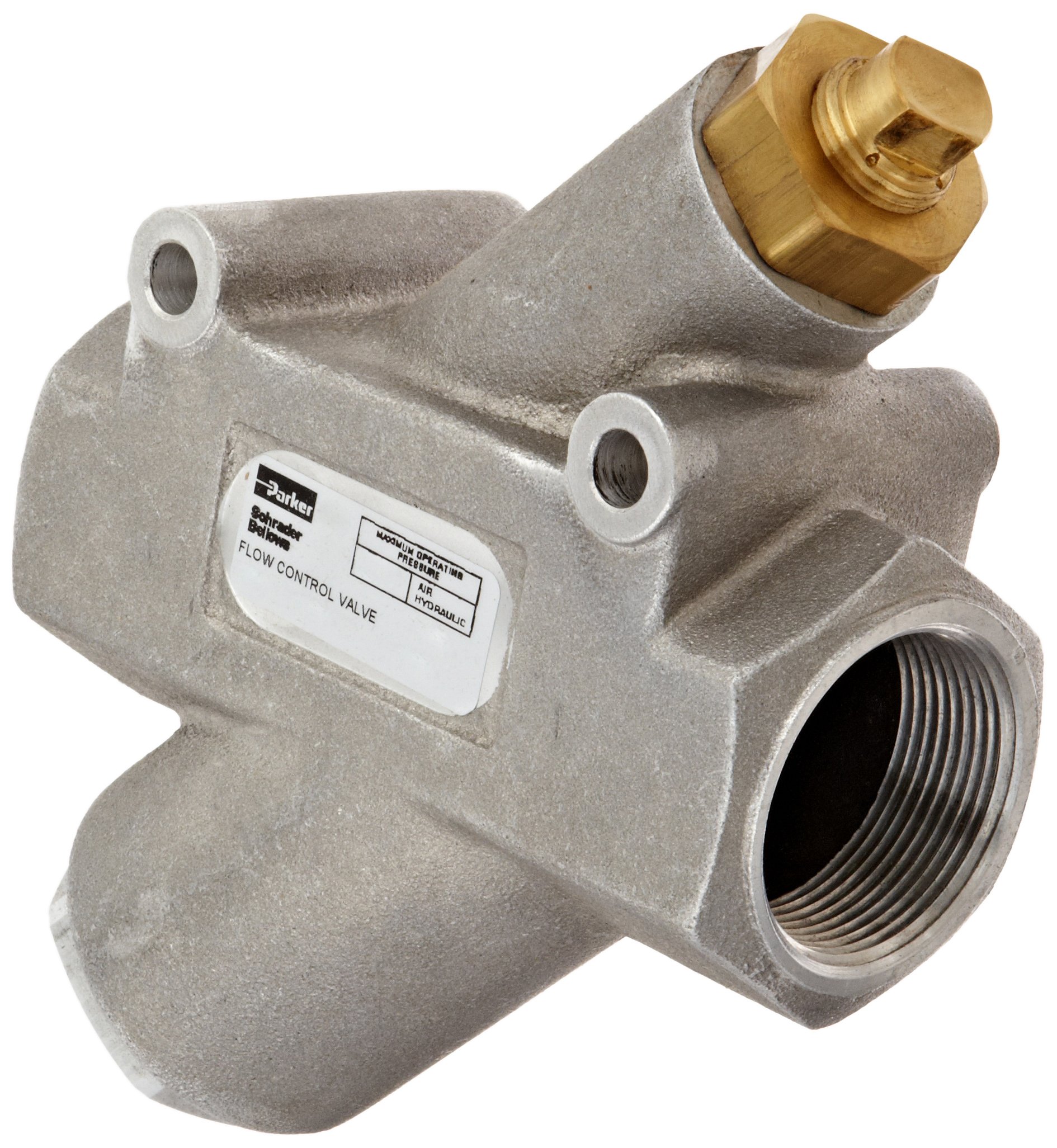

Parker 032501500 3250 Series Aluminum Inline Flow Control Valve, 1-1/2" NPTF, 250 psi, Standard Adjustment
Be the first to review this item
ASIN B003Q6CB20
Specifications for this item
- Brand Name
- Parker
- Connector Type
- NPTF
- Flow Rate
- 1800 Cubic Feet Per Minute
- LowerTemperature Range
- -40 Degrees Fahrenheit
- Manufacturer Series Number
- 3250 Series
- Material Type
- Aluminum
- Maximum Pressure
- 250 PSI
- Mfr Part #
- 032501500
- Pkg Qty
- 1
- Size Name
- 1-1/2"
- Style Name
- Threaded
- System of Measurement
- Inch
- Upper Temperature Range
- 180 Degrees Fahrenheit
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 12 hours 23 minutes and choose One-Day Shipping at checkout.
Key Features
- Cast Aluminum flow control valve
- 250psi Maximum operating pressure
- -40 to 180 degree F Operating temperature
- Needle open 1800 scfm maximum flow and 17.5 Cv
- 1-1/2" NPTF port size
Package Details
Shipping Weight:
4.1 pounds
Package Size:
8.1 x 6.4 x 4.9 inches
Product Description
These extra large flow control valves have been developed to provide effective flow settings for large diameter cylinders and for other similar air applications. Each valve has a fi ne screw adjustment allowing precise settings which are secured by a sturdy lock nut. Brass, aluminum internal components, buna N, urethane seals, stainless steel spring. 1800 At 100 PSIG inlet pressure with full pressure drop.
