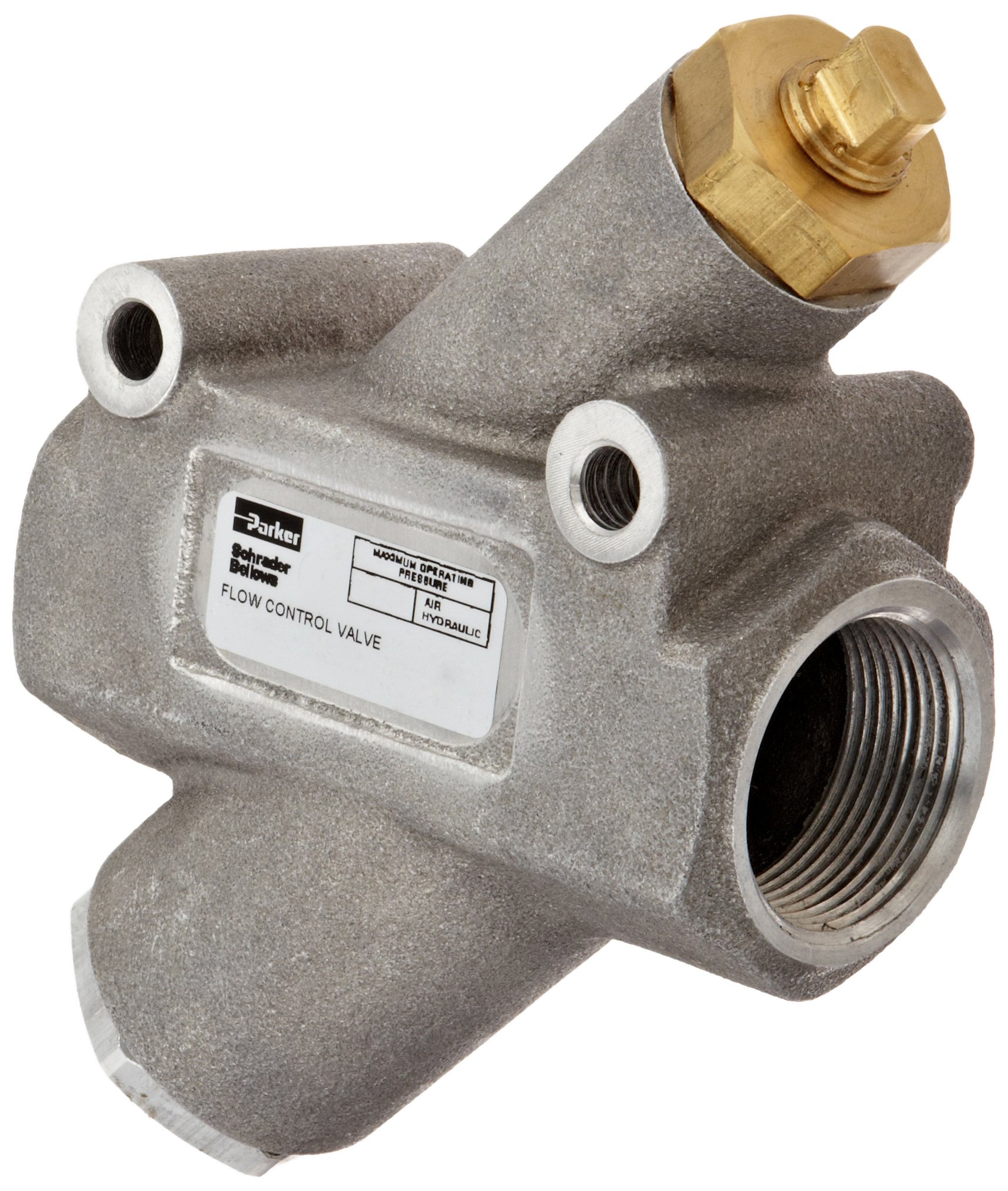

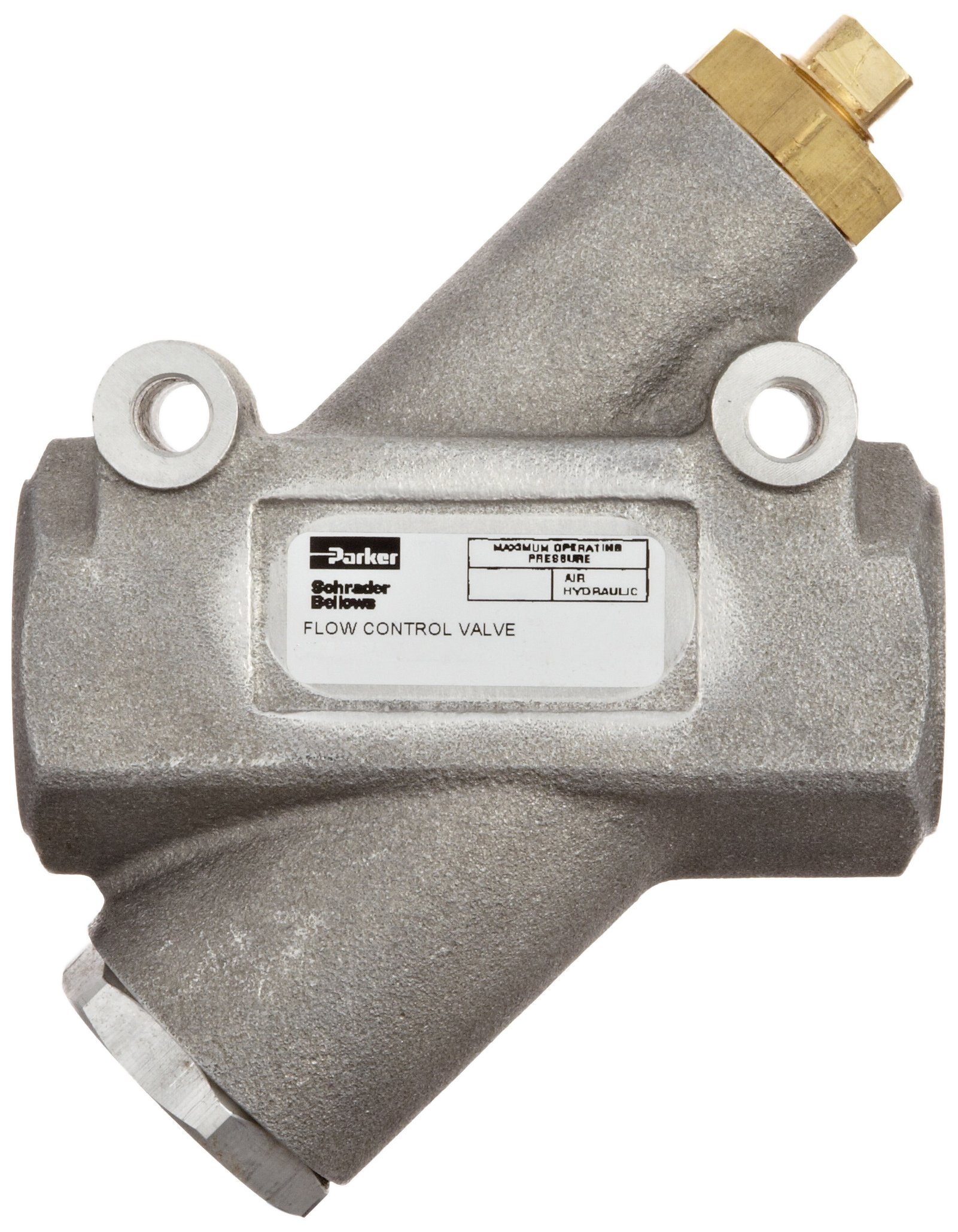

Parker 032501250 3250 Series Aluminum Inline Flow Control Valve, 1-1/4" NPTF, 250 psi, Standard Adjustment

Be the first to review this item

ASIN B003Q6CB1Q

Specifications for this item
Pressure Flow Rate
1200  Cubic Feet Per Minute
Part Number
032501250
Brand Name
Parker
Style Name
Threaded
Number of Items
1
Material Type
Aluminum
Size Name
1-1/4"
Manufacturer Series Number
3250 Series
Upper Temperature Range
180  Degrees Fahrenheit
Maximum Pressure
250  PSI
UNSPSC Code
40141609
Connector Type
NPTF
System of Measurement
Inch
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 17 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Cast Aluminum flow control valve
  • 250psi Maximum operating pressure
  • -40 to 180 degree F Operating temperature
  • Needle open 1200 scfm maximum flow and 13.8 Cv
  • 1-1/4" NPTF port size

Package Details

Shipping Weight: 2.85 pounds
Package Size: 6.9 x 5.2 x 3.8 inches

Product Description

These extra large flow control valves have been developed to provide effective flow settings for large diameter cylinders and for other similar air applications. Each valve has a fi ne screw adjustment allowing precise settings which are secured by a sturdy lock nut. Brass, aluminum internal components, buna N, urethane seals, stainless steel spring. 1200 At 100 PSIG inlet pressure with full pressure drop.
