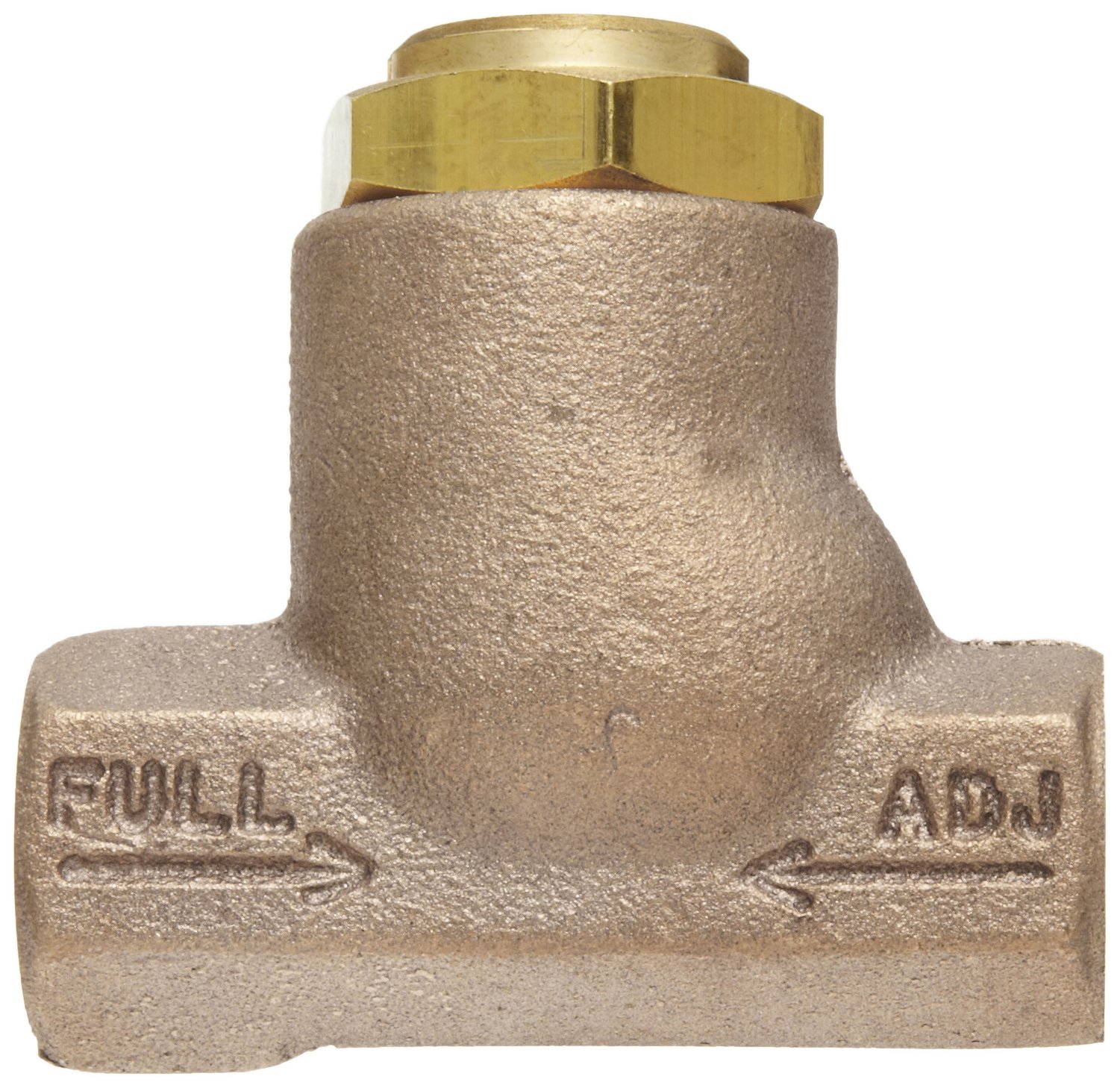

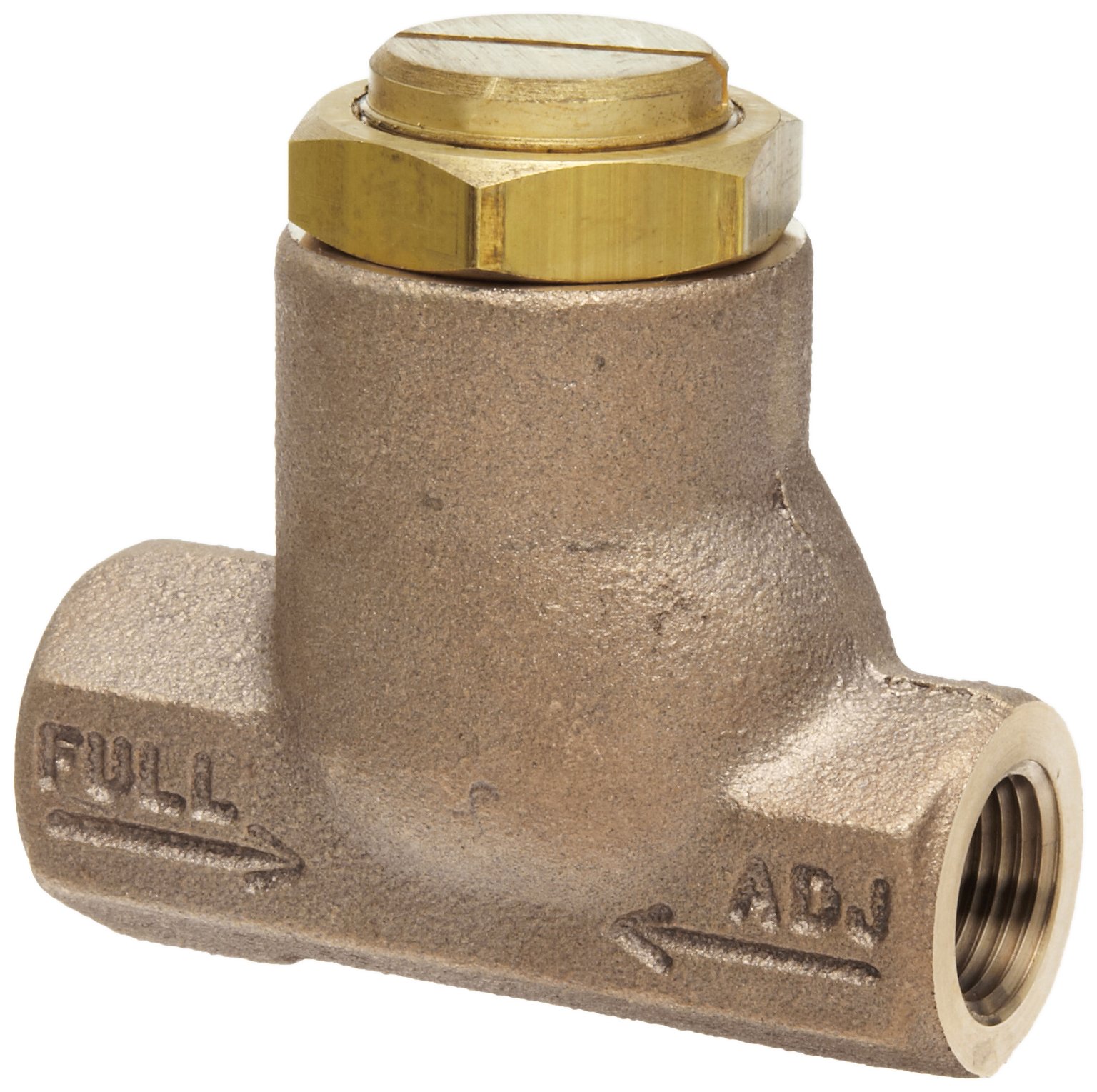

Parker 032500319 3250 Series Brass Inline Flow Control Valve, 3/8" NPTF, 250 psi, Standard Adjustment
Be the first to review this item
ASIN B003Q6CB02
Specifications for this item
- Brand Name
- Parker
- Connector Type
- NPTF
- Flow Rate
- 220 Cubic Feet Per Minute
- LowerTemperature Range
- 0 Degrees Fahrenheit
- Manufacturer Series Number
- 3250 Series
- Material Type
- Brass
- Maximum Pressure
- 250 PSI
- Mfr Part #
- 032500319
- Overall Length
- 2.66 inches
- Pkg Qty
- 1
- Size Name
- 3/8"
- Style Name
- Threaded
- System of Measurement
- Inch
- Upper Temperature Range
- 180 Degrees Fahrenheit
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, May 23? Order in-stock items in the next 6 hours 13 minutes and choose One-Day Shipping at checkout.
Key Features
- Brass flow control valve
- 250psi Maximum operating pressure
- 0 to 180 degree F Operating temperature
- 220 scfm Maximum flow in metered direction and 205 maximum flow in free flow direction
- 3/8" NPTF port size
Package Details
Shipping Weight:
1.65 pounds
Package Size:
5.9 x 3.6 x 2 inches
Product Description
The "3250" Series Flow Control Valves are specifically designed to accurately meter the flow of air in one direction and allow free flow in the opposite direction. The "3250" Series Flow Control Valves are also suitable for low pressure hydraulic service. Brass, stainless steel internal components, buna N seals. 220 scfm Maximum flow in metered direction and 205 maximum flow in free flow direction.
