PanaVise 203 Pv Jr. Vise Head With 5/8 Inch Shaft For 300 Series Bases

Be the first to review this item

ASIN B000SQWPY0

Specifications for this item
Number of Items
1
Part Number
203
Item Weight
0.5 pounds
UPC
729315203004
Brand Name
Panavise
EAN
0729315203004
UNSPSC Code
27112102

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 10 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Easy-to-use single knob controls head movement through 3-planes: 210 degree Tilt, 360 Turn & 360 Rotation
  • Fine/coarse adjusting knob controls jaw pressure for delicate work
  • Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic
  • Continuous heat tolerance to 350 F (177 C), intermittent heat up to 450 F (204 C)
  • Limited Lifetime Warranty!

Package Details

Shipping Weight: 0.75 pounds
Package Size: 7.3 x 4.8 x 2.2 inches

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime Warranty! Introducing the Panavise 203 PV JR. VISE HEAD with 5/8-Inch SHAFT FOR 300 SERIES BASES, our most popular Vise Head for arts and crafts, model making, electronics and other small projects! We've adapted a PV Jr. Head to fit all 300 series Bases. Now you can add all the popular features of a PV.Jr. to a larger 300 series Base. Features fine and coarse adjusting knob controls jaw pressure. Jaws feature horizontal grooves perfect for holding small tubes, rods, or small circuit boards firmly in place and are made of reinforced thermal composite plastic, continuous heat tolerance to 350 F (177 C), intermittent heat up to 450 F (204 C). Neoprene Jaw Pads (Panavise 204) are available for holding delicate items. Jaws are 2" (50.8mm) tall, 1" (25.4mm) wide and open to 2.875" (73mm). Height: 3.75" (95.2mm), Weight: 0.4 lbs. (0.2kg) Limited Lifetime Warranty!

From the Manufacturer

The PanaVise 203 PV Jr. vise head is a versatile and lightweight vise head designed for arts and crafts, jewelry and model making, electronics, and other small projects. The 203 PV Jr. vise head is compatible with all PanaVise 300 series work-holding tool bases, has fine and coarse clamping abilities, grooved jaws for easy holding power, and heat-tolerant construction.

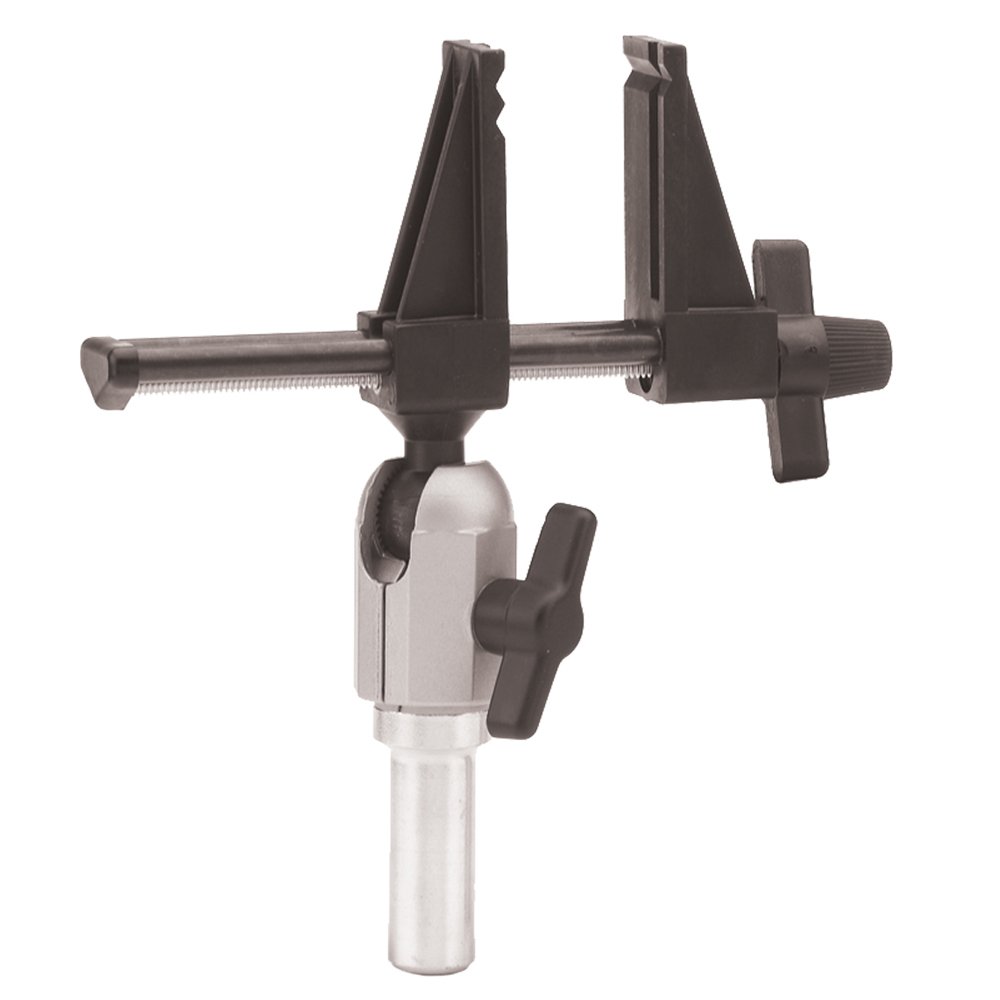

The PanaVise 203 PV Jr. vise head
The versatile and lightweight vise head designed for a wide range of uses.
View larger.
The PanaVise 203 PV Jr. vise head used with the 380 Vacuum Base
Compatible with all PanaVise 300 series bases (base sold separately).
View larger.
Versatile Head Design Compatible with All 300 Series Bases

The 203 PV Jr. vise head is a work-holding tool accessory designed for versatility. Its 5/8" (15.9 mm) post diameter is compatible with the PanaVise 300 series product line of bases. The 203 PV Jr. vise head has jaws composed of reinforced thermal composite plastic that are 2" (50.8 mm) tall x 1" (25.4 mm) wide, and open to 2-7/8" (73 mm), and are suitable for holding small tubes, rods or small circuit boards. The grooves along the jaws' inner edges are designed for dependable holding power, while the fine/coarse adjusting knob controls provide jaw pressure for delicate work. When combined with a compatible base, the 203 PV Jr. vise head is suitable for small projects such as arts and crafts, jewelry and model making, electronics. Becasue vise uses such as circuit board wiring and jewelry making involve soldering, the vise head assembly of the PanaVise 203 PV Jr. is highly heat resistant, with continuous heat tolerance to 350 degrees F (177 degrees C) and intermittent heat tolerance to 450 degrees F (204 degrees C).

Key Features
  • Vise head accessory compatible with PanaVise 300 series bases
  • Fine/coarse adjusting knob controls jaw pressure for delicate work
  • Grooved jaws hold small objects and are made of reinforced thermal composite plastic
  • Neoprene jaw pads are available for holding delicate items
  • Durable, heat-tolerant vise head assembly construction
Specifications
  • Height: 3-3/4" (95.2 mm)
  • Weight: 0.4 lb. (0.2 kg)
  • Post diameter: 5/8" (15.9 mm)
  • Continuous heat tolerance: Up to 350 degrees F (177 degrees C)
  • Intermittent heat tolerance: Up to 450 degrees F (204 degrees C)
  • Vise opening: up to 2-7/8" (73 mm)
  • Jaw width: 1" (25.4 mm)
  • Jaw height: 2" (50.8 mm)
What's in the Box?
  • PanaVise 203 PV Jr. vise head
  • User's manual and warranty information
Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."
