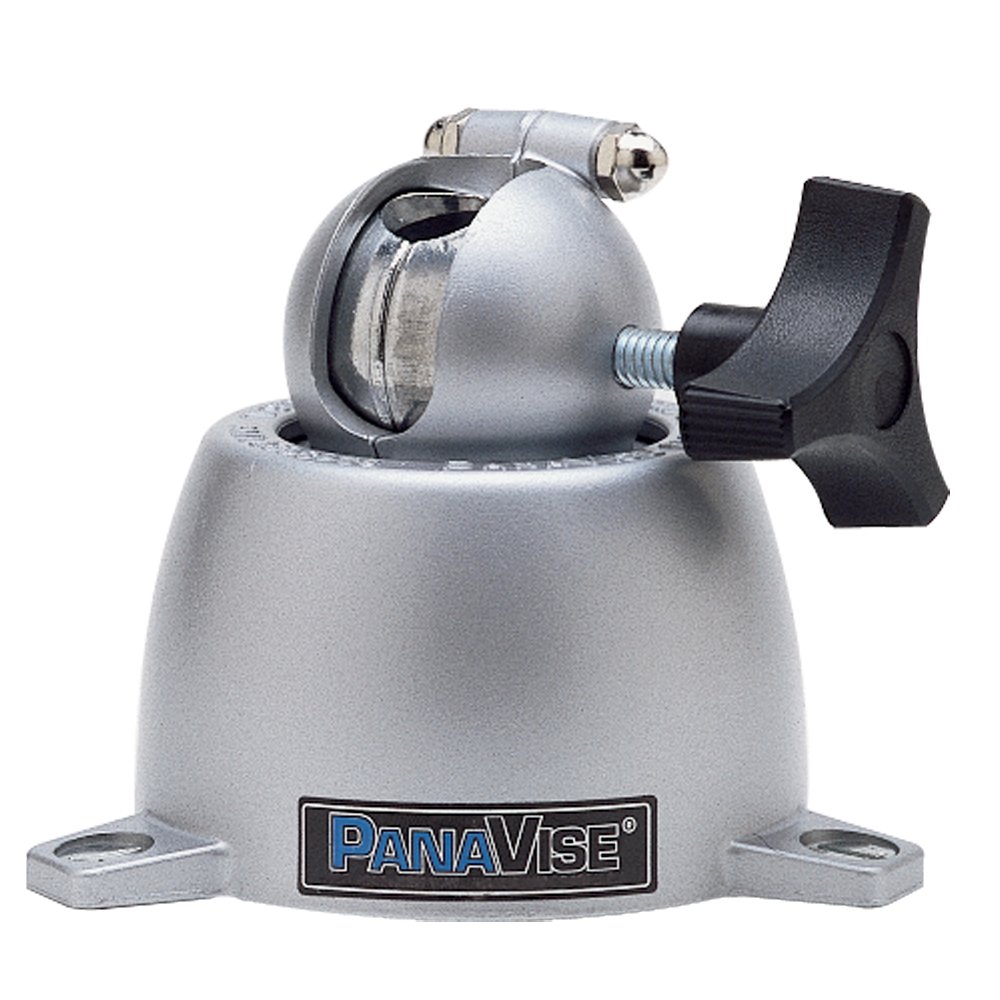

PanaVise 300 Standard Base

Be the first to review this item

ASIN B000B61DMW

Specifications for this item
Number of Items
1
Part Number
300
UPC
729315300000
Brand Name
Panavise
EAN
0729315300000
UNSPSC Code
27112102

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 10 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Accepts all 300 series Heads and the PV Jr. 203 Head or any 5/8" (15.9mm) diameter shaft
  • Create a versatile work holding system by selecting two or three different Heads
  • Single control knob and exclusive split-ball locks head firmly in place
  • Limited Lifetime Warranty!

Package Details

Shipping Weight: 1.75 pounds
Package Size: 6.4 x 4.6 x 4.4 inches

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime Warranty! Introducing the Panavise 300 STANDARD BASE, our most popular base! Accepts all 300 series Heads and the PV Jr. 203 Head or any 5/8" (15.9mm) diameter shaft. Create a versatile work holding system by selecting two or three different Heads! Single control knob and exclusive split-ball locks head firmly in place. Base features 4.3125" (109.5mm) bolt circle countersunk for three 1/4" (6.3mm) flat-head screws (not included). Height: 3.75" (95.2mm), Weight: 1.4 lbs. (0.6kg). Limited Lifetime Warranty!

From the Manufacturer

The PanaVise 300 standard base is a work-holding tool base designed for versatility. The PanaVise 300 standard base is compatible with all the heads in the PanaVise 300 series product line, as well as many accessories. This base utilizes a "split-ball" feature which allows for head movement through three separate planes (tilt, turn and rotate) controlled by a single-load control knob. It can be mounted with the 1/4" (6.3 mm) countersunk screw holes in its bolt circle or can be used stand-alone.

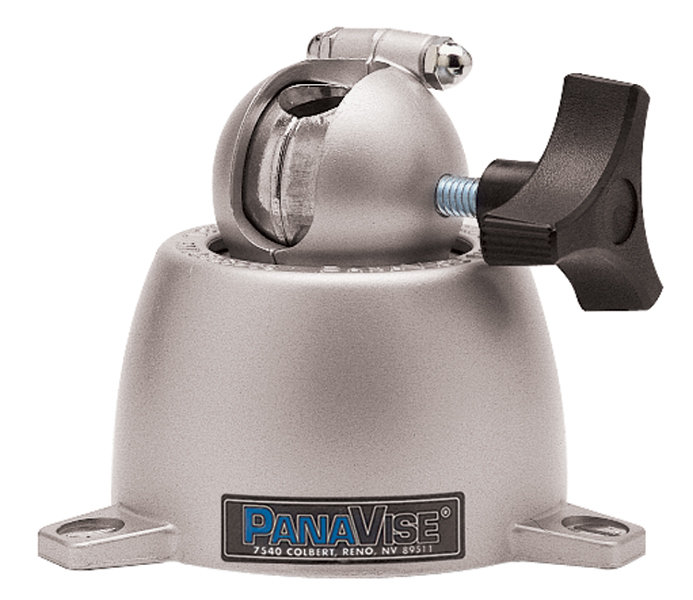

The PanaVise 300 standard base
Low-profile base designed for vise applications close to bench surfaces.
View larger.
Versatile Base to Build Your System On

The PanaVise 300 standard base is 3-3/4" (95.2 mm) tall, weighs 1.4 lb. (0.6 kg) and has a base diameter of 4-5/16" (109.5 mm). The base combines with one or more of PanaVise's compatible heads (sold separately) to create a work-holding tool suitable for most any hobbies, electronic repair or assembly, or small home repairs. The bolt circle at the bottom of the base contains three pre-drilled holes that are countersunk for use with 1/4" (6.3 mm) flat head screws (sold separately) to secure the base to a work surface. Alternatively, the 1.4 lb. (0.6 kg) weight of the 300 standard base makes it suitable for lighter work-holding tool applications where mounting of the base is not required or desired.

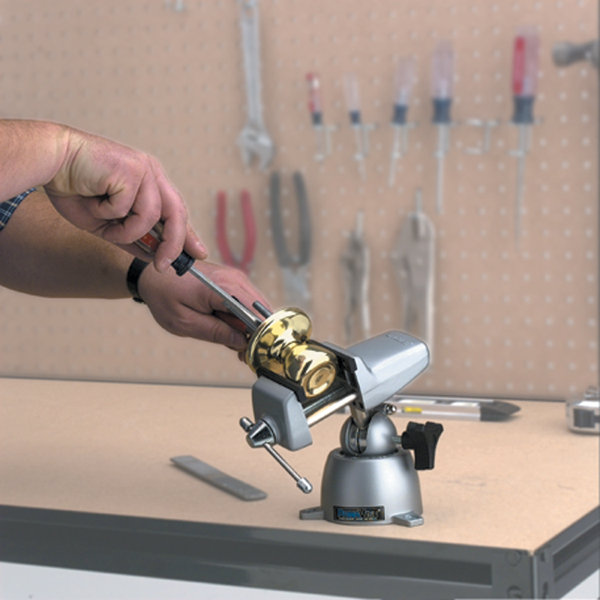

Using the panavise 300 standard base along with the 303 standard head to repair a door knob
Convenient adjustability across three separate planes
(vise head sold separately).
View larger.

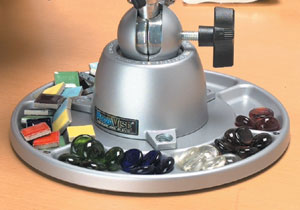

The PanaVise 300 standard base combined with the 312 parts tray mount
Compatible with all 300 series heads and many accessories (base mount sold separately).
View larger.
Tilt, Turn and Rotation Functionality

The 300 standard base utilizes PanaVise single-knob "split-ball" functionality at the point of contact with installed vise heads. Once a vise head is installed and an item is secured, the split-ball system allows for maneuvering the item along three separate planes. The mobility range of the model 300's split-ball system is a 90-degree tilt to the side, along with either a rotation at a set angle or level turn range of 360 degrees. The mobility range allows a user to rearrange work items into virtually any position, limiting the need to adjust the overall position of the vise, or the item within the vise.

Multiple Vise Head Options

The PanaVise 300 standard base is suitable for a variety of applications and is compatible with a range of vise heads. The base works with all PanaVise 300 series vise heads, as well as the PV Jr. model 203 head, or any head tool accessory with a 5/8" diameter shaft.

Key Features
  • Versatile general purpose work-holding tool base suitable for small-to-medium-sized projects such as arts and crafts, model making, electronics, jewelry making, and home repairs
  • "Split-ball" feature controls for head movement through three separate planes
  • Single load control knob locks head firmly in place
  • Compatible with all 300 series vise heads, or any tool with a 5/8" diameter shaft (sold separately)
  • Can be mounted to work bench or base mount with countersunk bolt circle
Specifications
  • Height: 3-3/4" (95.2 mm)
  • Weight: 1.4 lb. (0.6 kg)
  • Diameter: 4-5/16" (109.5 mm)
  • 3-plane adjustability
    • Rotation: 360 degrees
    • Turn: 360 degrees
    • Tilt: 90 degrees
  • Shaft diameter accepted: 5/8" (15.9 mm)
  • Bolt circle countersunk for three 1/4" flathead screws
What's in the Box?
  • PanaVise 300 standard base
  • User's manual and warranty information
Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."
