PanaVise 350 Multi-Purpose Work Center

Be the first to review this item

ASIN B00011QA0M

Specifications for this item
Number of Items
1
Catalog Number
350
Part Number
350
UPC
729315350005
Brand Name
Panavise
EAN
0729315350005
List price:
$99.99
Price:
$79.54
You save:
$20.45 (20%)
Quantity:

In Stock (60)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 23 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Self-centering, extra-wide opening jaws open a full 9-Inch (228.6mm) and hold heavier objects by centering weight over base
  • Parts Tray Base Mount adds stability [8.5 (215.9mm) diameter] and has six individual trays to neatly hold small parts and tools
  • Ribbed, neoprene jaw pads are 1.875 (47.6mm) high x 1.5 (38.1mm) wide and provide a sure grip
  • Height: 7.875 (200mm), Weight: 5.0 lbs. (2.3kg)
  • Limited Lifetime Warranty!

Package Details

Shipping Weight: 5.8 pounds
Package Size: 9.3 x 9.2 x 6.6 inches

Product Description

From the Manufacturer

The PanaVise 350 multipurpose work center is a compact work-holding tool bundle designed to hold larger, heavier objects. The 350 multipurpose work center features a head that opens up to 9", removable neoprene jaw pads, and a tray mount with six built-in parts wells. The components are mounted around a PanaVise 300 standard base, which features compatibility with additional tool and vise head options, and PanaVise "split-ball" functionality utilizing single-knob controls for head movement through 3 separate planes (tilt, turn and rotate).

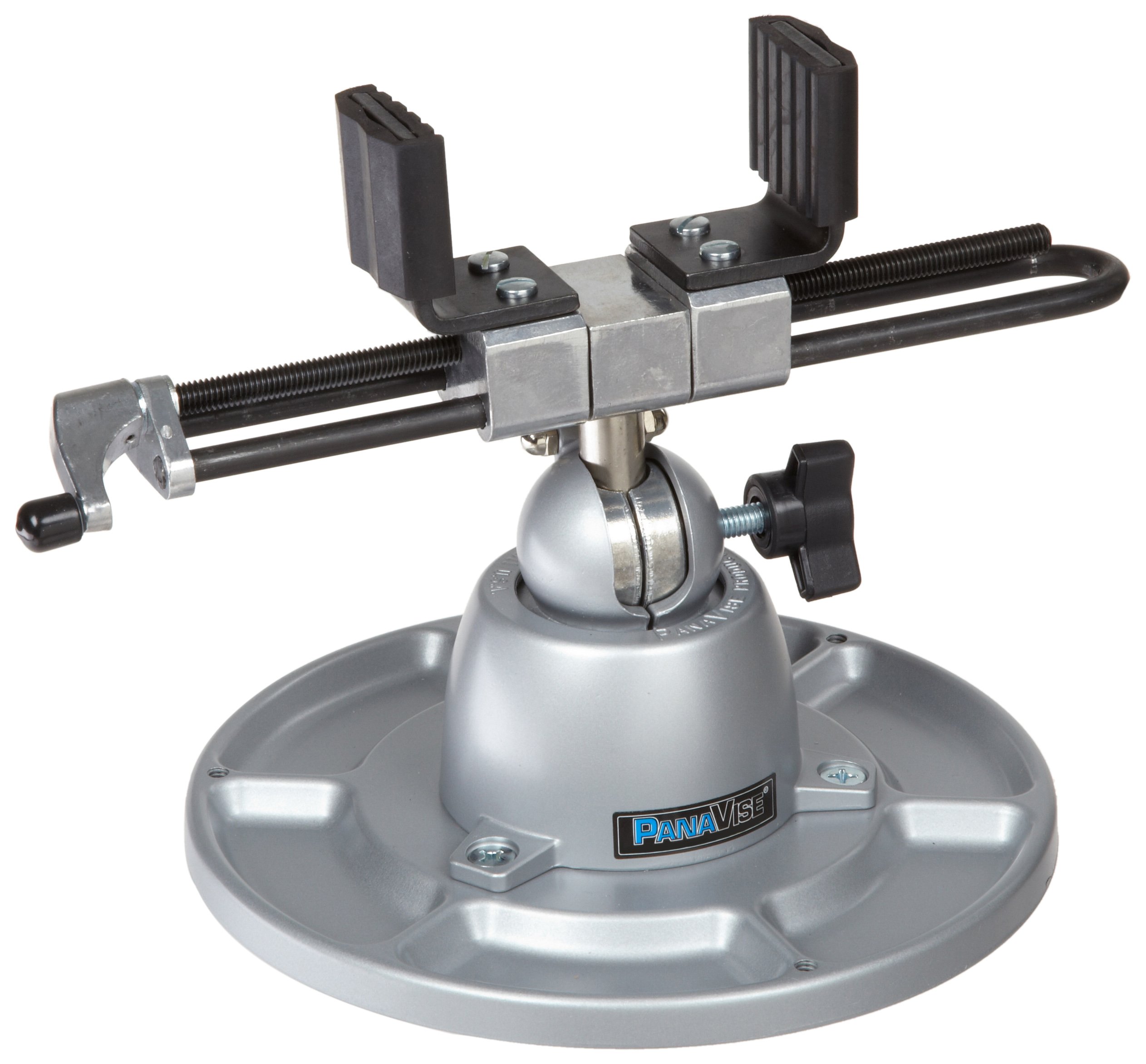

The PanaVise 350 multi-purpose work center
The all-in-one compact work station for holding larger, heavier objects.
View larger.
The Compact Work Station for Larger, Heavier Objects

The PanaVise 350 multipurpose work center is made up of three PanaVise components: the 376 extra-wide opening vise head, the 300 standard base and the 312 parts tray mount. The 376 vise head opens up to 9", and has "double-action" jaws. This configuration allows for fast opening and closing, as both sides of the jaws move simultaneously when the vise is cranked. The jaws self-center, which ensures a good fit against items, and allows the contact points of jaws to be reversed, providing 'zero' closure when a user needs to secure very small items. The unit ships with reversible and removable 1-7/8" neoprene jaw pads. One side of the pads has multiple grooves designed for flat surfaces, while the other has a wide "V" groove to hold round objects. The 300 standard base connects the 376 head component to the 312 part tray mount. Pre-drilled tapped holes in the aluminum 312 parts tray mount allow it to be attached to the 300 standard base. The 4-5/16" tray diameter and weight (1.4 lbs.) add to the overall stability. The 312 parts tray mount contains six integrated part wells with rounded edges that ease parts grasping. The tray also contains three pre-drilled and tapped 1/4"-20 holes to secure additional accessories.

Tilt, Turn and Rotate Functionality

The PanaVise PanaVise 350 multipurpose work center utilizes PanaVise single knob "split-ball" functionality at the point of contact between its base and vise head attachment. Once an item is secured within the head, the base's the split-ball adjustment system allows for maneuvering along three separate planes. The complete mobility range is a 90-degree tilt to the side, along with either an angled rotation or a level turn range of 360 degrees. This range of mobility allows a user to rearrange a work item into any position, and eliminates the need to adjust the overall position of the work station.

The 350 multi-purpose work center used for crafting an image on a cross-section of a tree trunk
A 9" jaw opening, reversible jaw contact points and adjustability along three planes
(soldering iron holder not included).
View larger.

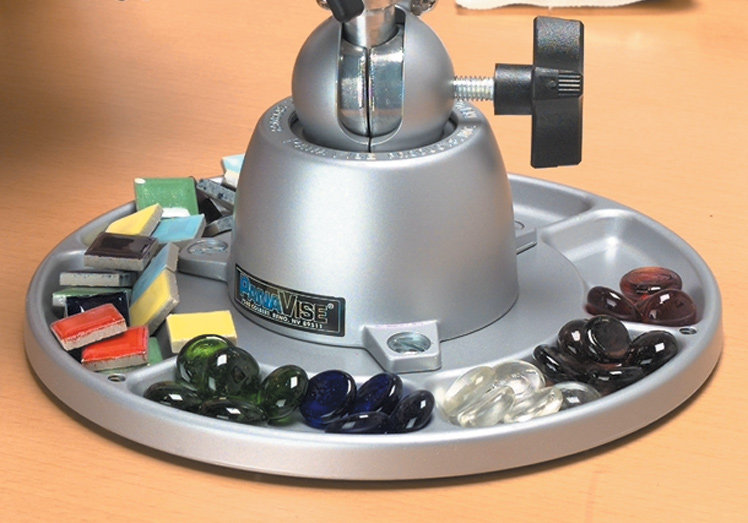

The 312 parts tray base mount included with the 350 multi-purpose work center filled with items
The parts tray base mount ensures that small items are accessible.
View larger.
Additional Head Options

Although the PanaVise 350 multipurpose work center is intended for use with the included 376 extra wide opening vise head attachment, it is also compatible with a range of other vise head accessories. The base works with all PanaVise 300 series vise heads, as well as the PV Jr. model 203 head, or any other tool accessory with a 5/8" diameter shaft.

Key Features
  • Components designed for holding larger, heavier objects
  • Wide jaws open up to 9"
  • "Double-action" jaws open and close quickly and can be reversed to provide 'zero' closure
  • Reversible neoprene jaw pads are ribbed on one side and have a wide 'V' notch on the other side
  • Load control knob allows adjustment in all three axes (90-degree tilt, 360-degree rotation and 360-degree angled turn)
  • Base accepts all 300 series vise heads, or any 5/8" diameter shaft
  • Parts tray base mount adds stability, has six rounded parts trays, and six non-marring, anti-skid pads
Specifications
Overall 376 Extra Wide Vise Head 300 Standard Base 312 Tray Base Mount
  • Height: 7-7/8" (200 mm)
  • Weight: 5 lbs. (2.3 kg)
  • 3-plane adjustability
    • Rotation: 360 degrees
    • Turn: 360 degrees
    • Tilt: 90 degrees
  • Height: 5-1/4" (133.3 mm)
  • Weight: 1.9 lbs. (0.9 kg)
  • Length: 11-1/2" (292.1 mm)
  • Post/Stem diameter: 5/8" (15.9 mm)
  • Jaw range: 0" to 9" (228.6 mm)
  • Jaw pads: Neoprene; removable; 1-7/8" (47.6 mm) high x 1-1/2" (38.1 mm) wide
  • Height: 3-3/4" (95.2 mm)
  • Weight: 1.4 lbs. (0.6 kg)
  • Diameter: 4-5/16" (109.5 mm)
  • Shaft diameter accepted: 5/8" (15.9 mm)
  • Bolt circle countersunk for three 1/4" flathead screws
  • Height: 3/4" (19.1 mm)
  • Weight: 1.9 lbs. (0.9 kg)
  • Diameter: 8-1/2" (215.9 mm)
  • Part wells: 6
  • Holes: 1/4-20 holes pre-drilled and tapped for base and soldering accessory attachment
  • Nonskid pads: 6
What's in the Box?
  • PanaVise 376 extra-wide opening vise head
  • Two 346 deluxe neoprene jaw pads
  • PanaVise 300 standard base
  • PanaVise 312 parts tray base mount
  • Six non-marring, anti-skid pads
  • User's manual and warranty information
Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime Warranty! Introducing the Panavise 350 MULTI-PURPOSE WORK CENTER, Perfect for home repair or hobby needs! A versatile combination designed for holding larger, heavier objects. Very stable. An exceptional choice for any workbench! Self-centering, extra-wide opening jaws open a full 9-Inch (228.6mm) and hold heavier objects by centering weight over base. Parts Tray Base Mount adds stability [8.5 (215.9mm) diameter] and has six individual trays to neatly hold small parts and tools. Includes six non-marring, anti-skid pads. Ribbed, neoprene jaw pads are 1.875 (47.6mm) high x 1.5 (38.1mm) wide and provide a sure grip; reverse the pads and the wide V holds cylindrical objects Single knob controls head movement through 3-planes: 90 Degree Tilt, 360 Turn & 360 Rotation. Double-action jaws open/close quickly. Can be reversed to provide zero closure. Base accepts all 300 series Heads and any 5/8 (15.9mm) diameter shaft. Height: 7.875 (200mm), Weight: 5.0 lbs. (2.3kg). Limited Lifetime Warranty!
