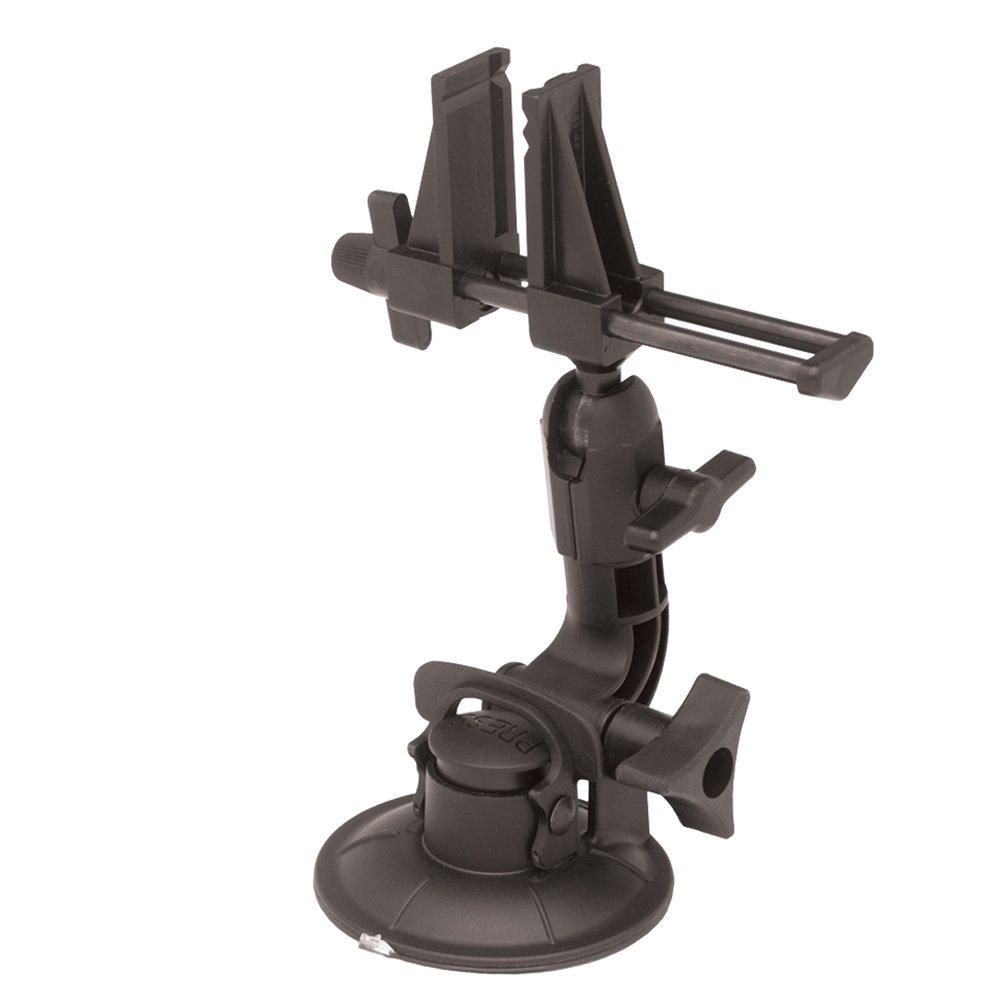

PanaVise 209 Vacuum Base Pv Jr.

Be the first to review this item

ASIN B000CONJUM

Specifications for this item
Number of Items
1
Part Number
209
Item Weight
1 pounds
UPC
729315209006
Brand Name
Panavise
EAN
0729315209006
UNSPSC Code
27112102

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 9 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Attaches securely to any smooth, flat, non-porous surface
  • Features an easy-to-use single knob which, controls head movement through 3-planes: 210 Degree Tilt, 360 Turn and 360 Rotation
  • Fine/coarse adjusting knob controls jaw pressure for delicate work
  • Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic continuous heat tolerance to 350 F (177 C), intermittent heat up to 450 F (204 C)
  • Limited Lifetime Warranty!

Package Details

Shipping Weight: 1.05 pounds
Package Size: 6.5 x 4.6 x 4.4 inches

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime Warranty! Introducing the Panavise 209 VACUUM BASE PV JR., the most PORTABLE precision vise you'll ever own! Ideal for light-duty field repairs, electronics, hobbies and more! Attaches securely to any smooth, flat, non-porous surface. Features an easy-to-use single knob which, controls head movement through 3-planes: 210 Degree Tilt, 360 Turn and 360 Rotation. Fine/coarse adjusting knob controls jaw pressure for delicate work. Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic continuous heat tolerance to 350 F (177 C), intermittent heat up to 450 F (204 C). Jaws are 2" (50.8mm) tall, 1" (25.4mm) wide, and open to 2.875" (73mm). Arm movement is 140; positive indents control movement to prevent flopping and the control knob locks the arm firmly into place. Lever locks vacuum pad into place on any smooth, flat, non-porous surface; lift tab to release vise from surface. Base Diameter: 3.4" (86.4mm), Height: 7.5" (173mm), Weight: 0.8 lbs. (0.4kg). Limited Lifetime Warranty!

From the Manufacturer

The PanaVise 209 vacuum base Pv Jr. is a portable work-holding tool attaches to smooth, flat, non-porous surfaces, and adjusts to a wide range of positions. The PanaVise 209 vacuum base PV Jr. is designed for light-duty uses such as field repairs, electronics, and hobbies. It has a rubber base and lever combination at its surface contact, and features tilt adjustment up to 210-degrees, along with 360-degree turns and rotations, fine and coarse clamping abilities, grooved jaws for easy holding power, and heat-tolerant jaws.

The PanaVise 209 vacuum base PV Jr.
Vacuum-powered portability for light-duty work-holding jobs.
View larger.
Light Duty, Vacuum Powered Portability

The PanaVise 209 vacuum base PV Jr. is a one-piece work-holding tool with specialized elements at its base and head. The rubber base is 3-3/8" (86.4 mm) wide, with an integrated lever along its upper edge. A downward flip of the lever lifts the inner center of the base up when against a nonporous surface, creating a vacuum action powerful enough to secure the holding tool and the item secured within its jaws. The unit can be used on horizontal or vertical planes, and a dual adjustment mechanism on the vise head allows for both coarse and fine adjustments. The holding power of the jaws can be softened with an optional padded accessory for holding extremely delicate items (sold separately). The head element of the PanaVise 209 vacuum base PV Jr. has jaws composed of reinforced thermal composite plastic that are 2" (50.8 mm) tall x 1" (25.4 mm) wide, and open to 2-7/8" (73 mm). The grooves along the jaws' inner edges are designed for dependable holding power of all kinds of items. Because vise applications such as circuit board wiring and jewelry making- involve soldering, the vise head assembly of the PanaVise 209 vacuum base PV Jr. is highly heat resistant, with continuous heat tolerance to 350 degrees F (177 degrees C) and intermittent heat tolerance to 450 degrees F (204 degrees C).

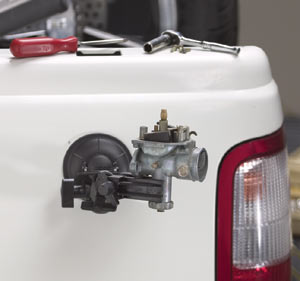

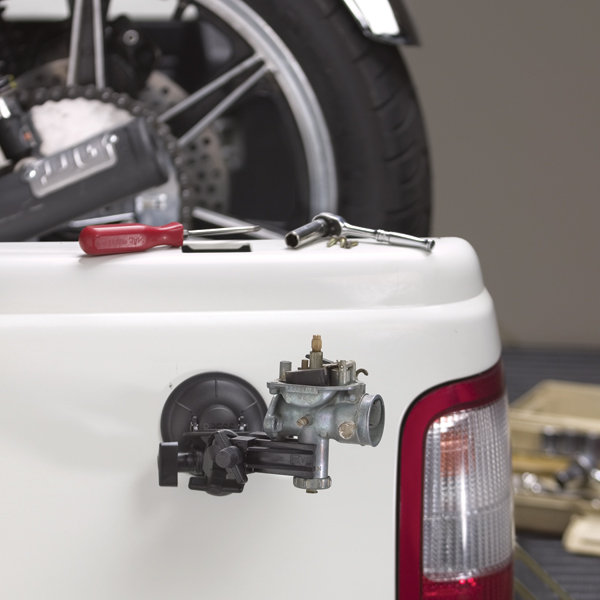

The PanaVise Model 209 vacuum base PV Jr attached to vehicle body
Split-ball joint adjustment allows the vise head to move across three separate planes.
View larger.

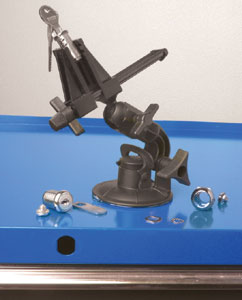

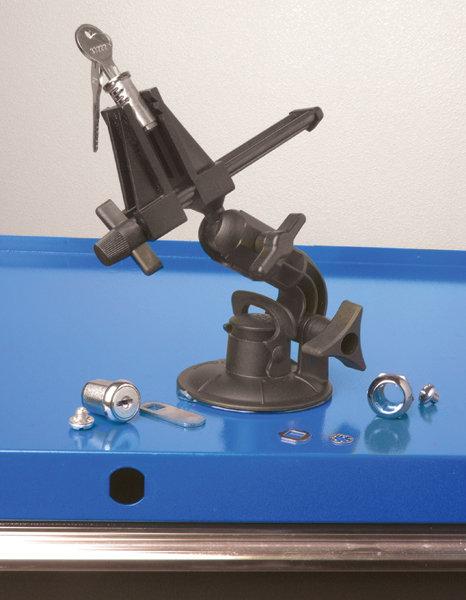

The PanaVise Model 209 vacuum base PV Jr attached to a metal panel to change a lock cylinder
Independent flexibility along the vise arm allows for 140 degrees of additional movement.
View larger.
Tilt, Turn and Rotate Functionality

The PanaVise 209 Vacuum Base PV Jr. utilizes PanaVise single-knob "split-ball" functionality at the point of contact between its base and vise head. Once an item is secured within the head, the split-ball system allows for maneuvering separate planes (tilt, turn and rotate). The complete range of mobility possible with the 209 Vacuum Base PV Jr.'s split-ball system is a 210-degree tilt to the side, along with either an angled rotation, or level turn range of 360 degrees. The PanaVise 209 vacuum base PV Jr. also allows for an added 140 degrees of movement via an adjustment knob at its base. This adjustment utilizes positive indents to prevent "flopping," and locks the arm firmly into place while working on items. The combined range of mobility allows a user to rearrange a work item into virtually any position, and eliminates the need to adjust the overall position of the work station.

Key Features
  • A portable vise suited to small-sized projects such as arts and crafts, model making, electronics, jewelry making and so on
  • Lever locks vacuum pad into place on any smooth, flat, non-porous surface
  • The easy-to-use "split-ball" adjustment element utilizes single-knob controls for head movement through three separate planes
  • Fine/coarse adjusting knob controls jaw pressure for delicate work
  • Grooved jaws securely hold small objects and are made of reinforced thermal composite plastic
  • Durable, heat-tolerant vise head assembly construction
Specifications
  • Height: 7-1/2" (173 mm)
  • Weight: 0.8 lbs. (0.4 kg)
  • Split-ball adjustability
    • Rotation: 360 degrees
    • Turn: 360 degrees
    • Tilt: 210 degrees
  • Independent arm adjustability: 140 degrees
  • Continuous heat tolerance: Up to 350 degrees F (177 degrees C)
  • Intermittent heat tolerance: Up to 450 degrees F (204 degrees C)
  • Vise opening: up to 2-7/8" (73 mm)
  • Jaw width: 1" (25.4 mm)
  • Jaw height: 2" (50.8 mm)
  • Base diameter: 3-3/8" (86.4 mm)
What's in the Box?
  • PanaVise 209 vacuum base PV Jr.
  • User's manual and warranty information
Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."
