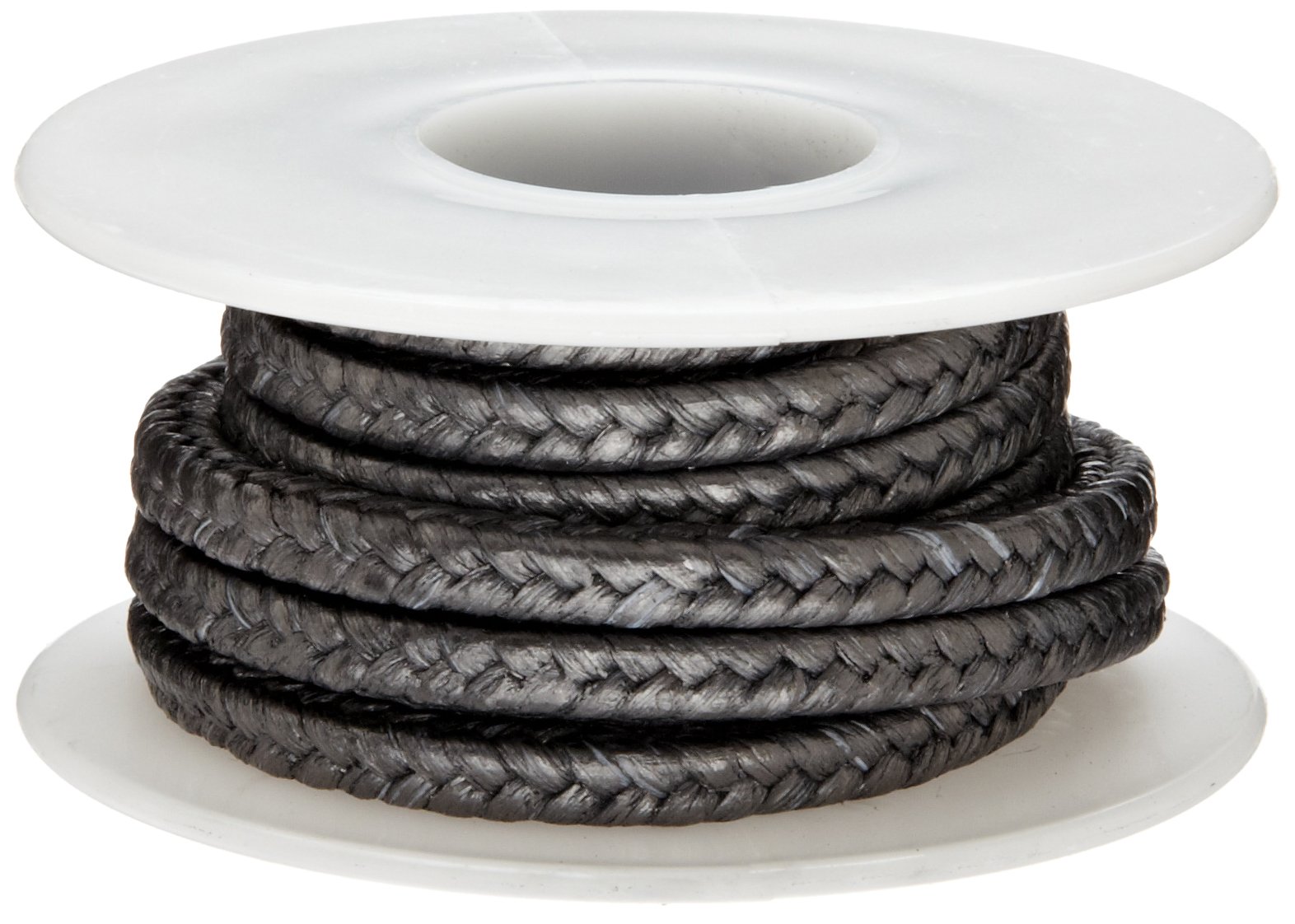

Palmetto Style 1390 PTFE Compression Packing Seal, Graphite Coating, Inert Lubricant, Black

Be the first to review this item

Product Specifications
Manufacturer Series Number
1390
For Use With Product Type
Pumps
Material Type
Polytetrafluoroethylene (PTFE) , Graphite
Color Name
Black
Maximum Pressure
500  PSI
Brand Name
Palmetto Packings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 4 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 27 Next 7 »
Size (Square) Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 27 Next 7 »
1/8" 5 ft 1 B0087UA2EY 2 $13.16 Buy Options
1/8" 10 ft 1 B0087UA53C 1 $20.85 Buy Options
1/8" 25 ft 1 B0087UA5R8 1 $42.68 Buy Options
3/16" 5 ft 1 B0087UA6LS 1 $16.93 Buy Options
3/16" 10 ft 1 B0087UA7RQ 2 $29.34 Buy Options
3/16" 25 ft 1 B0087UA8J8 1 $55.46 Buy Options
1/4" 5 ft 1 B0087UA9FG 2 $23.97 Buy Options
1/4" 10 ft 1 B0087UAAA0 1 $41.80 Buy Options
1/4" 25 ft 1 B0087UAAY6 1 $87.35 Buy Options
5/16" 5 ft 1 B0087UABQI 1 $32.68 Buy Options
5/16" 10 ft 1 B0087UACP8 3 $59.22 Buy Options
5/16" 25 ft 1 B0087UADLG 1 $143.84 Buy Options
3/8" 5 ft 1 B0087UAED8 1 $46.78 Buy Options
3/8" 10 ft 1 B0087UAFF0 1 $79.94 Buy Options
3/8" 25 ft 1 B0087UAG6I 1 $198.55 Buy Options
7/16" 5 ft 1 B0087UAGS6 1 $52.55 Buy Options
7/16" 10 ft 1 B0087UAHKI 1 $108.47 Buy Options
7/16" 25 ft 1 B0087UAIFC Usually ships in 2 to 3 weeks $244.70 Buy Options
1/2" 5 ft 1 B0087UAJAQ 1 $71.97 Buy Options
1/2" 10 ft 1 B0087UAJWE 1 $142.39 Buy Options

Key Features

  • General service compression packing seal protects pumps and other equipment from fluid leaks
  • PTFE yarn coated with colloidal graphite particles resists harsh chemicals, exhibits low friction, and dissipates heat
  • Inert lubricant extends packing life by reducing break-in time and frictional heat
  • Maximum pressure limit of 500 psi in pumps; 1,500 psi in valves
  • Maximum temperature limit of 500 degrees F (260 degrees C)

Product Description

This Palmetto style 1390 PTFE and graphite compression packing seal protects pumps and valves from fluid leaks in general service applications. The interwoven braided packing seal is made of polytetrafluoroethylene (PTFE) yarn for resistance to most harsh chemicals, including solvents, acids, and bases. PTFE’s low coefficient of friction reduces shaft wear by minimizing drag and heat buildup between the packing and the shaft. Low-friction colloidal graphite is added to the packing to reduce thermal expansion and transfer heat away from the shaft to prevent glazing and scoring, extending the packing and sleeve life. Colloidal graphite also improves resistance to pitting and stress cracking. The packing seal is saturated with an inert lubricant that improves break-in time, reduces frictional heat, and prevents the packing from spinning with the shaft or stem, reducing the chance of scoring and wear. Style 1390 is a harder and stiffer packing than styles 1382 and 1389.

This packing seal is compatible with media in the pH range of 0-14, except for hot molten alkali metals and certain media in the 0-2 pH range. It will not hydrolyze in hot water like other fibers, such as aramid. It has a maximum pressure limit of 500 pounds per square inch (psi) in pumps and 1,500 psi in valves, and a shaft surface speed rating of 3,600 feet per minute (fpm). It operates to a maximum temperature of 500 degrees F (260 degrees C). Style 1390 is suitable for use in applications such as paper mill and chemical plant slurries, paper stock, caustic sewage, and reciprocating and high-pressure centrifugal pumps, among others.

Specifications

Maximum temperature 500 degrees F (260 degrees C)
pH range 0-14, except hot molten alkali metals and certain media in the 0-2 pH range
Pressure limit in pumps 500 psi (34.5 bar)
Pressure limit in valves 1,500 psi (103 bar)
Shaft surface speed 3,600 fpm (18.3 m/s)

Rope seals provide a pressure seal to help retain fluids and gases in a wide variety of commercial and industrial applications. They have a round, square, or rectangular cross section, and come in various braided designs including braid-over-braid, braid-over-core, laminated, twisted, or interwoven. Rope seals can be manufactured from a single material or a combination of materials that suit specific pressure, temperature, speed, and chemical applications. Some rope seals are impregnated with lubricant and have reinforced cores for improved performance in specific environments, such as extremely high temperatures. They can be used to create a static seal in fixed or slow-moving applications like expansion joints, doors, and valves, or a dynamic seal in equipment with reciprocating, rotating, or oscillating movement like centrifugal pumps, rotating stems, and blowers. Rope seals come in uncut lengths on spools or as precut molded rings. They are used in numerous industries including agriculture, oil and gas, automotive, aerospace, construction, and consumer goods.

Palmetto Inc. manufactures packing products for pumps and valves, such as compression packing seals, packing tools, gasket sheets, and fillers. The company, founded in 1872, is headquartered in Denton, MD.
