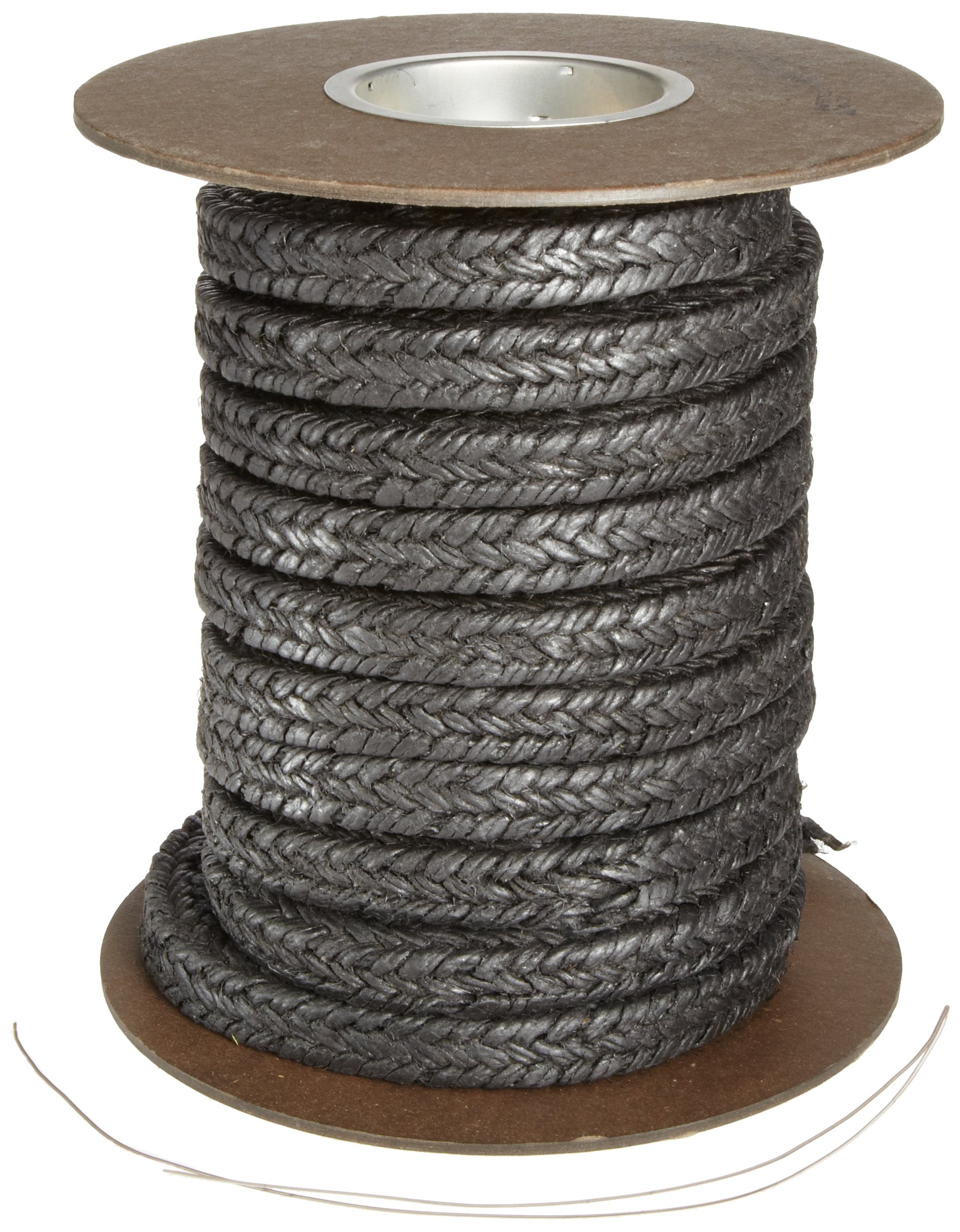

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Palmetto Style 1607 Flax Compression Packing Seal, Graphite Coating, Petroleum/Wax Lubricant, Black

Be the first to review this item

Product Specifications
Manufacturer Series Number
1607
For Use With Product Type
Pumps
Material Type
Flax
Color Name
Black
Maximum Pressure
400  PSI
UNSPSC Code
31410000
Brand Name
Palmetto Packings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 11 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 21 Next 1 »
Size (Square) Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 21 Next 1 »
1/4" 5 ft 1 B0087UE1T6 2 $4.91 Buy Options
1/4" 10 ft 1 B0087UE2X6 2 $9.60 Buy Options
1/4" 25 ft 1 B0087UE3KI 1 $21.96 Buy Options
5/16" 5 ft 1 B0087UE48Y 1 $9.10 Buy Options
5/16" 10 ft 1 B0087UE4VG 1 $17.32 Buy Options
5/16" 25 ft 1 B0087UE5CO 2 $27.80 Buy Options
3/8" 5 ft 1 B0087UE826 1 $9.44 Buy Options
3/8" 10 ft 1 B0087UE8LM Usually ships in 2 to 3 weeks $20.36 Buy Options
3/8" 25 ft 1 B0087UE934 1 $34.37 Buy Options
7/16" 5 ft 1 B0087UE9RK 1 $13.80 Buy Options
7/16" 10 ft 1 B0087UEAD8 1 $21.48 Buy Options
7/16" 25 ft 1 B0087UEAU6 1 $45.13 Buy Options
1/2" 5 ft 1 B0087UEBEG Usually ships in 1 to 3 weeks $17.36 Buy Options
1/2" 10 ft 1 B0087UEC18 1 $27.71 Buy Options
1/2" 25 ft 1 B0087UECFY 1 $59.92 Buy Options
5/8" 5 ft 1 B0087UECYU 1 $21.93 Buy Options
5/8" 10 ft 1 B0087UEDG2 1 $37.96 Buy Options
5/8" 25 ft 1 B0087UEDZI 1 $88.12 Buy Options
3/4" 5 ft 1 B0087UEEIY 1 $25.29 Buy Options
3/4" 10 ft 1 B0087UEF24 Usually ships in 1 to 3 weeks $44.90 Buy Options

Key Features

  • Compression packing seal protects pumps and valves from fluid leaks in general service applications
  • Premium-grade flax fiber impregnated with graphite provides high tensile strength and heat dissipation
  • Petroleum and wax-based lubricant extends packing life by reducing break-in time and frictional heat
  • Maximum pressure limit of 250 psi
  • Maximum operating temperature of 210 degrees F (98 degrees C)

Product Description

This Palmetto style 1607 flax compression packing seal with graphite and a petroleum and wax-based lubricant protects pumps and valves from fluid leaks in general service applications. The interwoven braided packing seal is made of premium-grade flax fiber for high tensile strength. The flax fibers are coated with graphite to increase the transfer of frictional heat away from the shaft, keeping the stuffing box cool and reducing the chance of leakage. A petroleum and wax-based lubricant improves break-in time, further reduces frictional heat, and prevents the packing from spinning with the shaft or stem, reducing the chance of scoring and wear.

This packing seal is compatible with media in the pH range of 6-8 (brines, cold water, and oils), has a maximum pressure limit of 250 pounds per square inch (psi), and a shaft speed of 2,500 feet per minute (fpm). It operates to a maximum temperature of 210 degrees F (98 degrees C). Style 1607 is suitable for use in general service applications such as rotary and reciprocating shafts, rams, and plungers, among others.

Specifications

Maximum temperature 210 degrees F (98 degrees C)
pH range 6-8 (brines, cold water, and oils)
Pressure limit 250 psi (17.2 bar)
Shaft speed 2,500 fpm (12.7 m/s)

Rope seals provide a pressure seal to help retain fluids and gases in a wide variety of commercial and industrial applications. They have a round, square, or rectangular cross section, and come in various braided designs including braid-over-braid, braid-over-core, laminated, twisted, or interwoven. Rope seals can be manufactured from a single material or a combination of materials that suit specific pressure, temperature, speed, and chemical applications. Some rope seals are impregnated with lubricant and have reinforced cores for improved performance in specific environments, such as extremely high temperatures. They can be used to create a static seal in fixed or slow-moving applications like expansion joints, doors, and valves, or a dynamic seal in equipment with reciprocating, rotating, or oscillating movement like centrifugal pumps, rotating stems, and blowers. Rope seals come in uncut lengths on spools or as precut molded rings. They are used in numerous industries including agriculture, oil and gas, automotive, aerospace, construction, and consumer goods.

Palmetto Inc. manufactures packing products for pumps and valves, such as compression packing seals, packing tools, gasket sheets, and fillers. The company, founded in 1872, is headquartered in Denton, MD.
