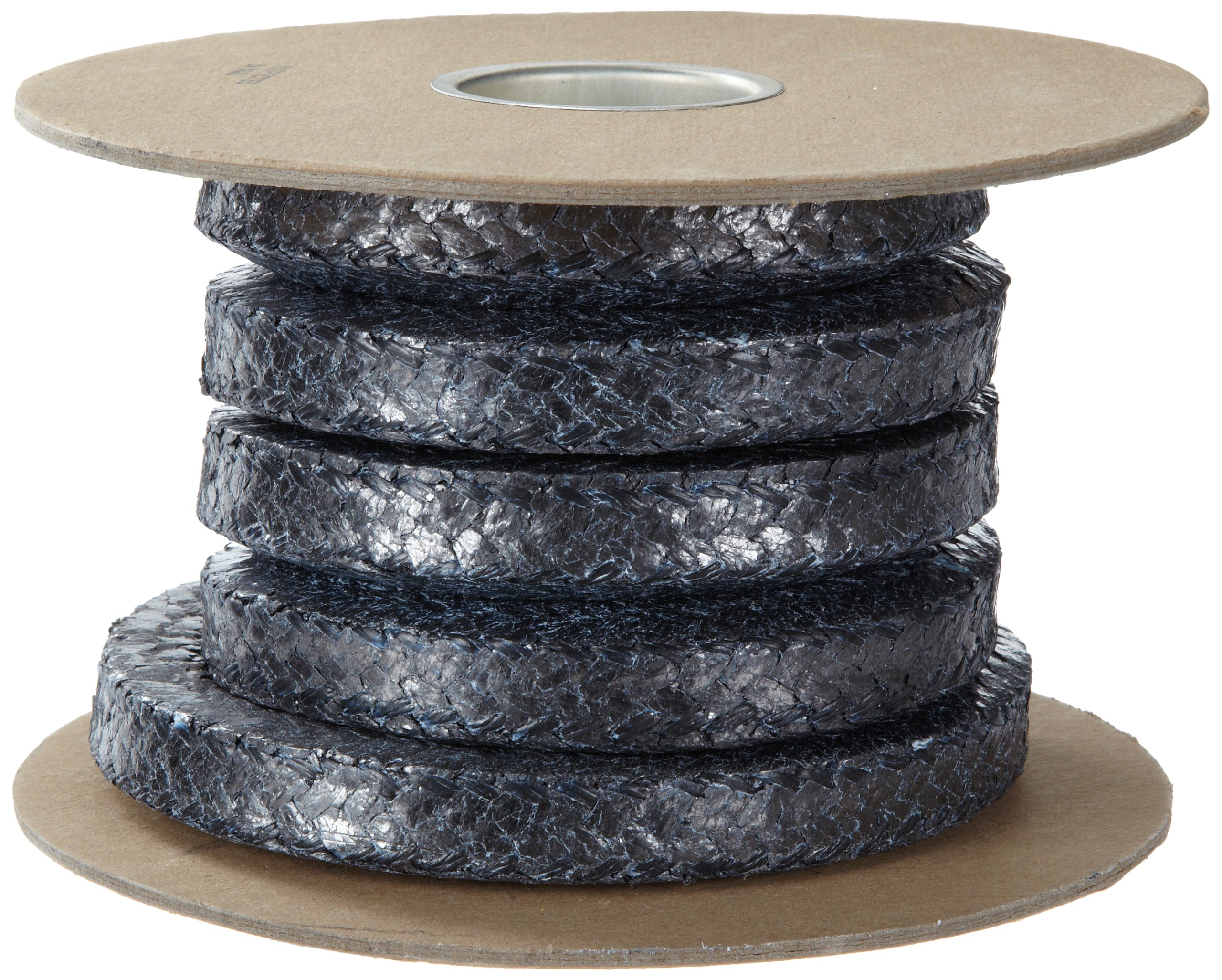

Palmetto Style 5080 Flexible Graphite Compression Packing Seal, Carbon Corners, Shiny Gray

Be the first to review this item

Product Specifications
Manufacturer Series Number
5080
For Use With Product Type
Pumps and Valves
Material Type
Graphite
Color Name
Shiny Gray
Maximum Pressure
1200  PSI
UNSPSC Code
31410000
Brand Name
Palmetto Packings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 10 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 21 Next 1 »
Size (Square) Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 21 Next 1 »
1/4" 5 ft 1 B0087UG054 2 $30.00 Buy Options
1/4" 10 ft 1 B0087UG0YA 2 $46.92 Buy Options
1/4" 25 ft 1 B0087UG1LW 1 $106.68 Buy Options
5/16" 5 ft 1 B0087UG2U2 1 $44.99 Buy Options
5/16" 10 ft 1 B0087UG3PG 1 $77.58 Buy Options
5/16" 25 ft 1 B0087UG4HI Usually ships in 1 to 3 weeks $150.85 Buy Options
3/8" 5 ft 1 B0087UG5B8 2 $49.46 Buy Options
3/8" 10 ft 1 B0087UG6DK 1 $88.01 Buy Options
3/8" 25 ft 1 B0087UG7L6 1 $181.97 Buy Options
7/16" 5 ft 1 B0087UG8H4 1 $57.84 Buy Options
7/16" 10 ft 1 B0087UG9BY 1 $104.99 Buy Options
7/16" 25 ft 1 B0087UGA4U Usually ships in 1 to 3 weeks $215.90 Buy Options
1/2" 5 ft 1 B0087UGAQS 1 $73.71 Buy Options
1/2" 10 ft 1 B0087UGBJE 1 $132.03 Buy Options
1/2" 25 ft 1 B0087UGC9I 1 $264.06 Buy Options
5/8" 5 ft 1 B0087UGDHY 1 $106.99 Buy Options
5/8" 10 ft 1 B0087UGESW 1 $170.84 Buy Options
5/8" 25 ft 1 B0087UGFOK 1 $341.69 Buy Options
3/4" 5 ft 1 B0087UGGDU 1 $172.44 Buy Options
3/4" 10 ft 1 B0087UGHGG 1 $266.99 Buy Options

Key Features

  • Compression packing seal protects pumps and valves from fluid leaks in severe service applications
  • Flexible graphite yarn resists high temperatures and dissipates frictional heat away from the shaft, enabling high shaft speeds and reducing leakage
  • Carbon-reinforced corners provide resistance to packing extrusion
  • Maximum pressure limit of 1,200 psi in pumps; 3,500 psi in valves
  • Operating temperatures range from -300 degrees F to 1,200 degrees F in steam and 650 degrees F in oxidizing atmospheres

Product Description

This Palmetto style 5080 flexible graphite compression packing seal with carbon-reinforced corners protects pumps and valves from fluid leaks in severe service applications. The interwoven braided seal is made of pure expanded flexible graphite yarn for high shaft speeds, a low coefficient of friction in both low and high temperatures, and resistance to harsh chemicals and high temperatures. Flexible graphite transfers heat away from the shaft or stem to prevent glazing and scoring, reducing leakage and extending the packing and sleeve life. It is resilient and conforms to surfaces when compressed to create a tight seal. The packing corners are reinforced with 95-percent assay carbon yarn to prevent extrusion of the graphite fibers.

This packing seal is compatible with media in the pH range of 0-14, except strong oxidizers in the 0-2 pH range, such as fuming nitric acid, aqua regia, and oleum. It has a shaft speed of 6,000 feet per minute (fpm), and a maximum pressure limit of 1,200 pounds per square inch (psi) in pumps and 3,500 psi in valves. It operates at temperatures from -300 to 1,200 degrees F (-184 to 649 degrees C) in steam and -300 to 650 degrees F (-184 to 343 degrees C) in oxidizing atmospheres. Style 5080 is suitable for use in boiler feed pumps, condensate pumps, and steam valves, among others.

Specifications

pH range 0-14, except strong oxidizers in the 0-2 pH range
Pressure limit in pumps 1,200 psi (83 bar)
Pressure limit in valves 3,500 psi (241 bar)
Shaft speed 6,000 fpm (30.5 m/s)
Temperature range in oxidizing atmospheres -300 to 650 degrees F (-184 to 343 degrees C)
Temperature range in steam -300 to 1,200 degrees F (-184 to 649 degrees C)

Rope seals provide a pressure seal to help retain fluids and gases in a wide variety of commercial and industrial applications. They have a round, square, or rectangular cross section, and come in various braided designs including braid-over-braid, braid-over-core, laminated, twisted, or interwoven. Rope seals can be manufactured from a single material or a combination of materials that suit specific pressure, temperature, speed, and chemical applications. Some rope seals are impregnated with lubricant and have reinforced cores for improved performance in specific environments, such as extremely high temperatures. They can be used to create a static seal in fixed or slow-moving applications like expansion joints, doors, and valves, or a dynamic seal in equipment with reciprocating, rotating, or oscillating movement like centrifugal pumps, rotating stems, and blowers. Rope seals come in uncut lengths on spools or as precut molded rings. They are used in numerous industries including agriculture, oil and gas, automotive, aerospace, construction, and consumer goods.

Palmetto Inc. manufactures packing products for pumps and valves, such as compression packing seals, packing tools, gasket sheets, and fillers. The company, founded in 1872, is headquartered in Denton, MD.
