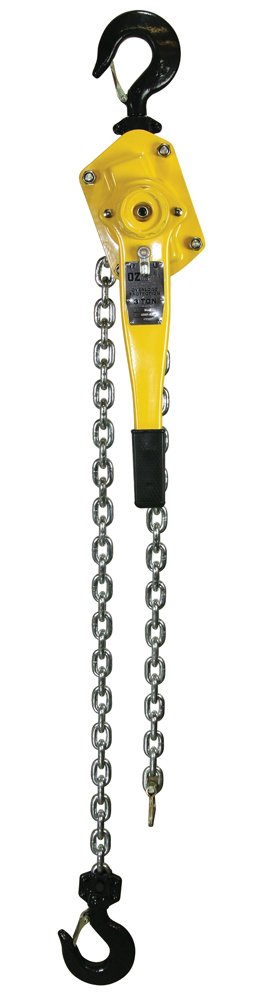

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

OZ Lifting Lever Hoist, Overload Protection, Hook Mount

Be the first to review this item

Product Specifications
Mounting Type
Hook
Material Type
Steel
UNSPSC Code
24101602
Brand Name
OZ Lifting

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 3 hrs 16 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Load Capacity Headroom Lever Length Hook Opening Lift ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-12 of 12
1500 lbs 12-51/64" 11-3/16" 1-11/64" 5 ft B006P6BO6W yes $285.46 Buy Options
1500 lbs 12-51/64" 11-3/16" 1-11/64" 15 ft B006P6BSTK yes $321.59 Buy Options
1500 lbs 12-51/64" 11-3/16" 1-11/64" 20 ft B006P6BVDI yes $340.07 Buy Options
1500 lbs 12-51/64" 11-3/16" 1-11/64" 10 ft B006P6BQKG yes $312.28 Buy Options
3000 lbs 14-31/32" 16-1/8" 1-13/32" 5 ft B006P6BXBI yes $329.47 Buy Options
3000 lbs 14-31/32" 16-1/8" 1-13/32" 20 ft B006P6C4BG yes $406.36 Buy Options
3000 lbs 14-31/32" 16-1/8" 1-13/32" 15 ft B006P6C2E0 yes $400.90 Buy Options
3000 lbs 14-31/32" 16-1/8" 1-13/32" 10 ft B006P6C0I8 yes $358.84 Buy Options
6000 lbs 18-57/64" 16-1/8" 1-9/16" 15 ft B006P6CALU yes $640.43 Buy Options
6000 lbs 18-57/64" 16-1/8" 1-9/16" 10 ft B006P6C8T4 yes $601.13 Buy Options
6000 lbs 18.89" 16-1/8" 1-9/16" 5 ft B006P6C79K yes $536.94 Buy Options
6000 lbs 18.89" 16-1/8" 1-9/16" 20 ft B006P6CC18 yes $683.83 Buy Options

Key Features

  • Manually operated lever hoist with hook mount; factory-set overload protection for added safety and to help prevent damage; steel construction for strength; and powder-coated body and components for resistance to wear
  • Handle with 360-degree rotation for work in tight spaces, and rubber grip to minimize slip
  • Low pulling force requirement to facilitate use
  • Free wheel clutch for rapid chain adjustment; enclosed, machined lift wheel for smooth operation
  • Enclosed friction disk brake and gears, covered chain guide, zinc-plated load chain, and sealed bearings for resistance to wear

Product Description

The OZ Lifting lever hoist with hook mount has factory-set overload protection for added safety and to help prevent damage; steel construction for strength; a powder-coated body and components for resistance to wear; a handle that rotates 360 degrees for work in tight spaces; and a rubber grip to minimize slip. This hoist has a low pulling force requirement to facilitate use. When there is no load on the load hook, the free wheel clutch on this hoist allows the operator to disengage the gears for rapid chain adjustment. The OZ Lifting lever hoist has an enclosed, machined lift wheel for smooth operation. This hoist has an enclosed Weston-style friction disk brake and enclosed gears, a covered chain guide, zinc-plated load chain with safety stop, and sealed bearings for resistance to wear. Identification tags are made of stainless steel for resistance to corrosion, are riveted to the hoist for secure attachment, and have etched labels for added legibility and resistance to wear. The gears and shafts in the OZ Lifting lever hoist run on roller bearings for smooth operation, added control, and maintenance-free lubrication. The mount hook and load hook on this hoist are made of forged alloy steel, have cast steel safety latches, and open slowly to indicate overload. Safety latches on the hooks are attached by a bolt and lock nut to facilitate rapid latch replacement in the field. This hoist has been load tested and certified by the manufacturer to 150% of rated capacity. The OZ Lifting lever hoist is produced to comply with American National Standards Institute/American Society for Mechanical Engineers (ANSI/ASME) B30.21 standard and Australian Standards (AS) 1418.2.

Hoists are devices that use relatively small amounts of force to lift, lower, and pull heavy loads. Manual hoists transfer a small, hand-exerted force either across a series of gears to multiply the force into one large enough to lift the designated load, or over a pulley, drum, or sheave to leverage the force into one strong enough to lift the load. This makes it possible for an operator to manage heavy loads. The manual force is usually applied using a hand chain, lever, or lever ratchet, lifting the load by a hook attached to a chain, rope, or wire. Hand chain and lever hoists generally use mechanical disk brakes called Weston-style brakes that hold the load in place while the operator's hands are released to make the next pull, secure the load once it has been lifted, and control the descent of the load as it is lowered. Ratchet puller hoists commonly use ratchets instead of mechanical brakes to secure and control the load. Manual hoists are commonly attached to or suspended from structures by hook or trolley mounts, and are used in the transportation, construction, manufacturing, mining, and material handling industries, among others.

Capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load. Pull force describes the amount of force that needs to be applied to lift a load. If a 1/2 ton manual hoist specifies a pull force of 40 lbs., for example, the operator needs to be able to pull a 40 lb. weight in order to lift the maximum 1/2 ton (500 lb.) load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Lift is the maximum vertical distance the load hook can move a load.

OZ Lifting Products manufactures hoists, beam clamps, and trolleys. The company, founded in 2004, is based in Winona, MN.
