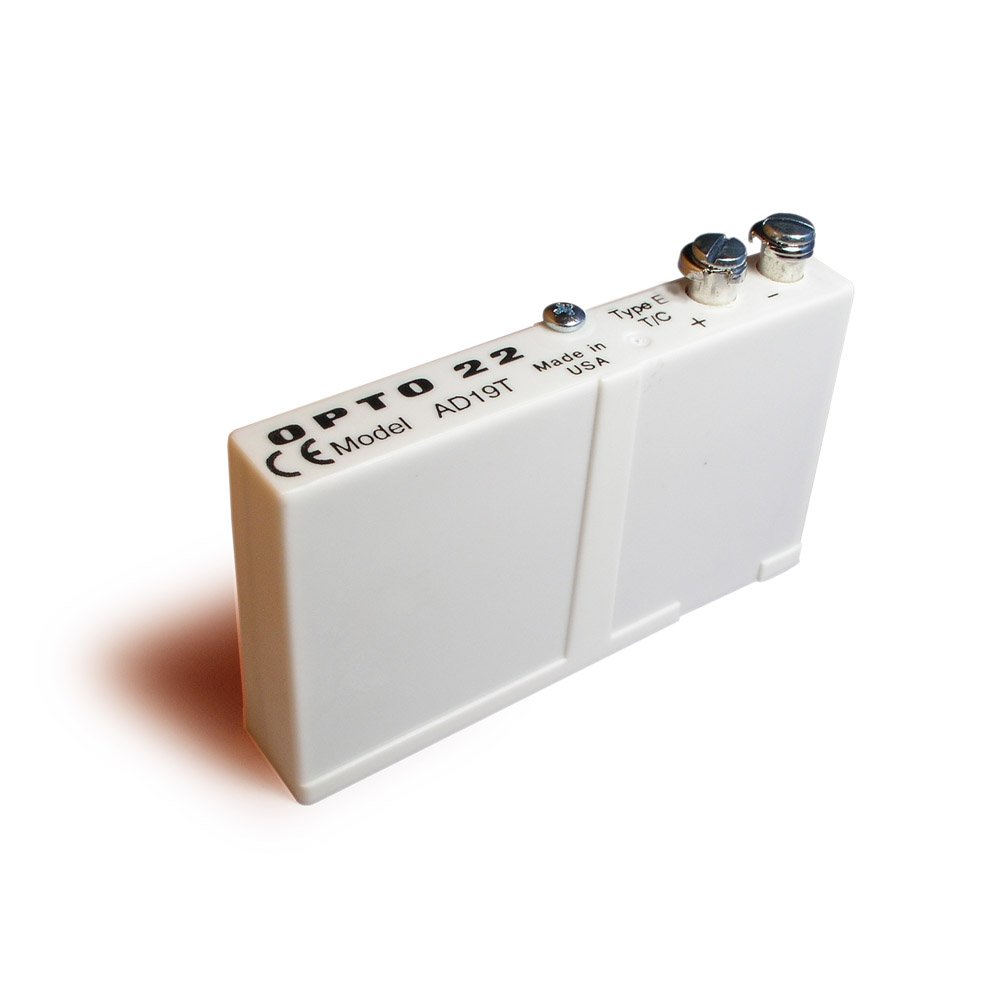

Opto 22 AD19T E Thermocouple Input Analog Isolated Module, 30 mA at +/-15 VDC

Be the first to review this item

ASIN B0058UWPYG

Specifications for this item
Number of Items
1
Part Number
AD19T
Temperature Range
0/70  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
70  Degrees Celsius
List price:
$185.00
Price:
$180.19
You save:
$4.81 (3%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 14 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Rugged packaging
  • 4000 Vrms transient isolation; 12-bit resolution
  • Factory calibrated, no user adjustments
  • Operating temperature: 0 degree C to 70 degree C
  • "T" models offer channel-to-channel isolation

Package Details

Shipping Weight: 0.2 pounds
Package Size: 3.7 x 3.4 x 0.9 inches

Product Description

The thermocouple analog modules provide a single channel of optically isolated temperature-to-digital conversion. The modules offer wide nominal input and special over/under range capabilities. The "T" module also includes 4000 Vrms transient channel-to-channel isolation which eliminates any ground loop problems. Modules plug into a Classic standard analog I/O rack and are secured by a captive screw. Thermocouple type: E. Nominal temperature range: -100 Degree C to 435 Degree C. Over/under range capability: -100 Degree C to 900 Degree C. Average resolution: 0.13 Degree C (-100 to 435 degree C), 0.23 Degree C (435 to 900 Degree C). Accuracy: +/- 3 Degree C. Repeatability: +/- 0.8 Degree C (-100 to 0 Degree C), +/- 0.6 Degree C (0 to 435 Degree C), +/- 0.5 degree C (435 to 900 Degree C). Power Requirements: 30 mA at +15 VDC, 30 mA at -15 VDC. Isolation: 4000 Vrms (Transient) Input-to-Output, 4000 Vrms Input-to-Analog Supply. Cold junction compensated: yes. Open thermocouple detection: yes. Input response time: 5 percent of scale change in 8.5 ms, 63 percent of scale change in 165 ms. Ambient temperature: 0 degree to 70 Degree C; -25 degree to 85 Degree C. Resolution: 12 bits.

IEC 950: 1991-09, 89/336/EEC, 2002/95/EC
