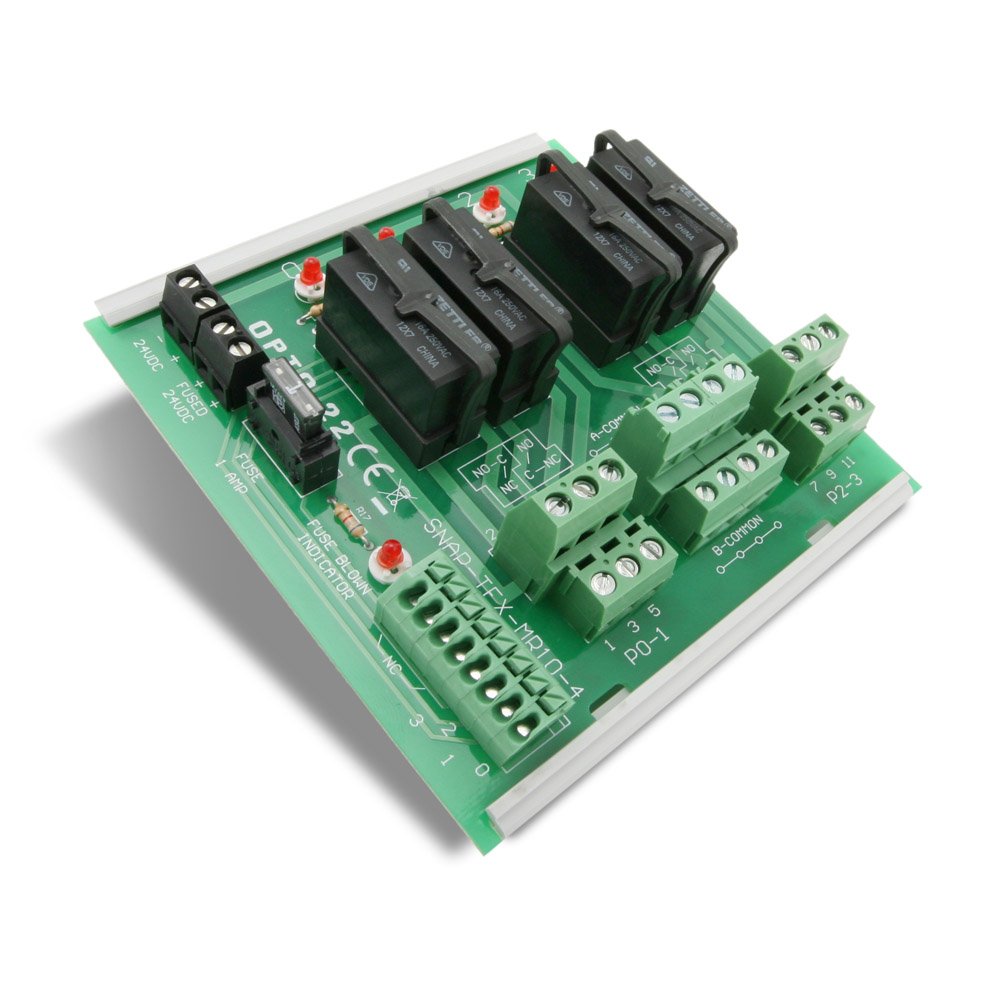

Opto 22 SNAP-TEX-MR10-4 - 4-Point Breakout Board with Mechanical Relays for SNAP Digital 4-Channel Output Modules

Be the first to review this item

ASIN B0058V0Z42

Specifications for this item
Number of Items
1
Part Number
SNAP-TEX-MR10-4
Brand Name
Opto 22
UNSPSC Code
39121552

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 3 hrs 16 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Switch up to 10 A @ 240 VAC per channel using mechanical relays on the board
  • On/off indicators for each channel; each channel can be wired for normally closed or normally open
  • Use with I/O modules SNAP-ODC5-i, SNAP-ODC5A-i, SNAP-ODC5SRC, SNAP-ODC-32-SRC
  • CE approved
  • Warranty: 30 months from date of manufacture

Package Details

Shipping Weight: 0.6 pounds
Package Size: 7 x 5.9 x 2.3 inches

Product Description

The SNAP-TEX-MR10-4 breakout board is designed for high-current switching of outputs through a 4-point SNAP digital output module. The board includes 4 mechanical relays, one for each point, that can switch up to 10 A per point. The SNAP-TEX-MR10-4 includes on/off indicators for each point, and each point can be wired for normally closed or normally open. The board requires 24 VDC power. The MR board is used with a 4-channel digital output module such as the SNAP-ODC5-i or the SNAP-ODC5SRC, and a SNAP-TEX-CBO6 cable. Relay contacts: SPDT (1 Form C). Typical life expectancy (Electrical): 1 x 105. Switching capacity: 10 A at 240 VAC. Switch On time: 7 ms nominal. Switch Off time: 3 ms nominal. Fusing: 24 V fuse for board. Indicators: 4 on/off status indicators (one for each channel). 1 fuse-blown indicator. Power requirements (all positions On): 24 VDC at 75 mA.

IEC 950: 1991-09, 89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
