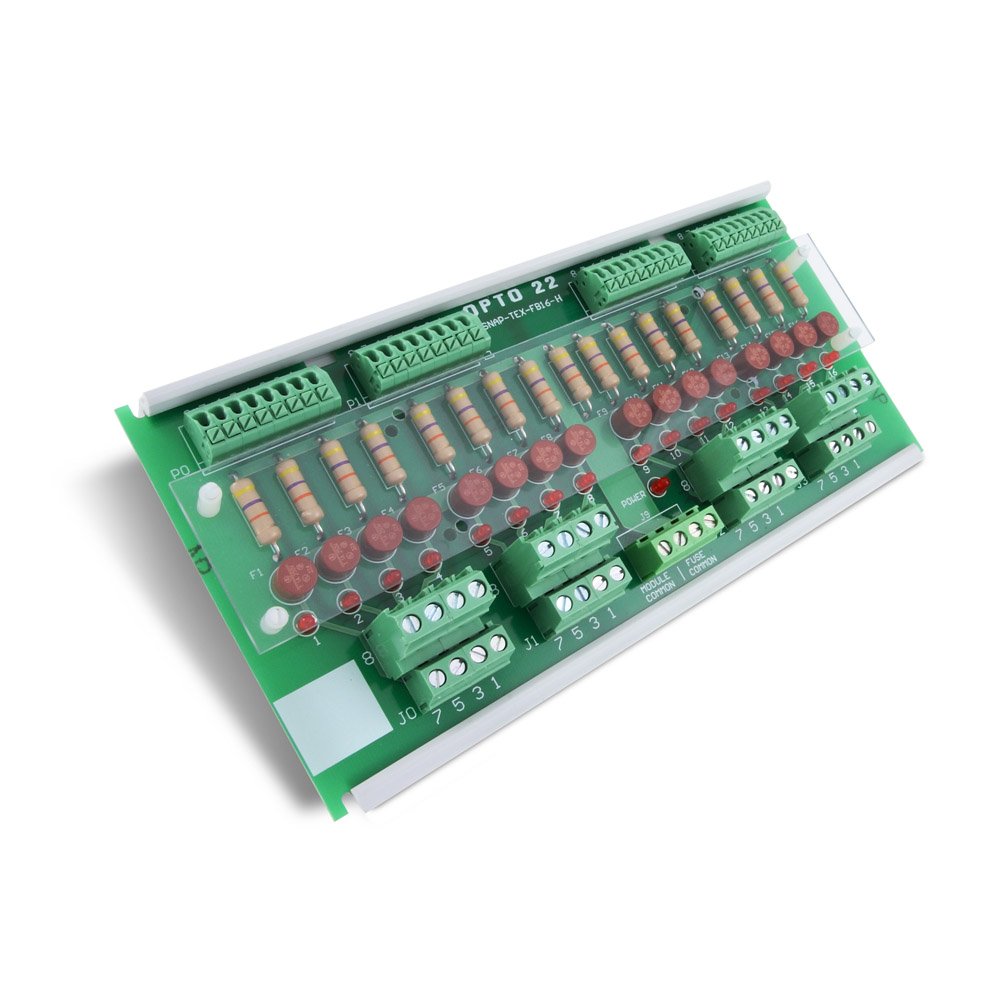

Opto 22 SNAP-TEX-FB16-H - 16-Point Breakout Board for SNAP I/O with Fuses and Bussed Power (120-240 V)

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name
Opto 22

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 3 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Extend the terminals on your SNAP I/O modules for easier, cleaner wiring to field devices
  • Provides a fuse and a fuse-blown indicator for each of 16 channels
  • Provides 120-240 volts of power to loads
  • Use with 4-, 16-, or 32-channel SNAP I/O modules
  • CE approved. Warranty: 30 months from date of manufacture

Package Details

Shipping Weight: 0.75 pounds
Package Size: 10.3 x 5.1 x 1.7 inches

Product Description

Part of the SNAP TEX family of mounting and wiring accessories, the SNAP-TEX-FB16-H breakout board provides a fuse and a fuse-blown indicator for each of its 16 channels. In addition, it provides 120-240 volts of power to loads. Simply attach the power source to a single spot in the middle of the rack, and power goes out to solenoids or switches, depending on the module you’re using. The SNAP-TEX-FB16-H is used primarily for digital inputs and outputs. Cables: For 4-channel modules, use SNAP-TEX-CBO6 (odd pins connected) or SNAP-TEX-CBS6 (straight-through), depending on module. CAUTION: DO NOT use the SNAP-TEX-CBE6 cable; the board has odd pins connected and the cable has even pins connected. For 16-channel modules, use cable SNAP-HD-ACF6. For 32-channel modules, use cable SNAP-HD-CBF6.

89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
