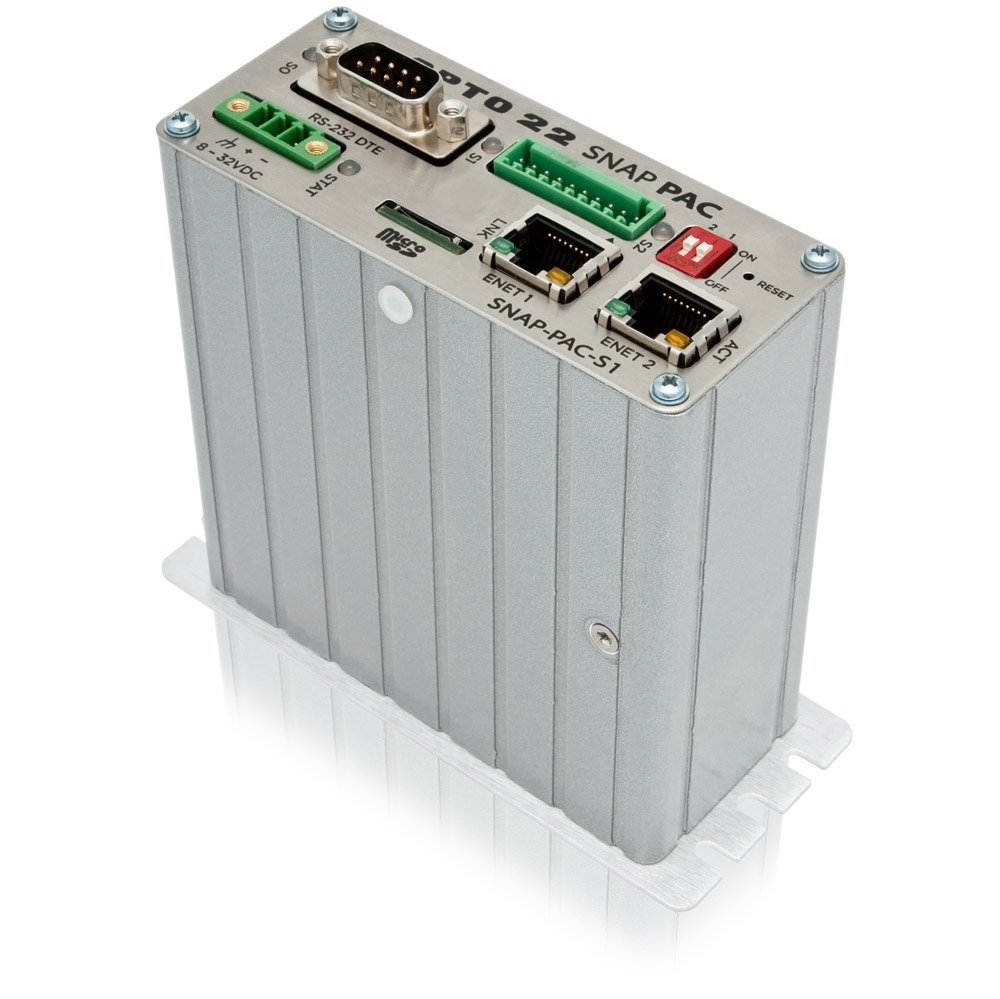

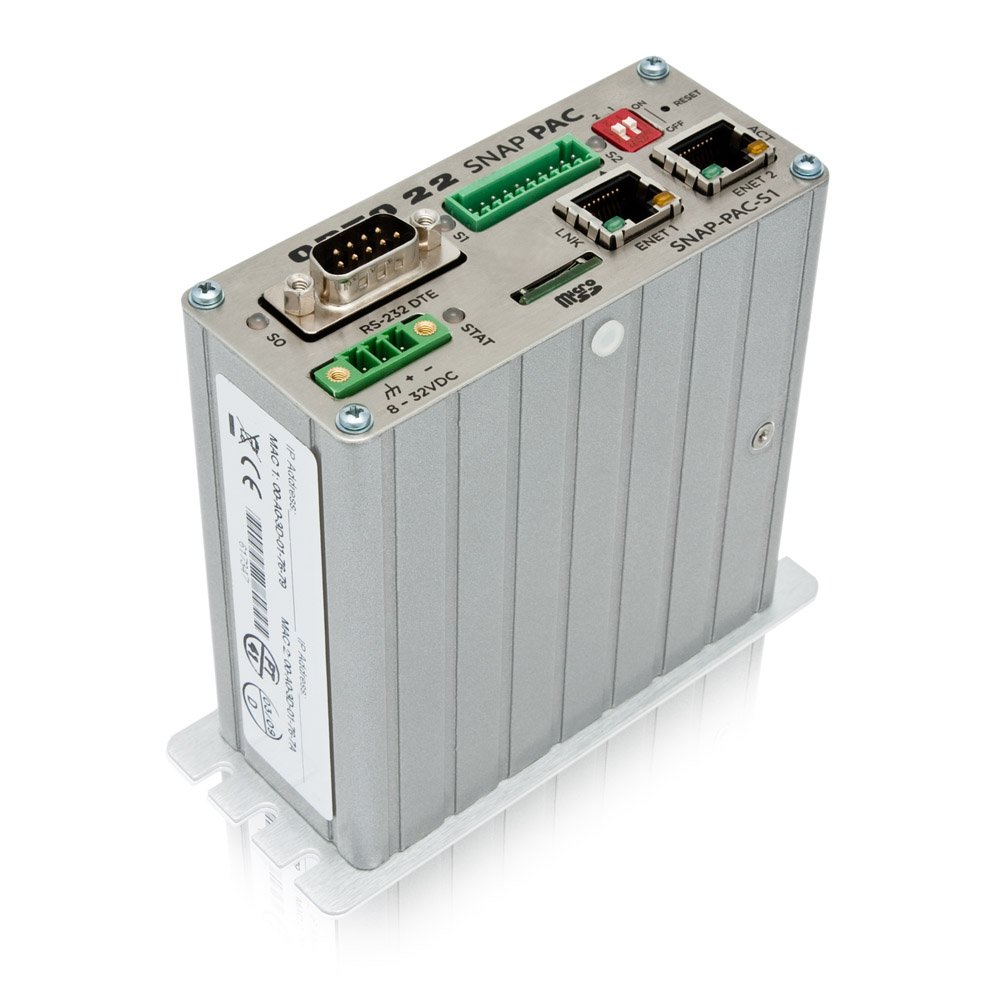

Opto 22 SNAP-PAC-S1 - SNAP PAC S-series Standalone Programmable Automation Controller for Ethernet Networks

Be the first to review this item

ASIN B0058UW7S0

Specifications for this item
Number of Items
1
Part Number
SNAP-PAC-S1
Temperature Range
0 to 60  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
60  Degrees Celsius
UNSPSC Code
39121552

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 16 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Industrial controller runs up to 32 PAC Control flowcharts simultaneously
  • Two 10/100 Mbps Ethernet interfaces for host and I/O communication over standard Ethernet networks
  • Two RS-232 serial ports (one with full handshaking for PPP host communications) plus one RS-485 serial port for connection to Opto 22 serial I/O units
  • Use two identical models for controller redundancy
  • Multiple protocol support: TCP/IP, EtherNet/IP, Modbus/TCP, SNMP, SMTP, FTP, and OptoMMP; FTP server/client capability; includes file system and removable storage (2 GB microSD card)

Package Details

Shipping Weight: 1.15 pounds
Package Size: 7.4 x 6.3 x 3.7 inches

Product Description

The SNAP-PAC-S1 programmable automation controller provides powerful, real-time control and communications to meet your industrial control, monitoring and data acquisition needs. One of the four components of the SNAP PAC System, the SNAP-PAC-S1 is fully integrated with PAC Project software, SNAP PAC brains, and SNAP I/O modules to form a complete control system. The SNAP PAC System includes digital and analog control, serial string handling, PID loops and enterprise connectivity. The SNAP-PAC-S1 controller is compact and industrially hardened. It includes two independent Ethernet network interfaces with separate IP addresses, which can be used to segment the control network from the company network or for redundant Ethernet links. You can also set up a system with redundant controllers using two identical S-series controllers, the SNAP PAC Redundancy Option Kit, and PAC Project Professional 9.0 or newer. The SNAP-PAC-S1 also has three serial ports: an RS-232 port with full hardware handshaking, ideal for PPP communication using a modem; another RS-232 port for connecting directly to serial devices; and an RS-485 port for connecting to SNAP PAC Serial brains or to legacy mistic I/O units. Connecting to Opto 22 serial- and Ethernet-based I/O systems, a SNAP PAC S-series controller runs control programs written in Opto 22's PAC Control software to monitor and control a wide range of devices and equipment. SNAP PAC S-series controllers are well suited to original equipment manufacturers (OEMs), system integrators and end-users in process control, discrete manufacturing or hybrid industries and applications. A SNAP PAC S-series controller simultaneously runs up to 32 PAC Control flowcharts, although the PAC Control strategy can contain a much larger number of charts.

IEC 950: 1991-09, 89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
