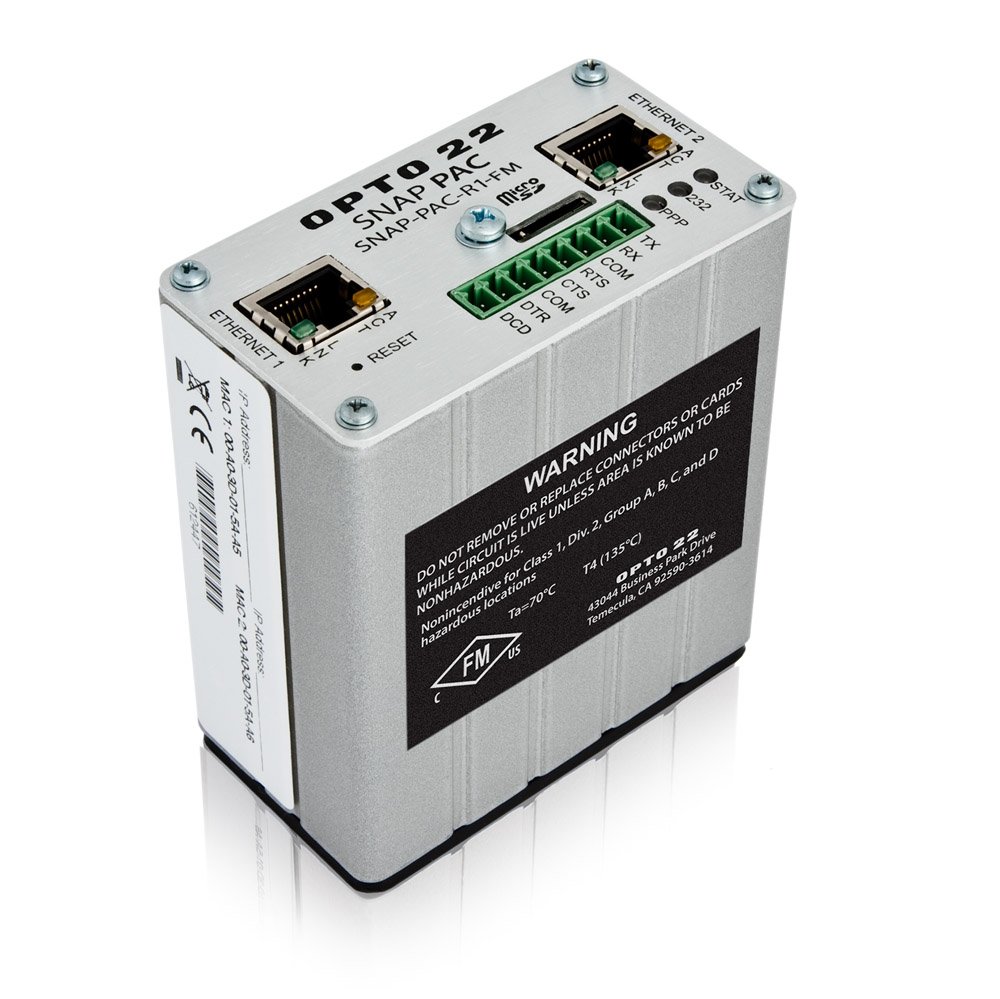

Opto 22 SNAP-PAC-R1-FM - SNAP PAC R-series Rack-mounted Programmable Automation Controller, Analog/Digital/Serial I/O Processing, Factory Mutual Approved

Be the first to review this item

ASIN B0058UVZ24

Specifications for this item

Brand Name: Opto 22
Number of Items: 1
Part Number: SNAP-PAC-R1-FM

Temperature Range: 0 to 60 Degrees Celsius
Torque: 0.9 Newton Meters
Upper Temperature Range: 60 Degrees Celsius

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Friday, May 24? Order in-stock items in the next 14 hours 27 minutes and choose One-Day Shipping at checkout.

Key Features

Rack-mounted industrial controller with I/O processor included
Two independent 10/100 Mbps Ethernet network interfaces; one RS-232 port with handshaking, suitable for modem communication using PPP; MicroSD card slot for removable data storage
High-speed digital functions: counting up to 20 KHz (depends on module), quadrature counting, pulse generation and measurement, TPO (time-proportional output)
Full-featured control and HMI software included with purchase
Factory Mutual approved

Package Details

Shipping Weight: 0.9 pounds
Package Size: 7.3 x 6.4 x 3.7 inches

Product Description

The SNAP-PAC-R1-FM programmable automation controller provides control, communication, and I/O processing in a compact, rack-mounted package. One of four components of the SNAP PAC System, the SNAP-PAC-R1-FM is fully integrated with PAC Project software, SNAP PAC brains, and SNAP I/O modules. The SNAP-PAC-R1-FM is Factory Mutual approved. Used with the included PAC Project Basic software suite (or PAC Project Professional, purchased separately), the Ethernet-based SNAP-PAC-R1-FM can handle almost all your industrial control, remote monitoring, and data acquisition needs. This intelligent, flexible PAC can be used in several ways. The SNAP-PAC-R1-FM can provide complete cell control on its own rack with I/O modules. It can also control SNAP PAC I/O units at the same time for a larger system. Or the R1 can be used in a more extensive distributed control system as an I/O unit controlled by a SNAP PAC S-series standalone controller. It can even be used as intelligent remote I/O for Allen-Bradley Logix PLC systems, such as ControlLogix and MicroLogix. Two independent, 10/100 Mbps Ethernet network interfaces are included on each SNAP-PAC-R1-FM. These interfaces have separate IP addresses and can be used to segment the control network from the company network or to provide Ethernet link redundancy in case of link failure or maintenance. In addition, the controller has an RS-232 serial port with hardware handshaking, which can be used for PPP (Point-to-Point Protocol) communication over a modem or for direct connection to serial devices. The controller mounts on a SNAP PAC mounting rack with up to 4, 8, 12, or 16 digital, analog, serial, and special-purpose I/O modules. Choose the modules needed for your application from the extensive line of SNAP I/O modules.

Factory Mutual, Canadian Factory Mutual, IEC 950: 1991-09, 89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
