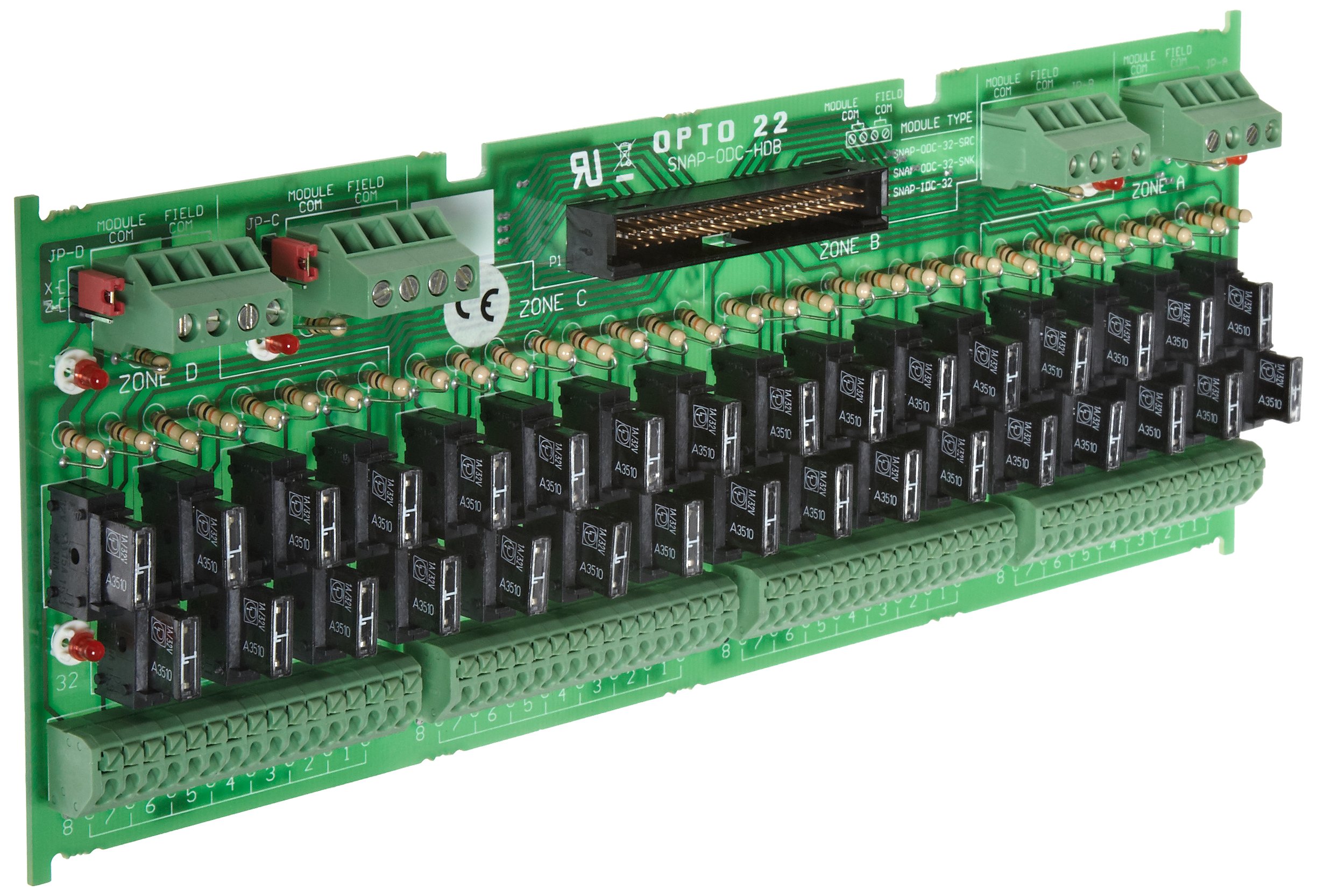

Opto 22 SNAP-ODC-HDB - Fused Breakout Rack for SNAP 32-Channel Digital (Discrete) Output Modules

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name
Opto 22

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 20? Order in-stock items in the next 15 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Provides LED indicators and easier wiring for 32-channel SNAP digital output modules, either sourcing or sinking
  • LED indicator and 1 amp fuse for each signal output (32 total)
  • For each zone of 8 signal inputs, one jumper controls whether module common or field common is used
  • UL and CE approved
  • Warranty: 30 months from date of manufacture

Package Details

Shipping Weight: 1 pounds
Package Size: 13.4 x 4.9 x 1.7 inches

Product Description

The SNAP-ODC-HDB breakout rack is used with one 32-channel digital output module, either sinking or sourcing. The breakout rack provides LED indicators and easily accessible fused connectors for output points. Connect to a SNAP-ODC-32-SRC, SNAP-ODC-32-SRC-FM, SNAP-ODC-32-SNK, or SNAP-ODC-32-SNK-FM module using a SNAP-HD-BF6 header cable.

Underwriters Laboratory, IEC 950: 1991-09, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
