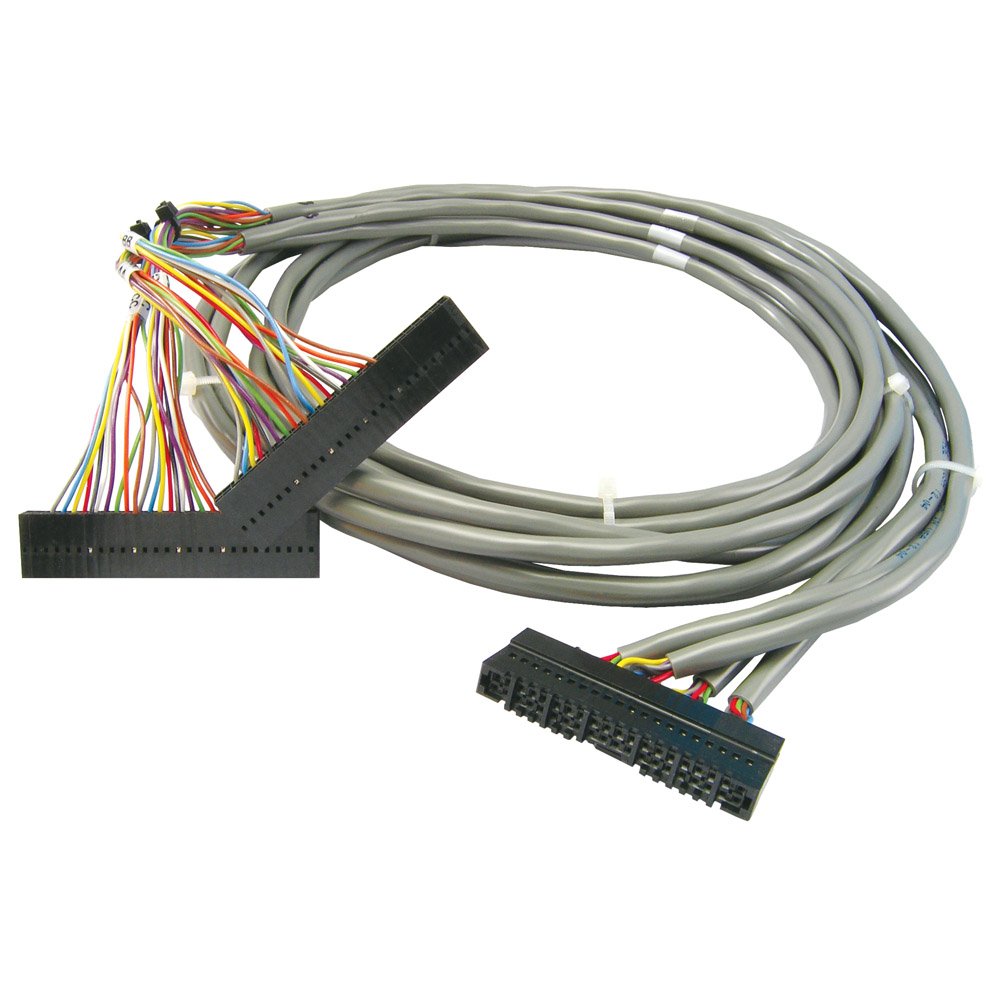

Opto 22 SNAP-HD-G4F6 - Header Cable for SNAP 32-Channel Digital Modules and G4 Digital Racks

Be the first to review this item

ASIN B0058V0B78

Specifications for this item
Number of Items
1
Part Number
SNAP-HD-G4F6
Brand Name
Opto 22
UNSPSC Code
60104912
Overall Length
6  feet

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Nov 26? Order in-stock items in the next 20 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Allows older G4 (or even G1) digital output systems to be integrated with modern Opto 22 products
  • Connects two 16-channel mounting racks to one 32-channel digital module

Package Details

Shipping Weight: 0.95 pounds
Package Size: 8.6 x 7.3 x 1.3 inches

Product Description

The SNAP-HD-G4F6 header cable connects a SNAP 32-channel load sinking output module (SNAP-ODC-32-SNK or SNAP-ODC-32-SNK-FM) to two G4 digital I/O racks. This connection allows older G4 (or even G1) digital output systems to be integrated with modern Opto 22 products like SNAP PAC controllers, SNAP Ethernet-based brains, and PAC Project software. This connection makes available the G4 output module's 3 amp switching capability, providing 12 times the 0.25 amp capability per point of the high-density digital modules. The SNAP-HD-G4F6 connects one high-density digital module with two G4PB16H, G4PB16HC, PB16H, or PB16HC racks, or with G4PB16L or PB16L integrated I/O. All G4 or G1 modules on the rack must be of the same type (input or output) and of the same logic voltage (5, 15 or 24 VDC).

89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
