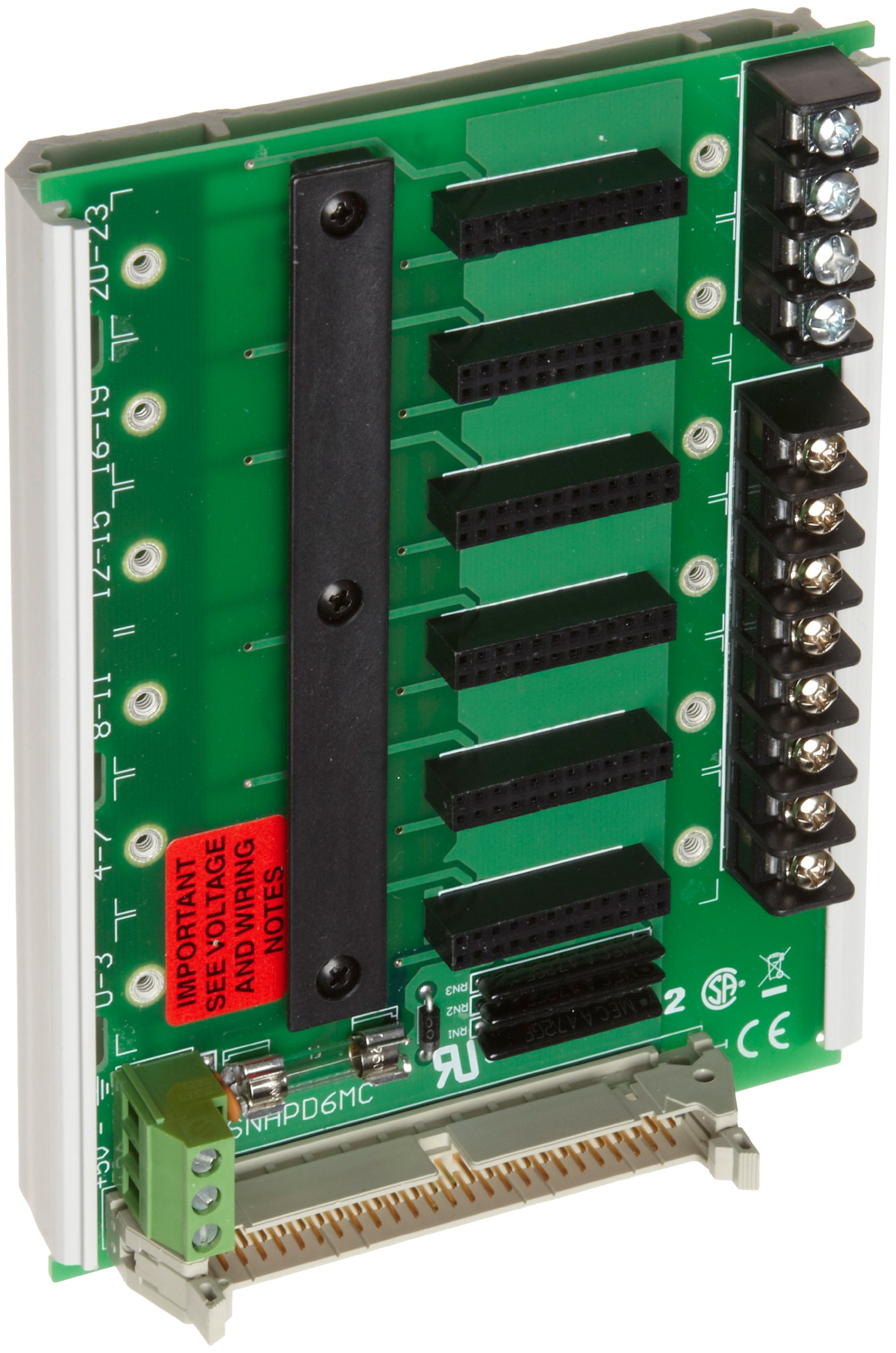

Opto 22 SNAP-D6MC Snap D-Series 6 Module Rack with Extra Terminal Block

Be the first to review this item

ASIN B0058UVLTG

Specifications for this item

Brand Name: Opto 22
Number of Items: 1
Overall Length: 5.74 inches

Part Number: SNAP-D6MC
Temperature Range: 0/70 Degrees Celsius
Upper Temperature Range: 70 Degrees Celsius

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, June 20? Order in-stock items in the next 11 hours 47 minutes and choose One-Day Shipping at checkout.

Key Features

Ideal for discrete control applications
Control directly or through an Opto 22 PC adapter card
Use panel or DIN-rail mounting
Modules snap into place
Number of center postions: 2

Package Details

Shipping Weight: 0.6 pounds
Package Size: 6.7 x 5 x 1.7 inches

Product Description

SNAP D-series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These racks use an industry-standard 50-pin header connector, which allows these racks to be used in a variety of applications. The logic side of the I/O circuitry can be controlled directly or by using an Opto 22 PCI-AC5 (PCI bus) or G4AC5 or AC5 (ISA bus) PC adapter card. In addition, the 4-module-position SNAP-D4M can be used with Opto 22s Classic brain boards. These boards use one of Opto 22s industry-standard protocols (mistic, Optomux, or Pamux) to control the I/O and communicate either serially or in parallel. Field devices are wired directly to the top-mounted removable connectors on the SNAP I/O modules. The module and rack design allows modules to simply snap on and off the mounting rack. SNAP racks use a retention-rail locking system that holds modules securely to the rack. Normally, a hold-down screw is not required. However, for applications that require additional mounting security, SNAP racks have provisions for two 4-40 by 1/2" standard machine screws to hold each module in position. All SNAP racks offer panel mounting and the option of DIN-rail mounting. SNAP racks use a single 5 VDC power source. Power Requirements: 5 VDC +/- 0.1 VDC at 200mA maximum (700mA with brain board). Operating temperature range: 0 to 70 degree celsius. Relative humidity: 95 percent, non-condensing. Length: 5.74". Center to center length: 3.53".

Underwriters Laboratory, IEC 950: 1991-09, 89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
