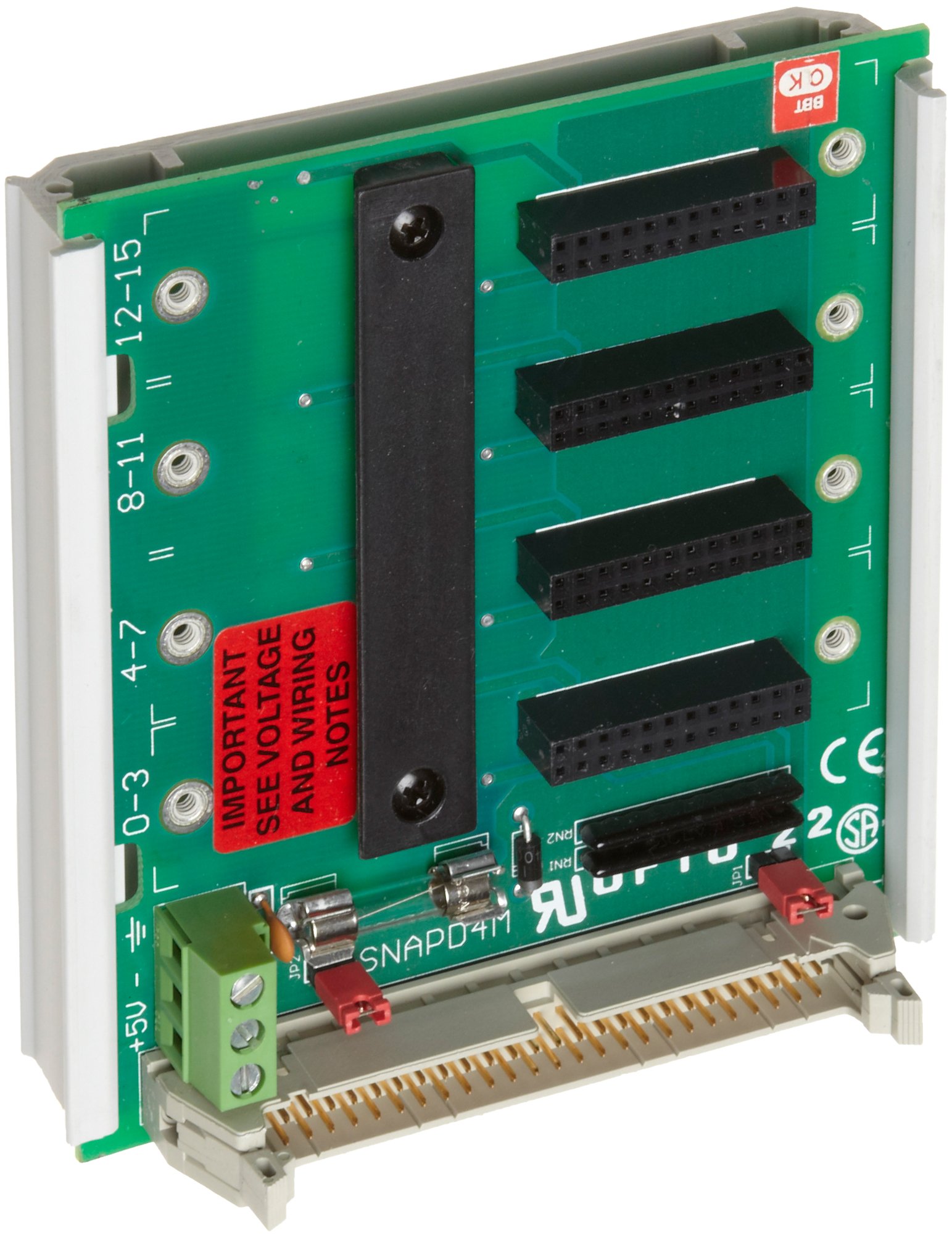

Opto 22 SNAP-D4M Snap D-Series 4 Module Rack

Be the first to review this item

ASIN B0058UVFNI

Specifications for this item
Number of Items
1
Part Number
SNAP-D4M
Temperature Range
0/70  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
70  Degrees Celsius
UNSPSC Code
39121552
Overall Length
4.19  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 13 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Ideal for discrete control applications
  • Control directly or through an Opto 22 PC adapter card
  • Use panel or DIN-rail mounting
  • Modules snap into place
  • Number of center postions: 2

Package Details

Shipping Weight: 0.4 pounds
Package Size: 6.7 x 5 x 1.6 inches

Product Description

SNAP D-series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4-channel digital modules. These racks use an industry-standard 50-pin header connector, which allows these racks to be used in a variety of applications. The logic side of the I/O circuitry can be controlled directly or by using an Opto 22 PCI-AC5 (PCI bus) or G4AC5 or AC5 (ISA bus) PC adapter card. In addition, the 4-module-position SNAP-D4M can be used with Opto 22s Classic brain boards. These boards use one of Opto 22s industry-standard protocols (mistic, Optomux, or Pamux) to control the I/O and communicate either serially or in parallel. Field devices are wired directly to the top-mounted removable connectors on the SNAP I/O modules. The module and rack design allows modules to simply snap on and off the mounting rack. SNAP racks use a retention-rail locking system that holds modules securely to the rack. Normally, a hold-down screw is not required. However, for applications that require additional mounting security, SNAP racks have provisions for two 4-40 by 1/2" standard machine screws to hold each module in position. All SNAP racks offer panel mounting and the option of DIN-rail mounting. SNAP racks use a single 5 VDC power source. Power Requirements: 5 VDC +/- 0.25 VDC at 200mA max. (700mA with brain board). Operating temperature range: 0 to 70 degree celsius. Relative humidity: 95 percent, non-condensing. Lenght: 4.19"/106.43mm. Center to center length: 1.98.

Underwriters Laboratory, IEC 950: 1991-09, 89/336/EEC, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
