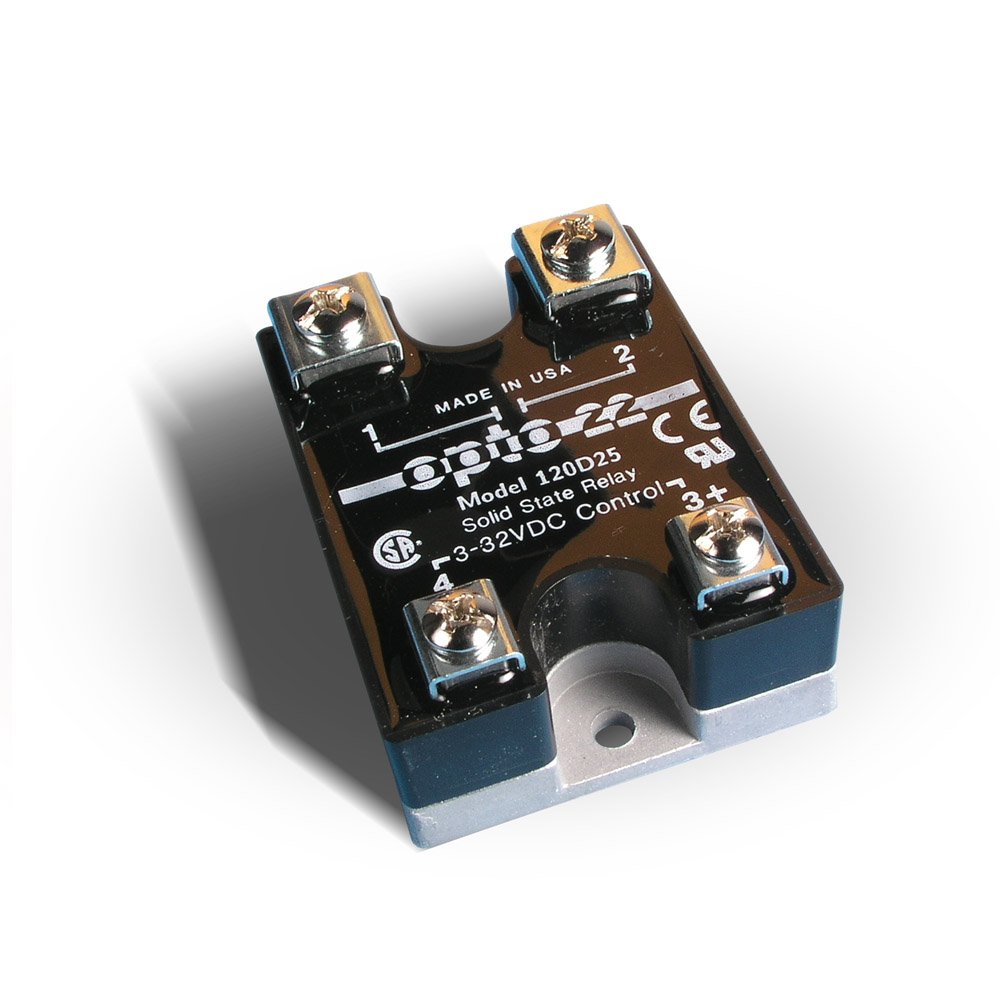

Opto 22 120D25 DC Control Solid State Relay, 120 VAC, 25 Amp, 4000 V Optical Isolation, 1/2 Cycle Maximum Turn-On/Off Time, 25 - 65 Hz Operating Frequency

Be the first to review this item

ASIN B0058UX2YS

Specifications for this item
Number of Items
1
Part Number
120D25
Temperature Range
-40/100  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
100  Degrees Celsius
Current Rating
25  Amps
UNSPSC Code
39122300
LowerTemperature Range
-40  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 20 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Solid state relay for fast response and high vibration resistance
  • Panel mount for attaching to a conductive panel or heat sink
  • Zero-voltage switching to reduce arcing and extend the life of the device
  • Built-in snubber for preventing arcing across contacts
  • UL Recognized for safety, CSA and CE certified for quality assurance

Package Details

Shipping Weight: 0.15 pounds
Package Size: 2.9 x 2.8 x 1.5 inches

Product Description

This Opto 22 120D25 solid state relay provides faster response time than an electromechanical relay and resists vibration. The panel mount requires the use of a thermal interface material such as a pad or compound (not included) placed between the back of the relay and the conductive panel or heat sink and is attached with screws (not included). On the front of the relay, four terminal screws attach control and load wires. The diode has an optical isolation of 4,000 VAC, and the device has a voltage rating of 120 VAC and a current rating of 25 amp. It has zero-voltage switching to reduce arcing and to extend the life of the device, with a maximum 1/2 cycle turn on/off time. It also has a built-in snubber for preventing arcing across contacts. This solid state relay is suitable for use in industrial process control applications such as temperature control, motors, lamps, solenoids, valves, and transformers, among others.

Specifications
Relay terminalsScrew
Coil typeDC
Resistance1,000 ohm
Optical isolation input to output4,000V
Input Voltage120 VAC
Current rating25 amp
Signal pick-up voltage3 VDC
Signal drop-out voltage1 VDC
Thermal resistance1.2 C/W
Operating temperature-40 to +100 degrees C
Dimensions*57 x .44.5 x 24.6 mm (H x W x D)
Standards metUL (Underwriter's Laboratories)
CSA (Canadian Standards Association)
CE (European Conformity)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Relay switches (also called an electrical relay or an electrical relay switch) use a small amount of power to control a larger source of power connected to electrical devices such as car motors, computers, and lighting installations. A basic relay switch has a control circuit with an electromagnetic coil and a load circuit with contacts and a lever. When current flows into the relay switch, it moves through the coil and a magnetic field is created, which causes the lever in the load circuit to move between contacts, either turning the device on or off. In a normally open (NO) relay switch, when power is supplied to the relay, the load circuit is closed and the power source connected to the relay is turned on. In a normally closed (NC) relay switch, when power is supplied to the relay, the load circuit is open and the power source connected to the relay is turned off. In other types of relay switches, non-moving parts such as transistors or semiconductors can be used as the control circuit to operate the switching mechanism. Relay switches can be controlled with an external switch, such as a light switch, or they can be connected to an automatically switched power source, such as a car ignition. One relay can operate multiple switches, and multiple relays can be operated with a single switch, with each relay operating independently from the other relays in the system.

Opto 22 manufactures controllers for automating equipment, input/output (I/O) systems, solid-state relays, and software products that link electric, mechanical, and electronic devices to networks and computers. The company, founded in 1974, is headquartered in Temecula, CA.
