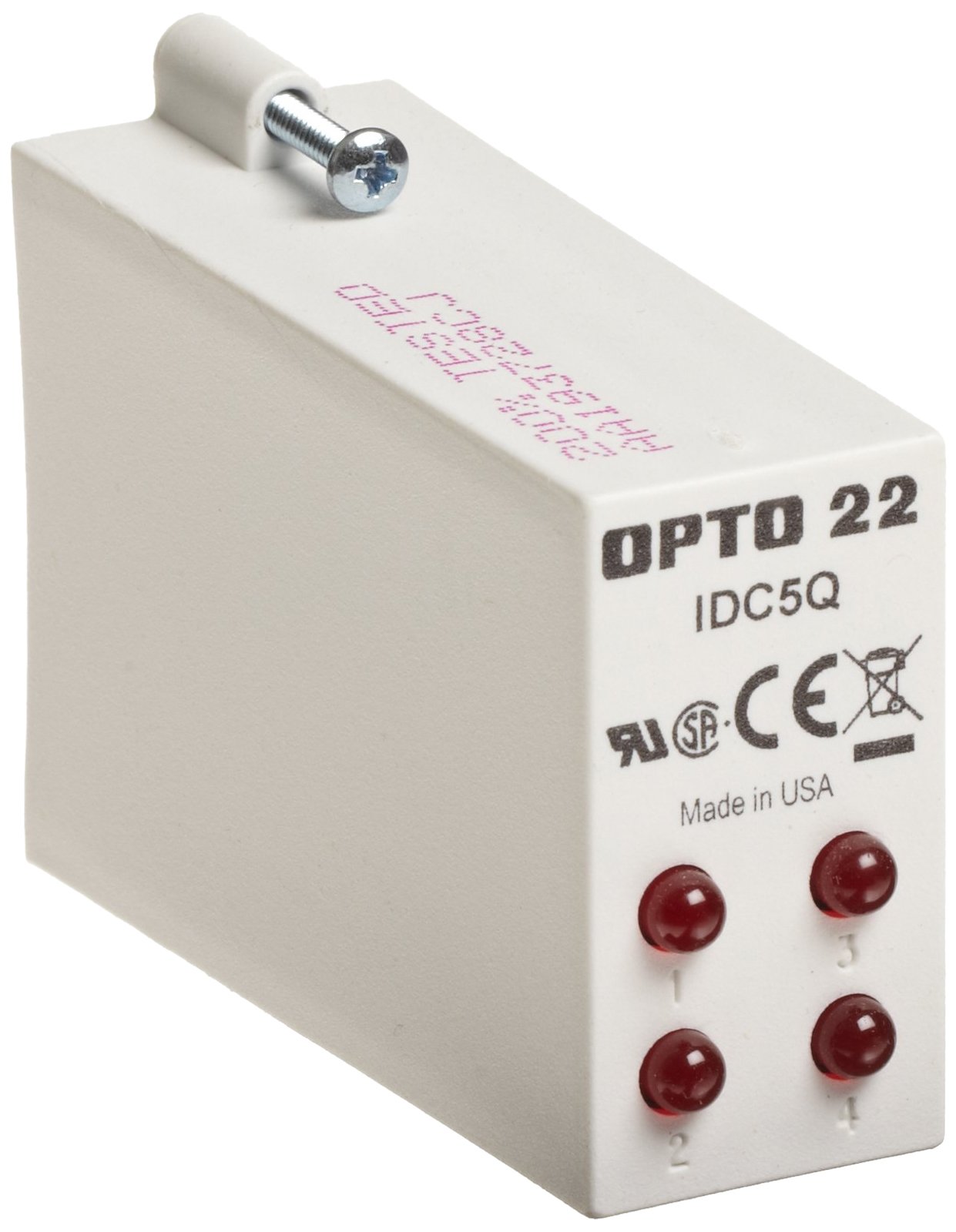

Opto 22 IDC5Q DC Input, 4 Channel, 10-32 VDC, 5 VDC Logic, 4000 Vrms I/O Isolation, 29 milliamperes Input Current
Be the first to review this item
ASIN B00597VSSW
Specifications for this item
- Brand Name
- Opto 22
- Current Rating
- 29 milliamps
- LowerTemperature Range
- -30 Degrees Celsius
- Number of Items
- 1
- Part Number
- IDC5Q
- Temperature Range
- -30/70 Degrees Celsius
- Upper Temperature Range
- 70 Degrees Celsius
In Stock (4)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 29? Order in-stock items in the next 19 hours 39 minutes and choose One-Day Shipping at checkout.
Key Features
- This module can be used for both AC and DC input signals
- Operating ambient temperature: -30 to 70 degree C
- Isolation, input-to-output: 4000 Vrms
- Output voltage drop: 0.4 volts at 50 mA; output current: 50 mA
- Output leakage with no input: 100 microamperes maximum at 30 VDC ; output transistor: 30 volts breakdown
Package Details
Shipping Weight: 0.25 pounds
Product Description
IDC5Q 4-Channel DC Input 10–32 VDC, 5 VDC Logic Quad Pak modules contain the equivalent of four single channel I/O circuits in a single high-density package. Each Quad Pak module can be divided into two pairs with each pair sharing a common connection. The Quad Pak modules are designed to plug into the Quad Pak high-density I/O mounting racks only and cannot be plugged into single-channel racks. Quad Pak modules are designed to work with a 5 VDC logic voltage only and can be used with Optomux, Pamux, and Mistic protocol brain boards and mounting racks, as well as racks using a direct cable connection to a computer. DC input modules are used for sensing ON/OFF DC voltage levels. All DC input modules, with the exception of the IDC5BQ, are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free "clean" switching. The IDC5BQ module is a fast- switching input module for signals produced by photoelectric switches, encoders, DC proximity switches, or TTL devices. Each module provides up to 4,000 Vrms of optical isolation between field inputs and the logic side of the circuit. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as: proximity switches, limit switches, selector switches, push button and toggle switches, photoelectric switches, ttl- compatible devices.
Underwriters Laboratory, Canadian Standards Association, IEC 950: 1991-09, 89/336/EEC
