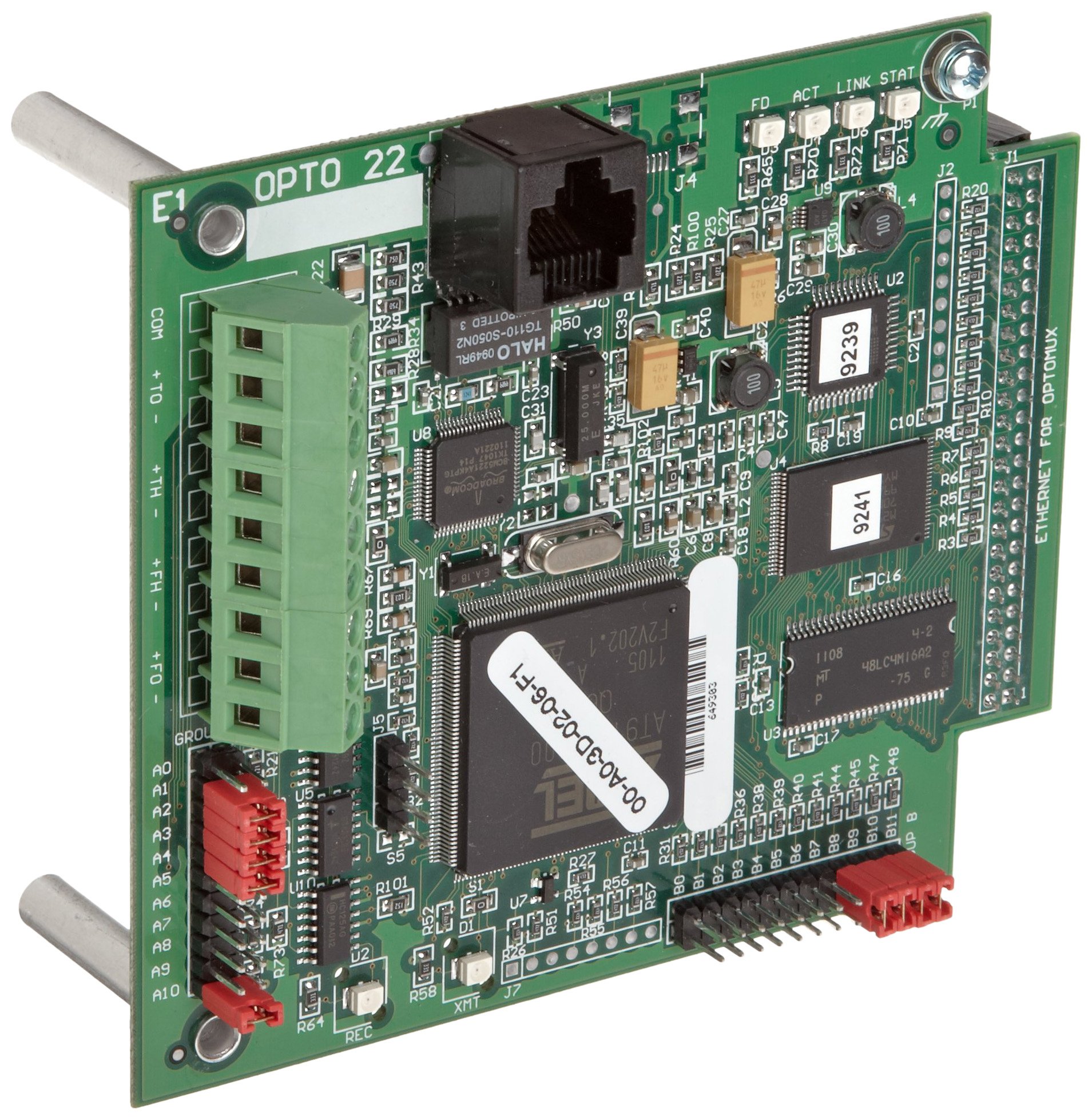

Opto 22 E1 16 Channel Digital Optomux Brain Board for Serial and Ethernet Networks, 5.0-5.2 VDC at 0.5 Amps

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Temperature Range
0/70  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
70  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 29? Order in-stock items in the next 16 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Drop-in replacement for existing B1 brain boards on an optomux serial network
  • Dual network connectivity
  • RS-422/485 serial and 10/100 Mbps ethernet
  • Optomux, Modbus/TCP, and OptoMMP protocol support
  • Can use Opto 22 PAC Project software for control, HMI, and OPC server

Package Details

Shipping Weight: 0.45 pounds
Package Size: 6.9 x 5.8 x 2.3 inches

Product Description

E1 brain boards are Ethernet-ready I/O and communication processors for digital and analog I/O systems. The E1 connects to a rack of Opto 22 G1, G4, or Quad Pak digital I/O modules, while the E2 connects to a rack of Opto 22 G1 analog I/O modules. Each brain board communicates with a host computer and performs control functions for each I/O point. Designed as drop-in replacements for Opto 22's serial-based B1 brain boards, E1 brain boards connect to standard 10/100 Mbps Ethernet networks while including support for serial Optomux-based networks. Power Requirements: 5.0-5.2 VDC at 0.5 amps (excludes digital and analog module power requirements). Operating temperature: 0 degree C to 70 degree C. Storage temperature: -40 degree C to 85 degree C. Humidity: 0-95 percent humidity, non-condensing. Ethernet network interface: terminal block; E2: Terminal block (on mounting rack), Data rates: 300, 600, 1200, 2400, 4800, 9600, 19200, and 38400 baud, Supported protocols: Optomux, Network Range: Up to 32 Optomux stations configured for multidrop can be used on a serial network of up to 1524 m (5000 ft.) total length. Up to 256 Optomux stations and longer line lengths can be used by installing network repeaters. Up to 256 Optomux stations configured for repeat mode can exist on a network. Analog I/o (E2): read point, write point, input averaging, min/max recording (peak and valley), high/low range testing, offset and gain calculation, waveform generation, watchdog timer. Modbus/TCP, OptoMMP, and OPC I/O Functions: With these protocols, the following brain-based features are not available: No input averaging or waveform generation (E2). LED Indicators: Status, Link, Activity, Full duplex, Transmit (serial), Receive (serial). Jumper-selectable Serial Options: Group A: Multidrop or repeat mode, RS-485 termination and biasing, Group B: Serial address (0 to 255), baud rate, 2- or 4-pass protocol.
