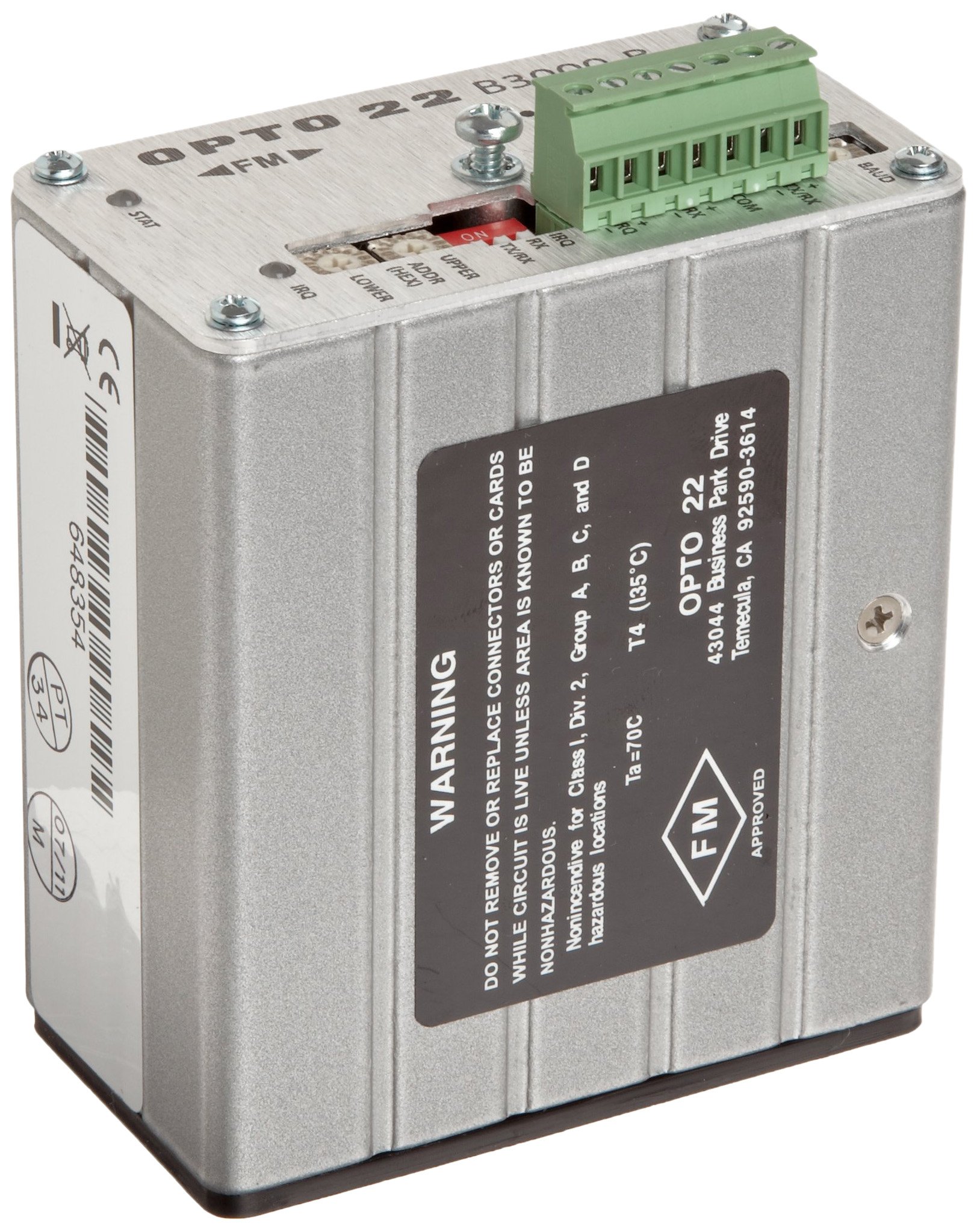

Opto 22 B3000-B SNAP Analog and Digital Brain, Mistic Protocol, 5.0-5.2 VDC at 750 mA

Be the first to review this item

ASIN B0058UXVOY

Specifications for this item
Number of Items
1
Part Number
B3000-B
Temperature Range
0/60  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
60  Degrees Celsius
UNSPSC Code
32101636

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Aug 21? Order in-stock items in the next 5 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Drop-in replacement for the B3000 mistic serial brain; connects to a SNAP-PAC-S1 or S2 controller
  • Can be migrated to PAC project; supports the mistic serial protocol
  • Supports four-channel digital modules in rack positions 0-7
  • Supports one- and two-channel analog modules in all rack module positions
  • Compatible with SNAP B-series mounting racks

Package Details

Shipping Weight: 1 pounds
Package Size: 7.3 x 6.5 x 3.9 inches

Product Description

The B3000-B is a mistic serial brain designed as a modern drop-in replacement for the serial B3000 brain, which is obsolete as of October 2009. The B3000-B has the same functionality as the B3000, except that it does not support the Optomux protocol. Customers requiring an Optomux brain should contact Opto 22 Product Support for options. Like the older B3000, the B3000-B is a high-performance processor used to remotely control a mix of SNAP analog and digital I/O modules on a B-series rack. The brain connects to an Opto 22 controller or a host computer over an RS-485 serial link. It works with both legacy FactoryFloor (mistic) controllers, such as the SNAP-LCM4 and SNAP-LCSX, and with SNAP PAC S-series controllers. (With a SNAP PAC controller, PAC Project Professional is required). Power requirements: 5.0-5.2 VDC at 750 mA maximum (does not include module power requirements). Operating temperature: 0 to 60 degree C. Storage temperature: -40 to 85 degree C. Humidity: 0-95 percent humidity, non-condensing. Communications interface: RS-485, 2- or 4-wire, twisted pair(s), with shield. Data Rates: 300 baud to 230.4 Kbaud. Range: Multidrop 32 stations maximum between repeaters; up to 3000 ft (914 m) between repeaters. LED indicators: SERIAL (transmit/receive), STAT (brain status), IRQ (interrupt). Switch Selectable Options: address, baud rate, binary/ASCII, CRC/checksum. Digital mistic functions: input latching (10 micro second), timing (1 msec resolution), counting (32 bit), totalizing, output timing (1 msec resolution), pulse generation (1 msec resolution), time proportional output (100 msec minimum period), frequency measurement (up to 20 Khz), event reactions, pulse measurement, period measurement. Analog mistic functions: PID loop control, high/low limit monitoring, thermocouple linearization, digital filtering, ramping, waveform generation, programmable offset and gain, engineering unit scaling, square root extraction, event reactions.

Factory Mutual, IEC 950: 1991-09, 2002/95/EC, Defense Federal Acquisition Regulation Supplement
