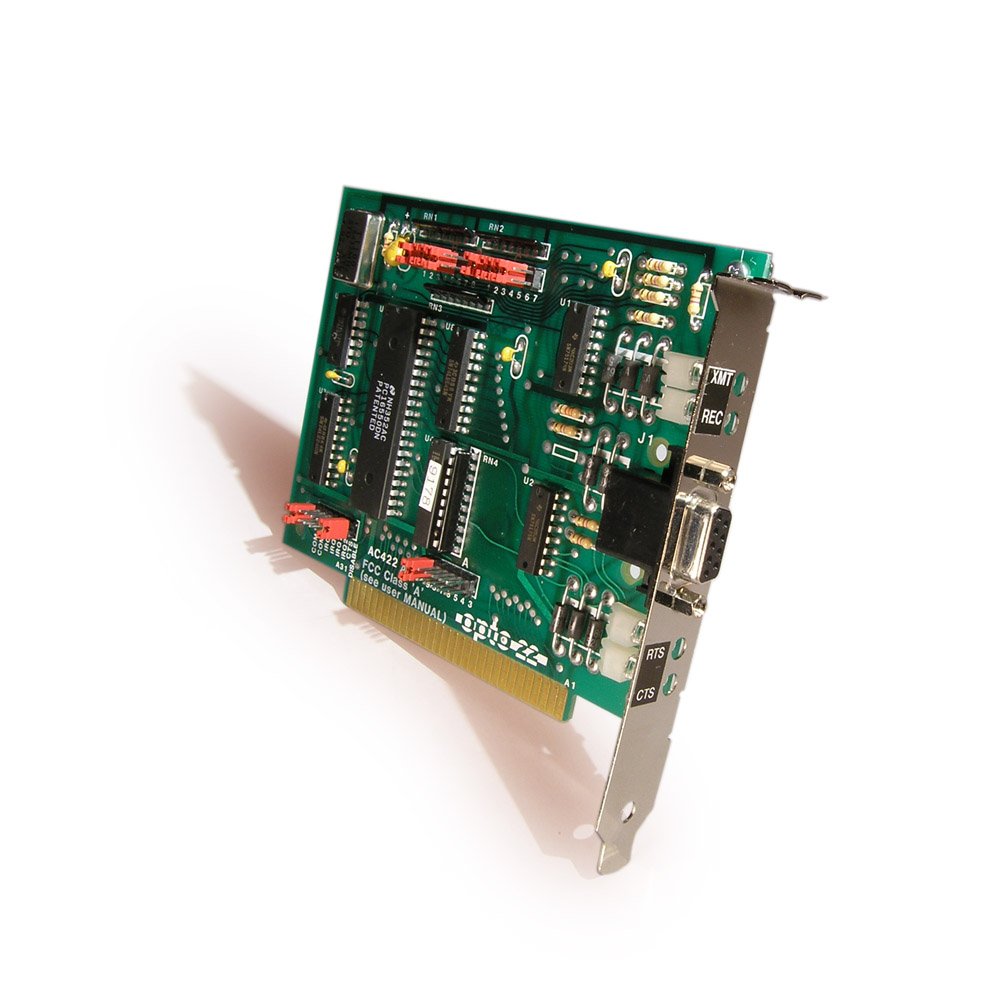

Opto 22 AC422AT ISA Bus Serial Port RS422/485, Non-isolated, 250Ma at 5VDC, 150 mA at +/-12 VDC

Be the first to review this item

ASIN B0058UUWV4

Specifications for this item
Number of Items
1
Part Number
AC422AT
Temperature Range
-0/60  Degrees Celsius
Brand Name
Opto 22
Upper Temperature Range
60  Degrees Celsius
UNSPSC Code
45111807

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 7 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • The RS-422/485 adapter cards are seen by the computer as a standard serial port and will pass the IBM advanced diagnostics program if a loop-back connector is used
  • Operating temperature range 0 degree C to 60 degree C, 95 percent relative humidity, non-condensing
  • Power requirements: 250 mA at 5 VDC, 150 mA at 12 VDC, 150 mA at 12 VDC
  • Baud rate up to 38,400 baud, distance up to 5,000 feet
  • Communications: full duplex over two twisted pairs and a ground additional twisted pairs for RTS and CTS, indicators: transmit, receive, RTS, and CTS

Package Details

Shipping Weight: 0.8 pounds
Package Size: 9.9 x 6.6 x 2.2 inches

Product Description

The AC422AT is a non-isolated RS-422/485 adapter card that plugs directly into the IBM PC bus. The AC422AT is transientprotected, features bi-directional handshake lines for RTS and CTS, and can drive up to 100 devices on a multidrop network. The AC422AT can be jumpered for operation as COM1, COM2, COM3, or COM4 and offers full hardware and software compatibility with IBM PC, XT, and compatible computers. The AC422AT use the same UART used in the AT model computers. Interface: RS-422/485 (9-pin, D-shell female connector).
