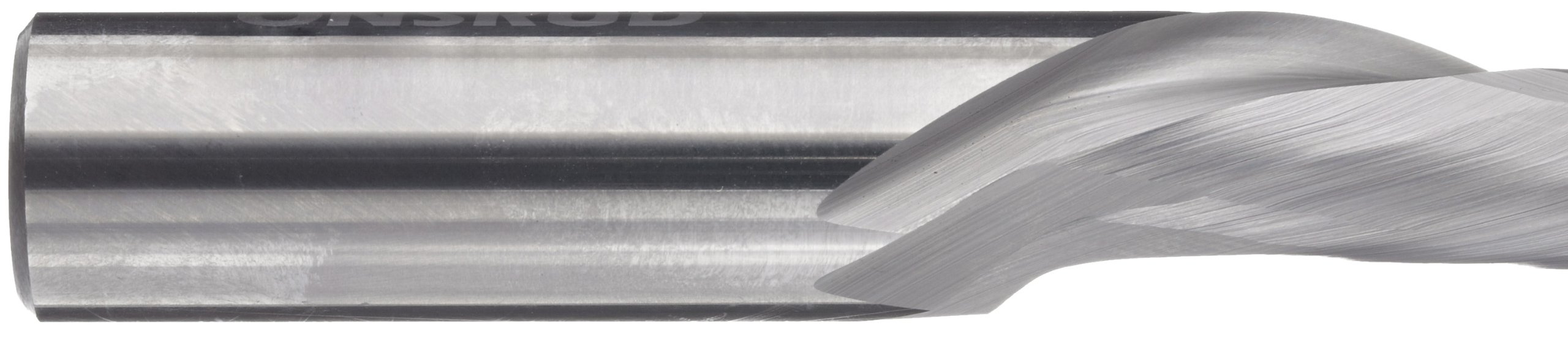

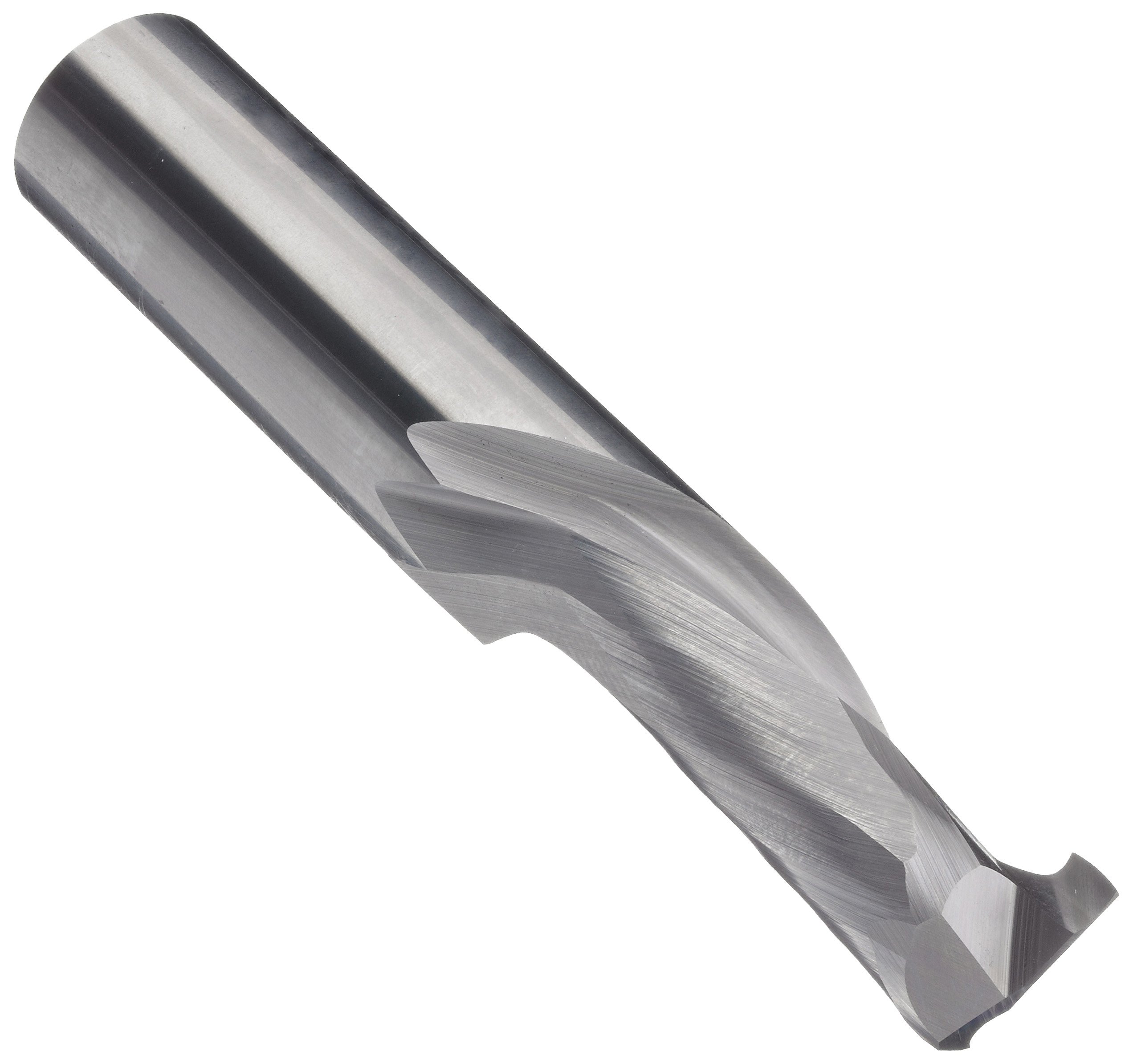

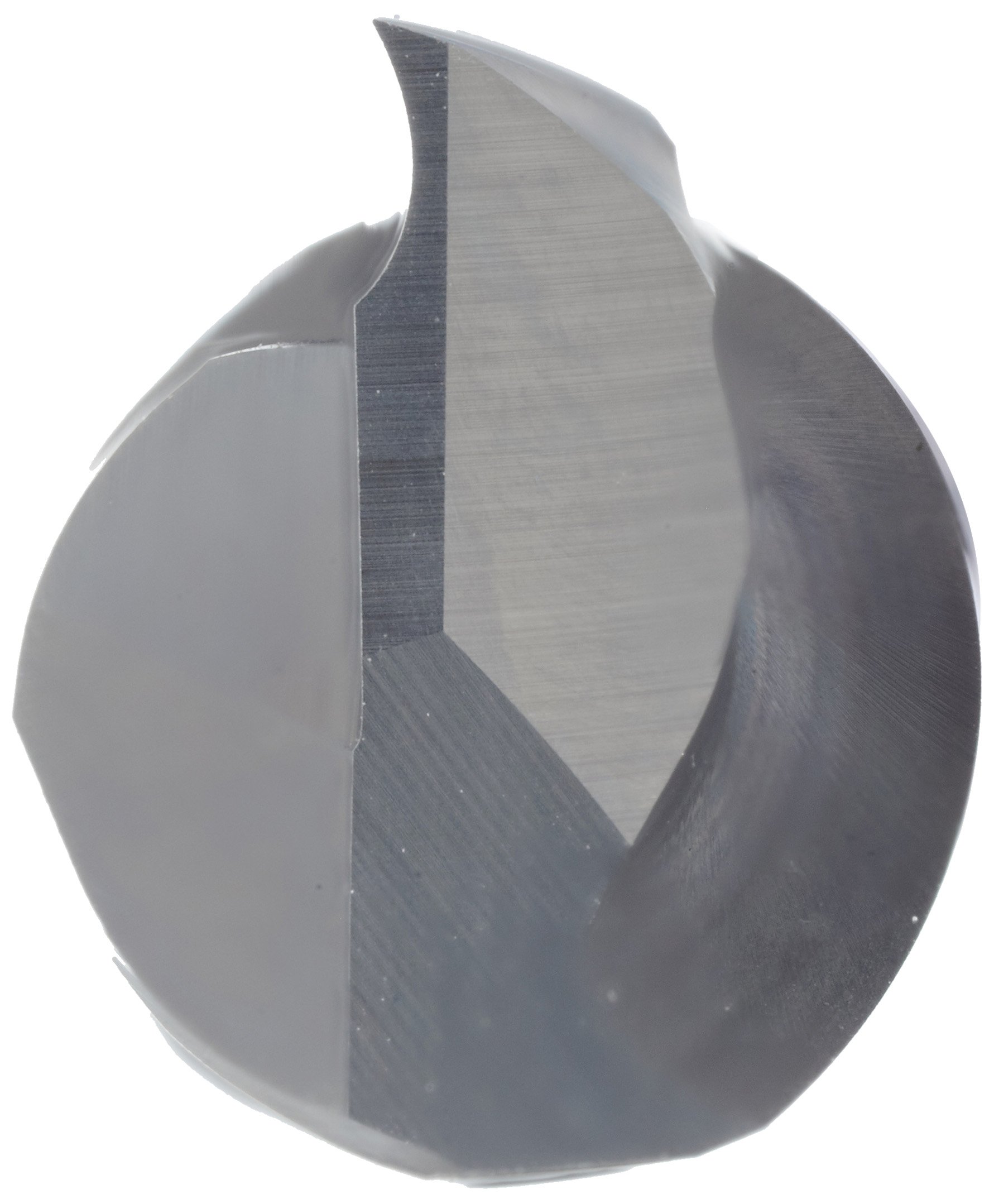

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

LMT Onsrud 60-100MW Series Carbide Square Nose End Mills, Inch, Uncoated (Bright) Finish, 30 Degree Helix, For Use With Laminated Materials

Be the first to review this item

Product Specifications
Manufacturer Series Number
60-100MW Series
Cutting Direction
Right Hand
Compatible Material
Laminated Materials
Finish Types
Uncoated (Bright)
End Cut Type
Center Cutting
Shank Type
Round
Material Type
Carbide
UNSPSC Code
27112803
Cutting Angle
30  Degrees
Brand Name
LMT Onsrud
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 2 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Cutting Diameter Shank Width Cutting Length Overall Length Number of Flutes Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-14 of 14
3/8 " 3/8" 0.8750" 3.0000" 2 60-123MW B0020B9UUS yes $64.53 Buy Options
3/8 " 3/8" 1.1250" 3.0000" 1 60-120MW B0020B0QJ2 yes $67.20 Buy Options
3/8 " 3/8" 0.8750" 3.0000" 3 60-126MW B0020AXL4U yes $102.12 Buy Options
3/8 " 3/8" 1.1250" 3.0000" 2 60-127MW B0020AVKMU yes $60.93 Buy Options
3/8 " 3/8" 1.1250" 3.0000" 2 60-124MW B0020AZ5VW yes $81.04 Buy Options
1/2 " 1/2" 2.1250" 5.0000" 2 60-181MW B0020AZ8Z0 yes $117.49 Buy Options
1/2 " 1/2" 0.8750" 3.0000" 2 60-163MW B0020B15I8 yes $91.80 Buy Options
1/2 " 1/2" 1.3750" 3.5000" 2 60-173MW B0020AZ8LE yes $90.49 Buy Options
1/2 " 1/2" 1.1250" 3.0000" 1 60-167MW B0020AVM0U yes $32.50 Buy Options
1/2 " 1/2" 1.6250" 4.0000" 2 60-172MW B0020AVMQ4 yes $84.44 Buy Options
1/2 " 1/2" 1.1250" 3.0000" 2 60-169MW B0020AXMNA yes $92.50 Buy Options
1/2 " 1/2" 1.3750" 3.5000" 2 60-171MW B001VY04QE yes $71.69 Buy Options
3/4" 3/4" 1.8750" 4.0000" 2 60-196MW B0020B180S yes $239.85 Buy Options
3/4" 3/4" 2.2500" 5.0000" 2 60-194MW B0020ATKF4 yes $228.77 Buy Options

Key Features

  • Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Round shanks allow use with a wide variety of toolholding systems
  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
  • Single flute, 30 degree angle

Product Description

Designed for maximum life when cutting in high wear applications. Unique geometries and carbides improve the wear characteristics of the tool under abrasive applications with superior part finish. Use on double sided laminated and vaneered materials.
