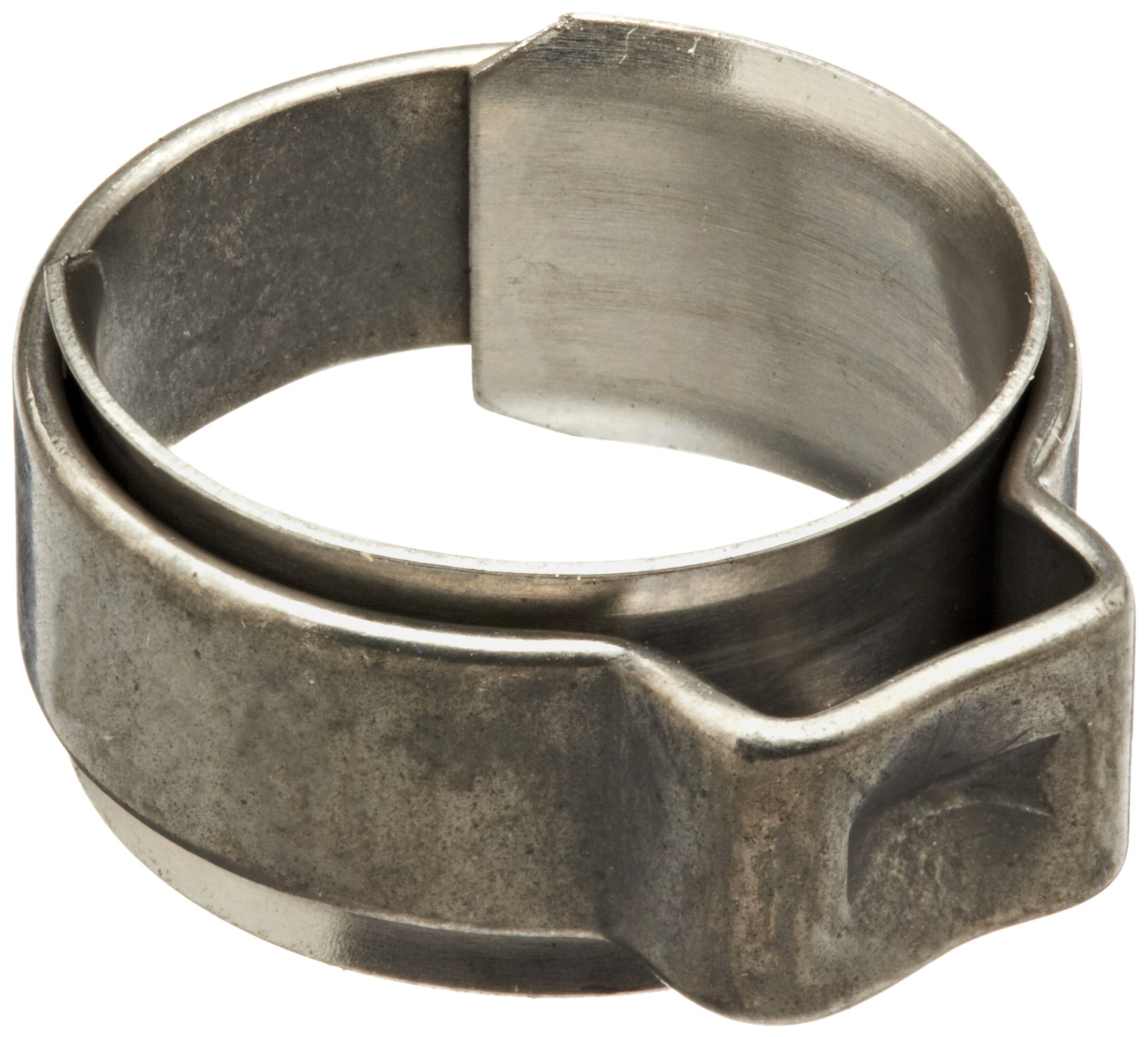

Oetiker 154 Series Stainless Steel Hose Clamp with Insert, One Ear

Be the first to review this item

Product Specifications
Manufacturer Series Number
154
Item Shape
One Ear
Material Type
Stainless Steel
Brand Name
Oetiker

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 8 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 21 Next 1 »
For Hose/Tube OD Min Diameter Max Diameter Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 21 Next 1 »
  2.5 mm 2.9 mm 100 15400010 B00AIZ4C3I Temporarily out of stock. Order now and we'll deliver when available. $120.39 Buy Options
  3.7 mm 4.7 mm 100 15400013 B00AIZ4EH2 2 $85.35 Buy Options
  4.7 mm 5.7 mm 100 15400014 B00AIZ4HEM 1 $43.64 Buy Options
  5.2 mm 6.2 mm 100 15400015 B00AIZ4K2G 8 $39.91 Buy Options
  5.6 mm 6.5 mm 100 15400016 B00AIZ4O4U Temporarily out of stock. Order now and we'll deliver when available. $35.59 Buy Options
  5.9 mm 7 mm 100 15400017 B00AIZ4R0G Temporarily out of stock. Order now and we'll deliver when available. $42.96 Buy Options
  6.3 mm 7.5 mm 100 15400018 B00AIZ4UT4 2 $37.13 Buy Options
  7 mm 8.2 mm 100 15400020 B00AIZ50HU 1 $39.92 Buy Options
  7 mm 8.5 mm 100 15400021 B00AIZ53IQ 2 $44.12 Buy Options
  7.5 mm 9 mm 100 15400022 B00AIZ55LG 5 $39.89 Buy Options
  8.8 mm 10.5 mm 100 15400025 B00AIZ58HC 2 $43.59 Buy Options
  9.1 mm 10.8 mm 100 15400026 B00AIZ5AIE 2 $42.71 Buy Options
  9.6 mm 11.3 mm 100 15400027 B00AIZ5CP0 1 $42.69 Buy Options
  9.5 mm 11.5 mm 100 15400028 B00AIZ5FMA 4 $42.65 Buy Options
  10.3 mm 12.3 mm 100 15400030 B00AIZ5IUE 4 $42.71 Buy Options
  12.3 mm 14.3 mm 100 15400035 B00AIZ5M3W 4 $43.18 Buy Options
  13.1 mm 15.3 mm 100 15400037 B00AIZ5OGM 2 $43.41 Buy Options
  13.9 mm 16.1 mm 100 15400039 B00AIZ5RDC 4 $45.12 Buy Options
  4.2 mm 5.2 mm 100 15400064 B00AIZ5VHO 2 $52.06 Buy Options
9/64 2.9 mm 3.7 mm 100 15400012 B008L47Z32 Usually ships in 4 to 6 weeks $102.67 Buy Options

Key Features

  • Clamp ear is dimpled for increased clamp force
  • Mechanical interlock for secure closure and better corrosion resistance than a spot-weld
  • Thin-walled insert ring for near-uniform compression around the whole circumference of the clamp
  • Suitable for applications involving soft or hard rubbers and plastics
  • Stainless steel for resisting scaling and corrosion

Product Description

This Oetiker 154 Series stainless steel one-ear hose clamp with an insert is for clamping hoses where a more secure hold is needed than that of conventional clamps. It has a thin-walled insert ring for near-uniform compression around the whole circumference of the clamp and is suitable for applications involving soft or hard rubbers and plastics. The dimple or indentation on the ear of the clamp increases the clamping force for a more secure hold, and the mechanical interlock of this clamp keeps it securely closed and provides better corrosion resistance than a spot-weld, which is vulnerable to corrosion. It's also made of stainless steel for resisting scaling and corrosion. This clamp is suitable for attaching hoses to fittings or other devices for applications such as food processing and commercial fishing that involve exposure to corrosive elements, particularly salt water.

Hose clamps attach tubing and hoses to fittings to prevent flow leakage, or are used for hose or wire mounting applications. They come in a variety of designs to distribute uniform pressure over the circumference of hoses to bind them to fittings. Other hose clamp types are used for mounting, strapping, clamping, and positioning hose or wire. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Oetiker manufactures hose clamps, rings, couplings, conveyor chains, hinged belts, and other connecting parts and accessories. The company, founded in 1942 and headquartered in Horgen, Switzerland, meets International Organization for Standardization/Technical Specification (ISO/TS) standard 16949.
