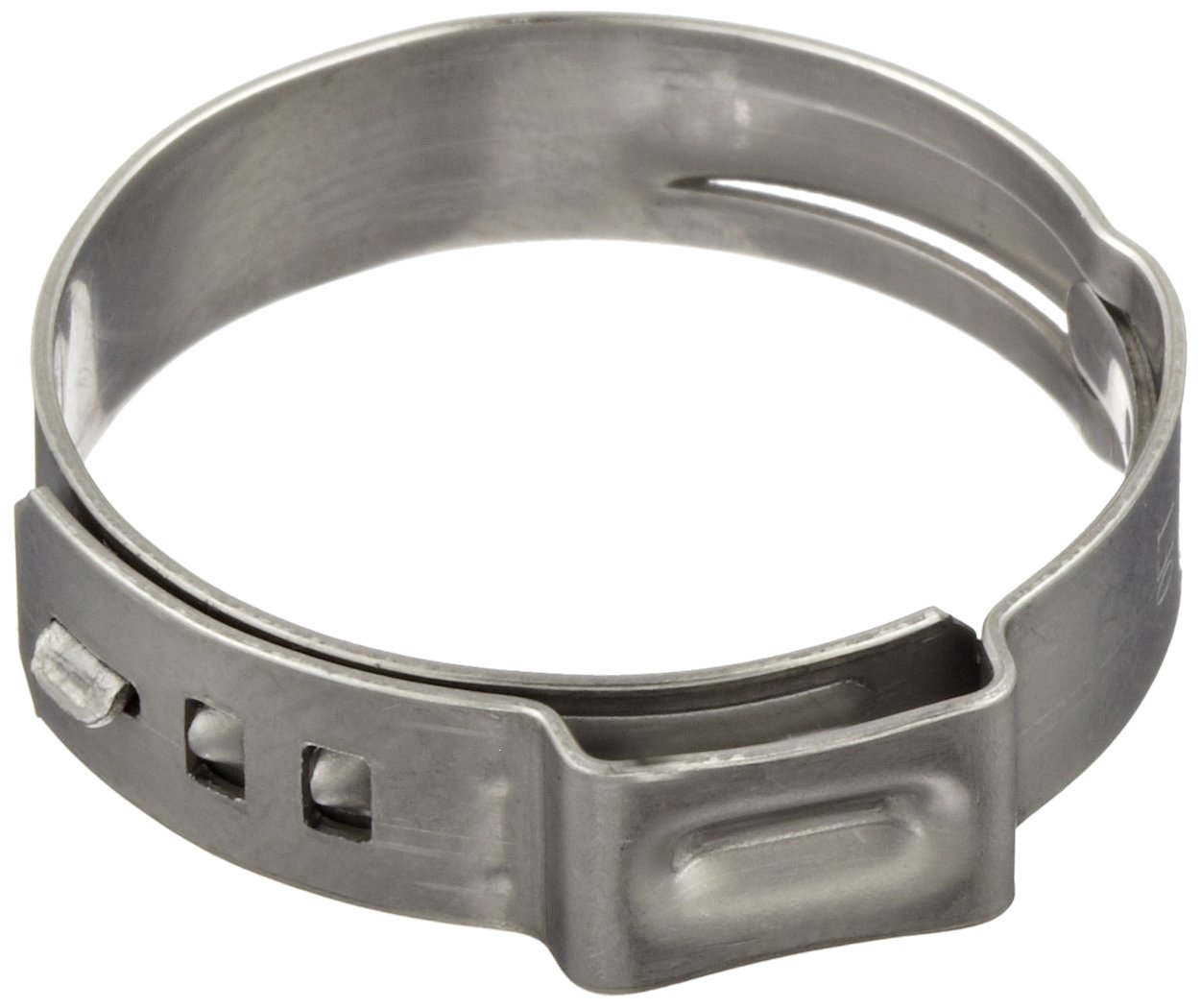

Oetiker 167 Series Stainless Steel Stepless Hose Clamp, One Ear

Be the first to review this item

Product Specifications
Brand Name
Oetiker
Item Shape
One Ear
Manufacturer Series Number
167
Material Type
Stainless Steel

0 items added

To add items,
choose from the table below



Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 7 of 7
For Hose/Tube OD Min Diameter Max Diameter Band Width Band Thickness Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All All All
Currently showing 7 of 7
1/4 5.3 mm 6.5 mm 5 mm 0.5 mm 100 16702488 B008L47D6G In Stock (1) $33.18
3/8 7.8 mm 9.5 mm 5 mm 0.5 mm 100 16700004 B008L47FUU Usually ships in 1 to 2 weeks $31.31
7/16 9.6 mm 11.3 mm 5 mm 0.5 mm 100 16700007 B008L47GEU Usually ships in 4 to 6 weeks $32.02
9/16 12 mm 14.5 mm 7 mm 0.6 mm 100 16700013 B008L47GYU Usually ships in 4 to 6 weeks $32.79
5/8 13.2 mm 15.7 mm 7 mm 0.6 mm 100 16700016 B008L47HLM In Stock (1) $35.72
23/32 15.3 mm 18.5 mm 7 mm 0.6 mm 100 16700020 B008L47ICK Usually ships in 4 to 6 weeks $38.32
1 22.4 mm 25.6 mm 7 mm 0.6 mm 100 16700031 B008L47J0Q In Stock (1) $37.87

Key Features

  • One ear clamp
  • Made of stainless steel
  • Narrow band: concentrates transmission of clamping force, less weight
  • Clamp ear: compensates for component tolerances, adjustable surface pressure
  • Dimple: increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion

Product Description

As a rule, the clamp nominal diameter should be selected so that the outside diameter of the hose, after it has been pushed on to the component to which it is to be fastened (e.g. a hose nipple), is approximately in the middle of the diameter range of the chosen clamp. A clamp can only be considered adequately closed when the ear width (s) has been reduced by at least 40 percent, and the correct closing force was used for assembly. Further information with assembly recommendations and closing force is available. The interlock is a mechanical system for joining the clamp ends to permit closure. Some interlock designs can be opened for radial installation prior to closure.
