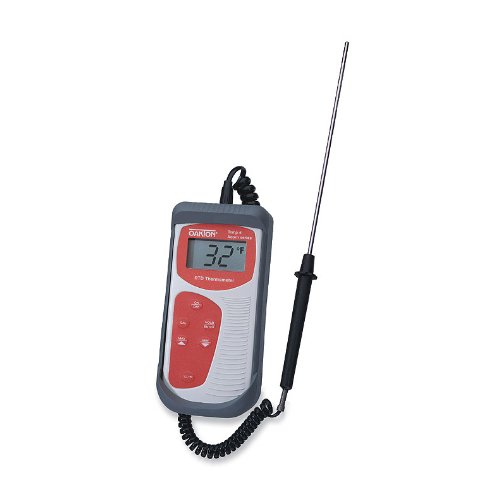

Oakton WD-35626-20 Acorn Temp 6 RTD Thermometer, -200 to 850°C, 5.5" L x 2.7" W x 1.3" H

Be the first to review this item

ASIN B004G8PWZU

Specifications for this item
Number of Items
1
Overall Height
1 1/2  inches
Overall Width
2 3/4  inches
Part Number
WD-35626-20
Brand Name
Oakton
Size Name
-250 to 1372 Degree C
UNSPSC Code
42182200
Display
LCD
Overall Length
5 1/2  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 8 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Standard mini-three-pin connector accepts a variety of 100 O Pt 100 probes
  • Splash proof keypad and HOLD button freezes measured readings
  • Switchable between °C and °F and Displays highest/lowest temperature since meter was switched on, or use Min/Max Hold Mode to continuously update lowest/highest temperature
  • Nonvolatile memory retains calibration data and stored values even if battery is removed.
  • Manual user calibration is a single point offset adjustment to any temperature within the range.

Package Details

Shipping Weight: 1.05 pounds
Package Size: 9.3 x 6.6 x 3.7 inches

Product Description

This thermometer offers high accuracy of RTD technology at an economical price. Positive-action keys with audible clicks are easy to press. MIN/MAX button shows the lowest/highest temperature since the meter was turned on. Hold function freezes measurement reading for viewing. Calibration feature allows user to calibrate meter at almost any location - just place the probe in a bucket of ice water and press the CAL button. The AcornTM Temp 6 RTD meter uses RTD technology to offer a wide measurement range. Use with any two-wire 100 ohm Platinum RTD probe. The large LCD gives you a clear reading at a glance, and warns user of low-battery conditions or calibration errors. Built-in stand and continuous mode operation allow the meter to be sued for bench top use; or use power saver mode to turn meter of after 17 minutes and save on battery life. Other features include low-battery indication, °F/°C selection, and protective rubber boot with stand. Thermometer accepts one 100 ω RTD probe with three-pin connector. This new thermometer offers the convenience and functionality of expensive meters at an economical price. Specifications: Range: -200 to 850°C / -328 to 1562°F. Resolution: 0.1°C / 0.1°F (-99.9 to 199.9°C / -147.8 to 391.8°F); 1.0°C / 1.0°F (<-99.9°C / -147.8°F and >199.9°C / 391.8°F). Accuracy: +/- 0.2°C / 0.4°F (-99.9 to 199.9°C / -147.8 to 391.8°F); +/- 2.0°C / 4.0°F (<-99.9°C / -147.8°F and >199.9°C / 391.8°F). Input connector: three-pin locking connector. Display: single-line LCD, 7⁄8" high. Power: 4 1.5 V AA batteries, 200 hours continuous use. Operating Temperature: 0 to 50°C. Probe: one 100 Ω platinum RTD with mini-three-pin DIN connector (not included). Dimensions: 5.5" x 2.7" x 1.3" (14 x 7 x 3.5 cm). Weight: 0.9 lb (0.4 kg) Oakton #: WD-35626-20
