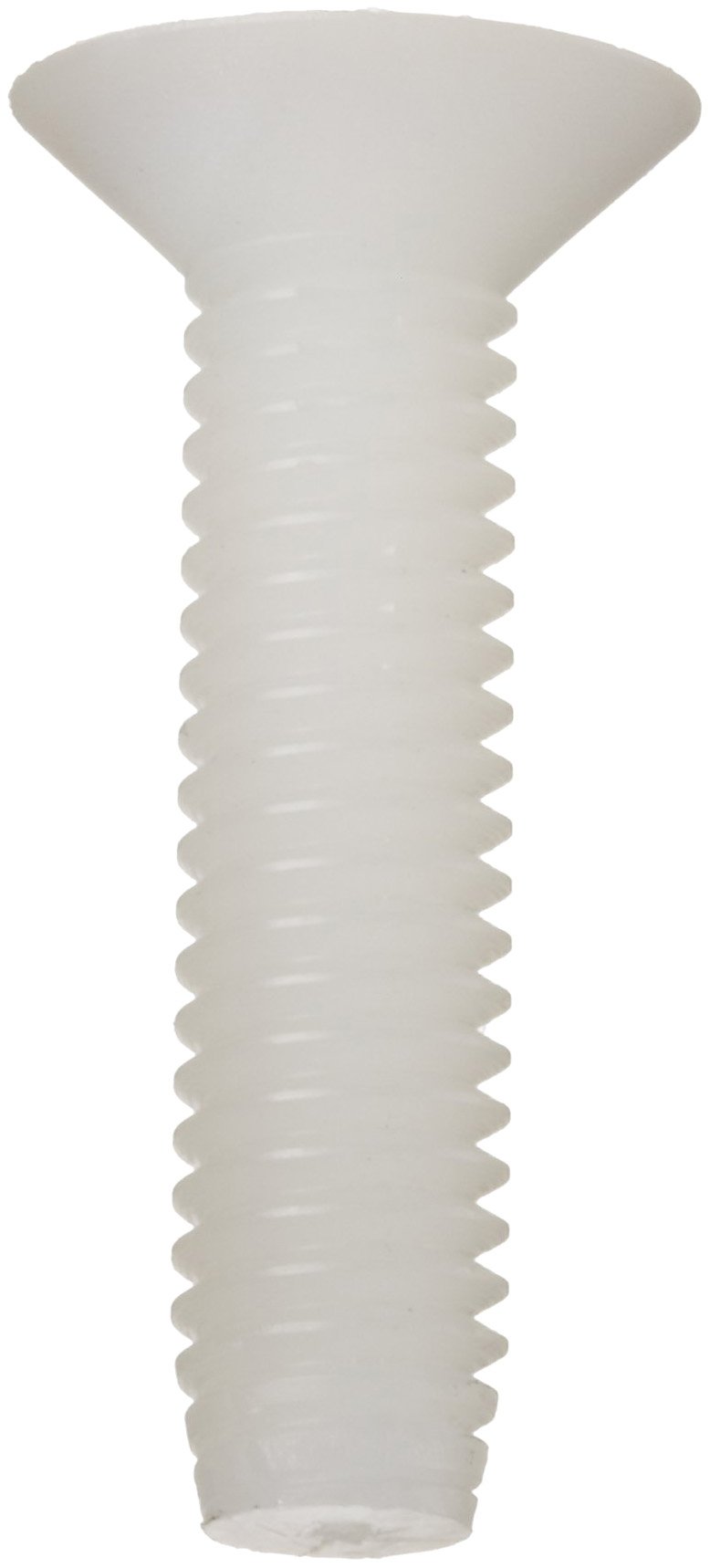

Nylon 6/6 Machine Screw, Flat Head, Phillips Drive (Metric)
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Color Name
- Off-White
- Drive Style
- Phillips
- Exterior Finish
- Plain
- Head Angle
- 90 Degrees
- Head Style
- Flat
- Material Type
- Nylon 6/6
- Part Number
- B003R7JD7Y
- Self Locking Mechanism
- None
- System of Measurement
- Metric
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- Machine Screws are often used with nuts or driven into tapped holes
- Nylon 6/6 is suitable where non-conductivity, corrosion resistance, and cost are important considerations
- Flat head style allows fastener to sit flush to the surface
- Phillips drive is designed to cam out under too much torque
Product Description
Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Nylon 6/6 is a general purpose thermoplastic with outstanding resistance to organic chemicals, acids and alkalis. Nylon wears well against other surfaces; it is readily machinable and may be milled, turned and cut with conventional machine tools. It does exhibit some dimensional swelling in wet applications which should be taken into account with its use. Tensile strength of this material is 12,000 psi (pounds per square inch).
Flat head fasteners are designed to fit flush to the surface when used with countersunk holes. Length is measured from the top of the head. The Phillips drive style was originally designed so that the driver would slip out under extreme torque, preventing over-tightening and damage to the fastener or the material.
A threaded fastener's size name includes information about the major external diameter (in millimeters), followed by the thread pitch (millimeters per thread), which indicates if it is coarse or fine.
