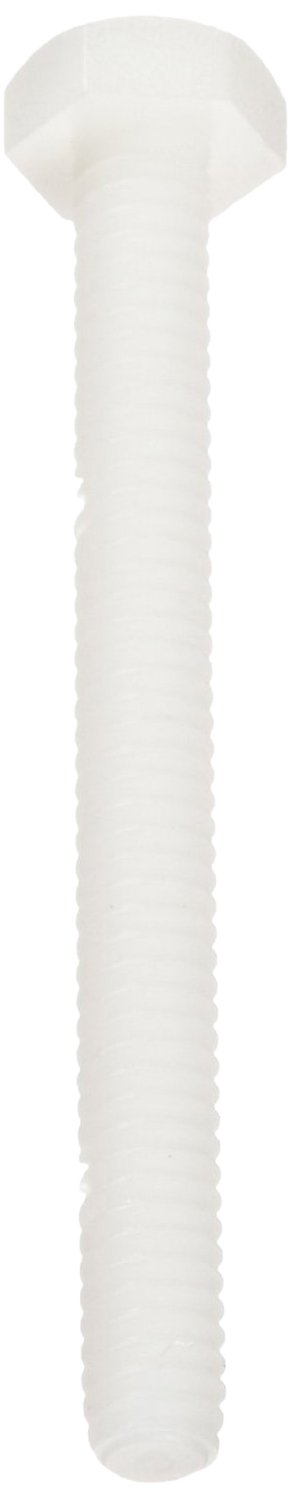

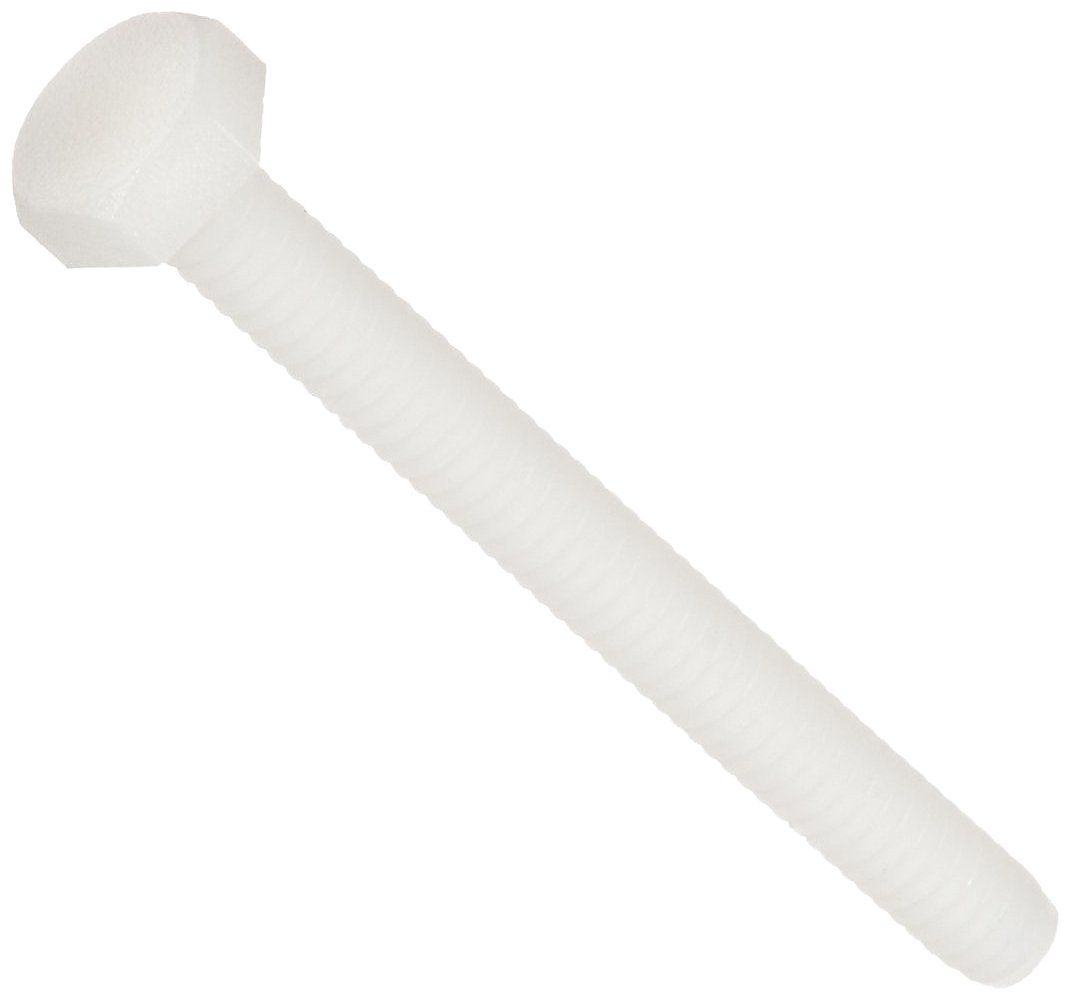

Nylon 6/6 Hex Bolt, Plain Finish, Off-White, External Hex Drive, Meets ASTM D4066/ASTM D6779, 3" Length, Partially Threaded, 1/4"-20 Threads (Pack of 100)

Be the first to review this item

ASIN B005U98Y6I

Product Specifications
Brand Name
Small Parts
Part Number
B005U98Y6I
Head Height
0.150  inches
Length
3  inches
Fastener Size
1/4"-20
Thread Size
1/4"-20
Thread Coverage
Partially Threaded
Head Size Name
7/16 inches
Pkg Qty
100
Tensile Strength Max
12000  PSI
Thread Class
2A
Thread Length
3  inches
Upper Temperature Range
185  Degrees Fahrenheit
Specification for this product family (See all  products)
Drive Style
External Hex
Exterior Finish
Plain
Specification Met
ASTM D4066 , ASTM D6779
Material Type
Nylon 6/6
UNSPSC Code
31161501
Thread Style
Right Hand
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 5 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Nylon 6/6 provides resistance to abrasion, corrosion, and many chemicals, is nonconductive, and is a strong yet lightweight plastic
  • External hex drive tightens from the side with a wrench, enabling use when there is no space above for a driver
  • Meets ASTM D4066 and ASTM D6779 specifications

Package Details

Shipping Weight: 0.55 pounds
Package Size: 6 x 4.6 x 2.5 inches

Product Description

The off-white nylon 6/6 hex bolt has an external hex drive and meets American Society for Testing and Materials ASTM D4066 and D6779 specifications. Nylon 6/6 provides resistance to abrasion, corrosion, and many chemicals and solvents. The material is a strong yet lightweight plastic and is nonconductive. Nylon 6/6 can either absorb or lose moisture, which may alter its dimensions and mechanical properties. The external hex drive has six flat sides that a wrench can grip to turn the screw from the side, enabling use when there is no space above the head for a driver.

Cap screws and hex bolts are threaded fasteners with thick hex-shaped heads that can be used with threaded nuts or in areas with limited clearance above the tapped (threaded) hole. Cap screws have slightly different dimensions than hex bolts and have a washer face underneath their unflanged hex head to act as a large bearing surface against the mating material.
