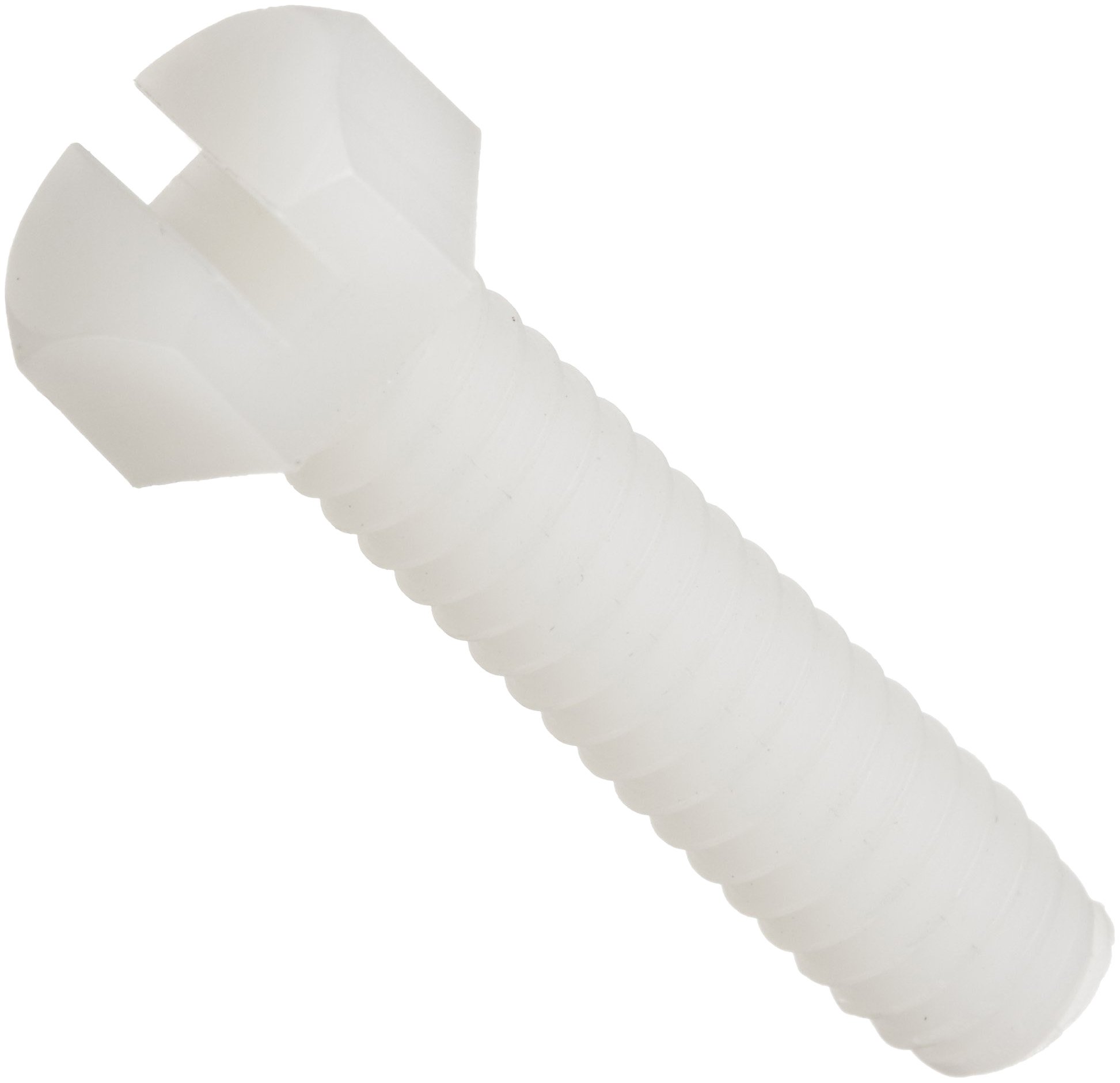

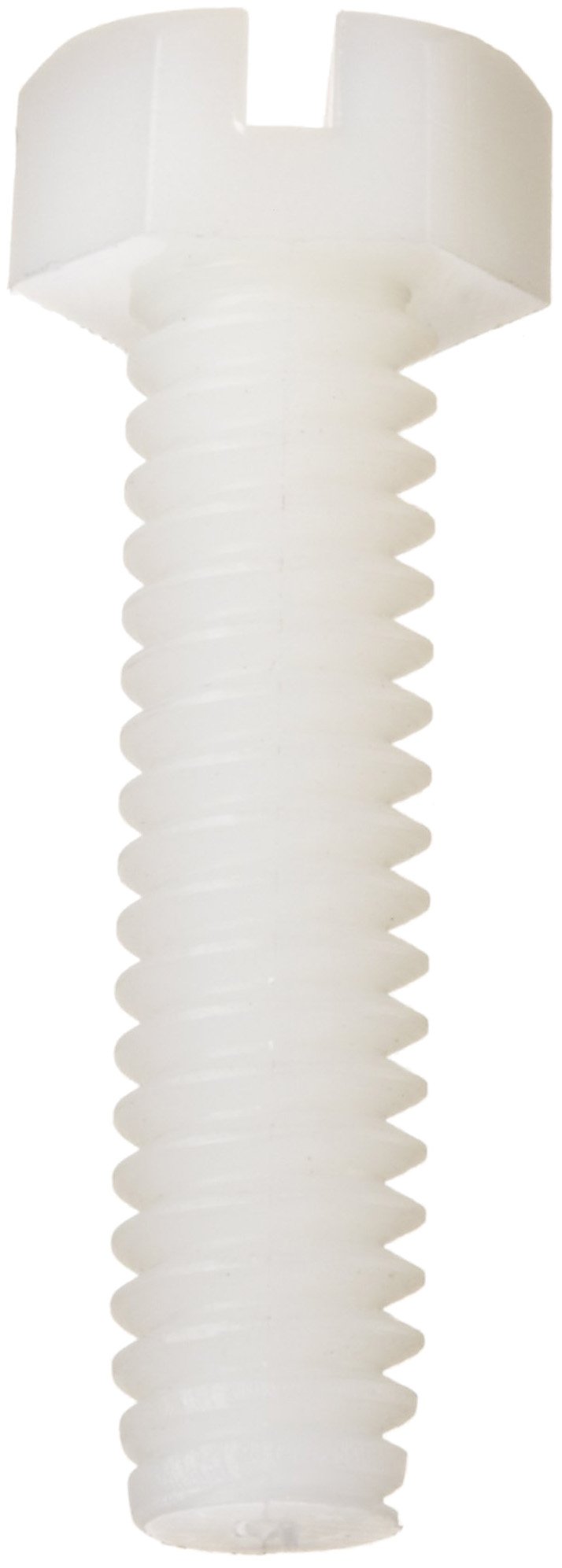

Nylon 6/6 Hex Bolt, Slotted Drive
Be the first to review this item
ASIN B003R7JD5G
Specifications for this item
- Brand Name
- Small Parts
- Color Name
- Off-White
- Drive Style
- Slotted
- Exterior Finish
- Plain
- Head Style
- Hex
- Material Type
- Nylon 6/6
- Part Number
- B003R7JD5G
- Self Locking Mechanism
- None
- System of Measurement
- Inch
This item is no longer available
This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)
Key Features
- Hex Bolts feature a chamfered point
- Nylon 6/6 is suitable where non-conductivity, corrosion resistance, and cost are important considerations
- Hex head for easy driving
- Length is measured from under the head
Product Description
Hex bolts have a chamfered point to aid insertion into a tapped hole or nut. Length is measured from under the head.
Nylon 6/6 is a general purpose thermoplastic with outstanding resistance to organic chemicals, acids and alkalis. Nylon wears well against other surfaces; it is readily machinable and may be milled, turned and cut with conventional machine tools. It does exhibit some dimensional swelling in wet applications which should be taken into account with its use. Tensile strength of this material is 12,000 psi (pounds per square inch).
Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side. Common applications for slotted screws include woodworking, although the drive style is not designed to be used with power drivers.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine.
