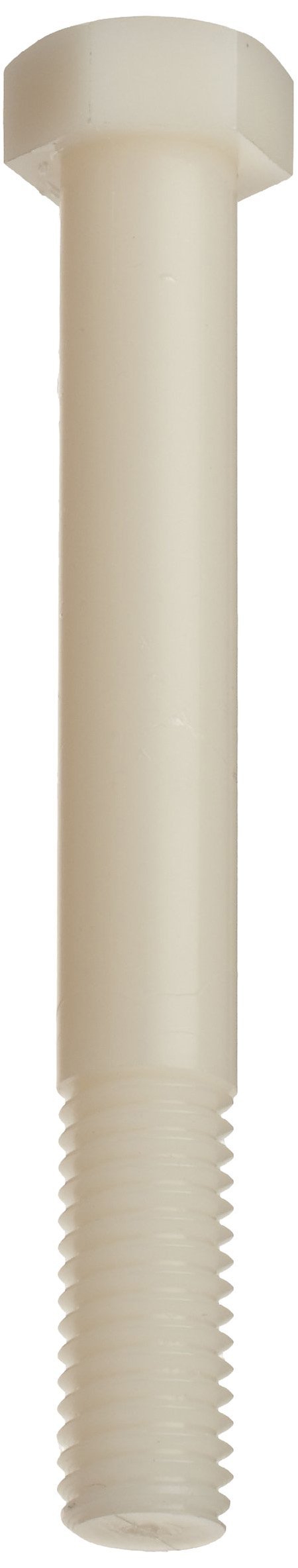

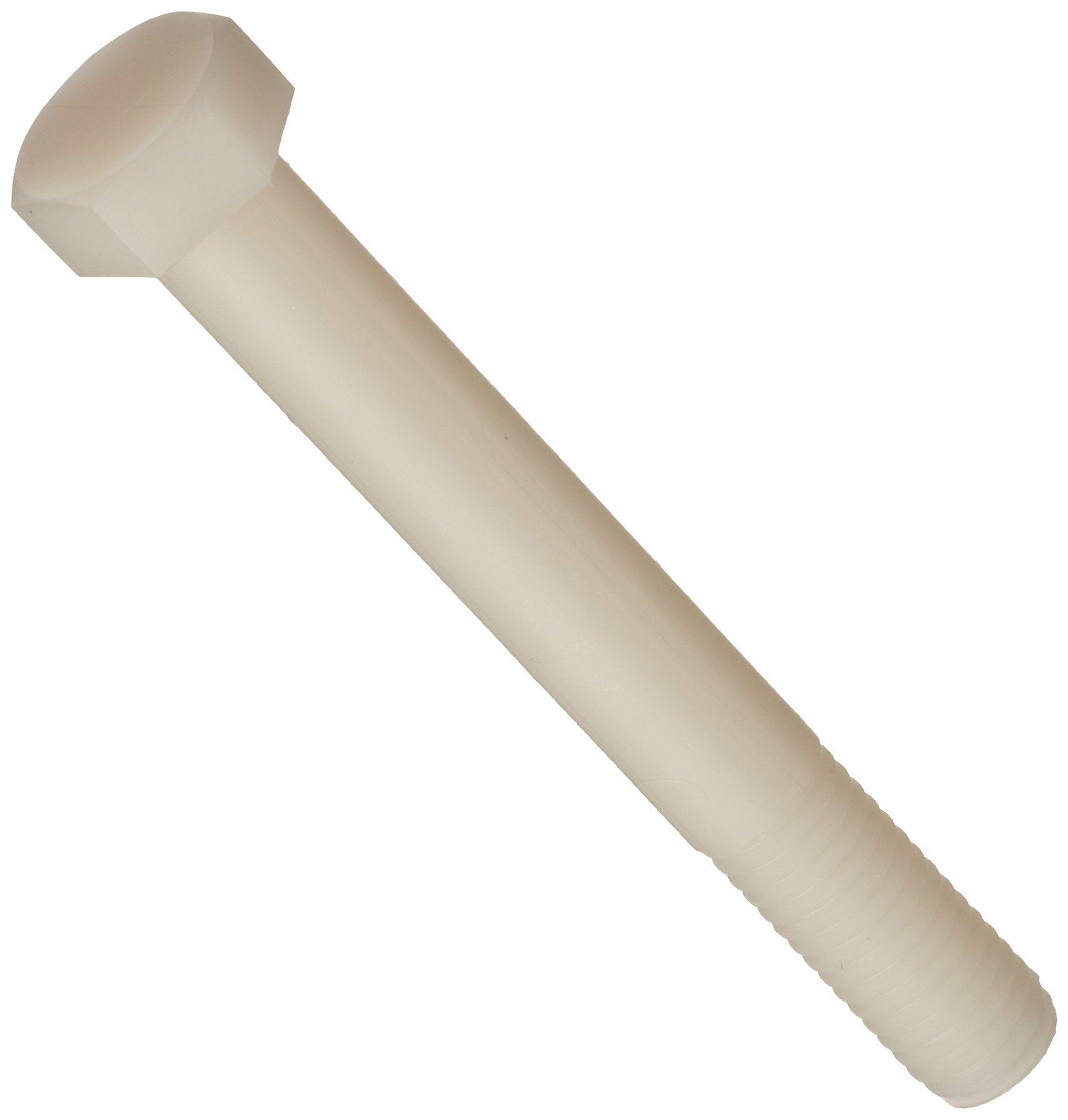

Nylon 6/6 Hex Bolt
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Drive Style
- Hex
- Exterior Finish
- Plain
- Head Style
- Hex
- Material Type
- Nylon 6/6
- Part Number
- B003R7JD4M
- Self Locking Mechanism
- None
- System of Measurement
- Inch
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- Hex Bolts feature a chamfered point
- Nylon 6/6 is suitable where non-conductivity, corrosion resistance, and cost are important considerations
- Hex head for easy driving
- Length is measured from under the head
Product Description
Hex bolts have a chamfered point to aid insertion into a tapped hole or nut. Length is measured from under the head.
Nylon 6/6 is a general purpose thermoplastic with outstanding resistance to organic chemicals, acids and alkalis. Nylon wears well against other surfaces; it is readily machinable and may be milled, turned and cut with conventional machine tools. It does exhibit some dimensional swelling in wet applications which should be taken into account with its use. Tensile strength of this material is 12,000 psi (pounds per square inch).
Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine. Fine threads are preferable when working with harder materials or when threading into a thin material. They are also stronger in tension than coarse threads, and generally provide higher shear strengths.
