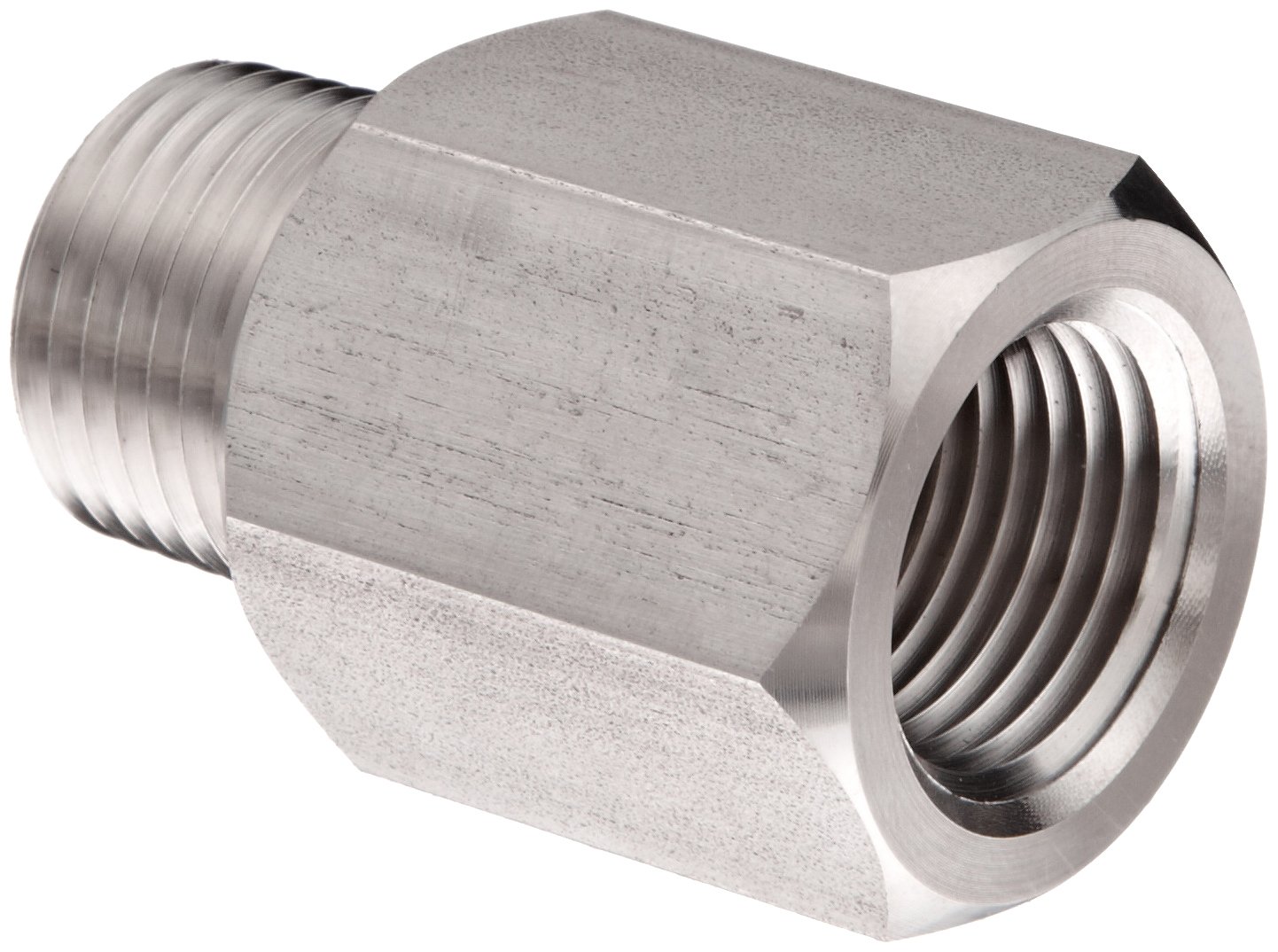

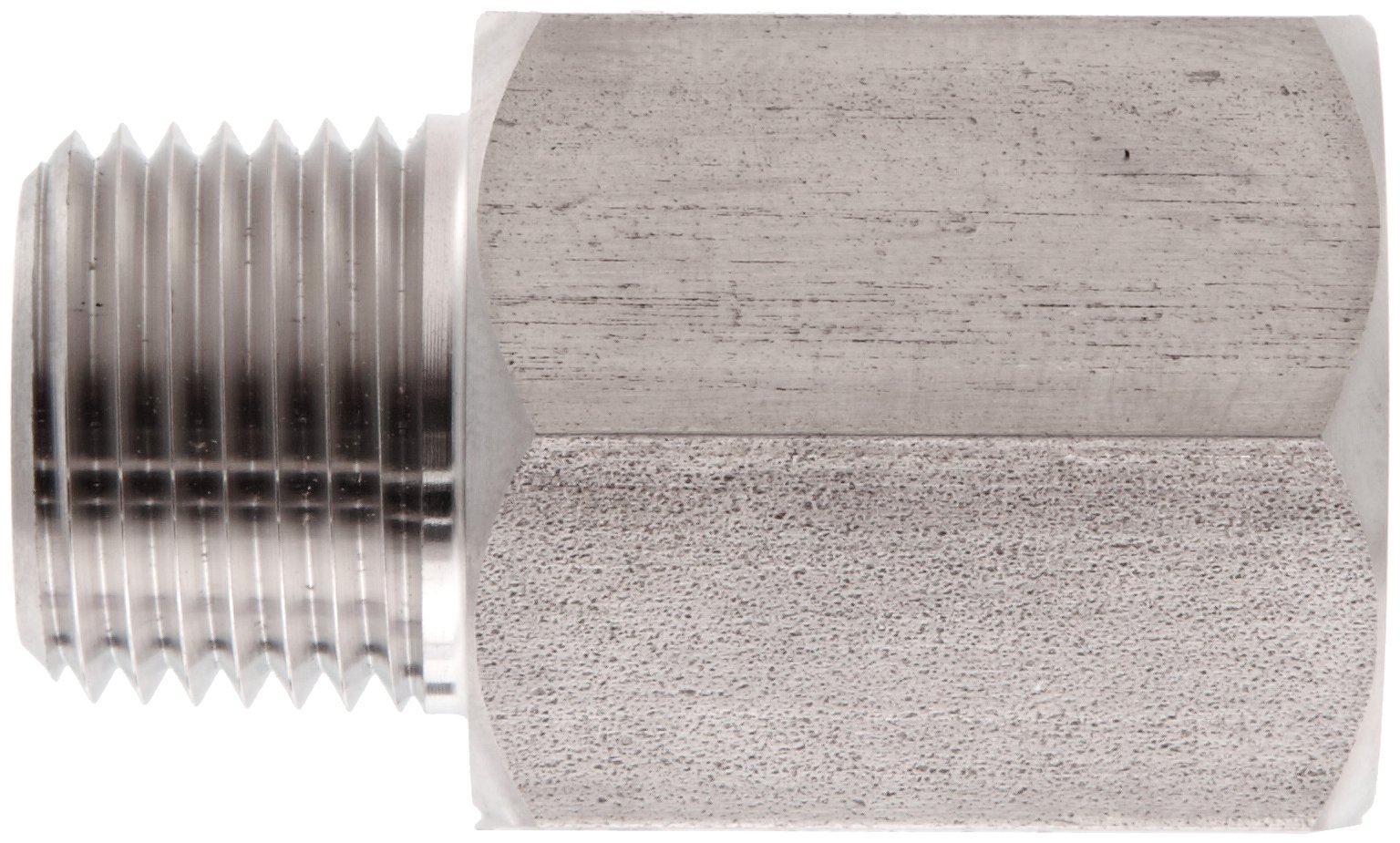

NOSHOK 316 Stainless Steel Sintered Pressure Snubber

Be the first to review this item

Product Specifications
Number of Items
1
Brand Name
NOSHOK

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 7 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Special Features Pressure Range Connection Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-10 of 10
Grade D Disc 0-15000 psi 1/4" Male NPT 5125-D B008N1JI8I 1 $23.32 Buy Options
Grade B Disc 0-15000 psi 1/2" Male NPT 5150-B B008N1JSWO 1 $55.47 Buy Options
Grade E Disc 0-15000 psi 1/2" Male NPT 5150-E B008N1JV8K 1 $52.47 Buy Options
Grade A Disc 0-15000 psi 1/2" Male NPT 5150-A B008N1JS56 1 $55.47 Buy Options
Grade D Disc 0-15000 psi 1/2" Male NPT 5150-D B008N1JUAO Temporarily out of stock. Order now and we'll deliver when available. $55.02 Buy Options
Grade C Disc 0-15000 psi 1/2" Male NPT 5150-C B008N1JTHS Temporarily out of stock. Order now and we'll deliver when available. $55.02 Buy Options
Grade E Disc 0-15000 psi 1/4" Male NPT 5125-E B008N1JJ0U Temporarily out of stock. Order now and we'll deliver when available. $23.48 Buy Options
Grade A Disc 0-15000 psi 1/4" Male NPT 5125-A B008N1JFQI Temporarily out of stock. Order now and we'll deliver when available. $23.48 Buy Options
Grade B Disc 0-15000 psi 1/4" Male NPT 5125-B B008N1JGM6 1 $23.48 Buy Options
Grade C Disc 0-15000 psi 1/4" Male NPT 5125-C B008N1JHFW Temporarily out of stock. Order now and we'll deliver when available. $23.48 Buy Options

Key Features

  • Stainless steel 316 for corrosion resistance
  • Available with A, B, C, D, or E grade discs to accommodate specific applications
  • Operates in pressures up to 15,000 psi (103,420 kPa)
  • Male connection with either 1/4" or 1/2" NPT rate

Product Description

The NoShok 316 stainless steel sintered snubber has a male connection, comes with one of five standard grade discs, and operates in pressures up to 15,000 psi (103,420 kPa). The snubber is stainless steel for operating in corrosive, high pressure, and high temperature environments. It is available in A, B, C, D, or E grade discs to accommodate specific applications. The grade A disc is for use with gases and has an average air flow estimate of 0.25 L/min at 1 psi. The grade B disc is for use with gases and water and has an average air flow estimate of 0.63 L/min at 1 psi. The grade C disc is for use with water and light oil and has an average air flow estimate of 1.46 L/min at 1 psi. The grade D disc with light oil and has an average air flow estimate of 2.79 L/min at 1 psi. The grade E disc is for use with heavy oil and has an average air flow estimate of 3.14 L/min at 1 psi. The male connection is either 1/4" or 1/2" NPT (National Pipe Thread) rate. This snubber increases gauge readability by smoothing out pressure surges, pulsations and spikes.

Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.

NoShok manufactures temperature and pressure measurement instruments, including pressure gauges, transducers and indicators, level transmitters, temperature switches and transmitters, and bimetal thermometers. The company, founded in 1967, is headquartered in Berea, OH.
