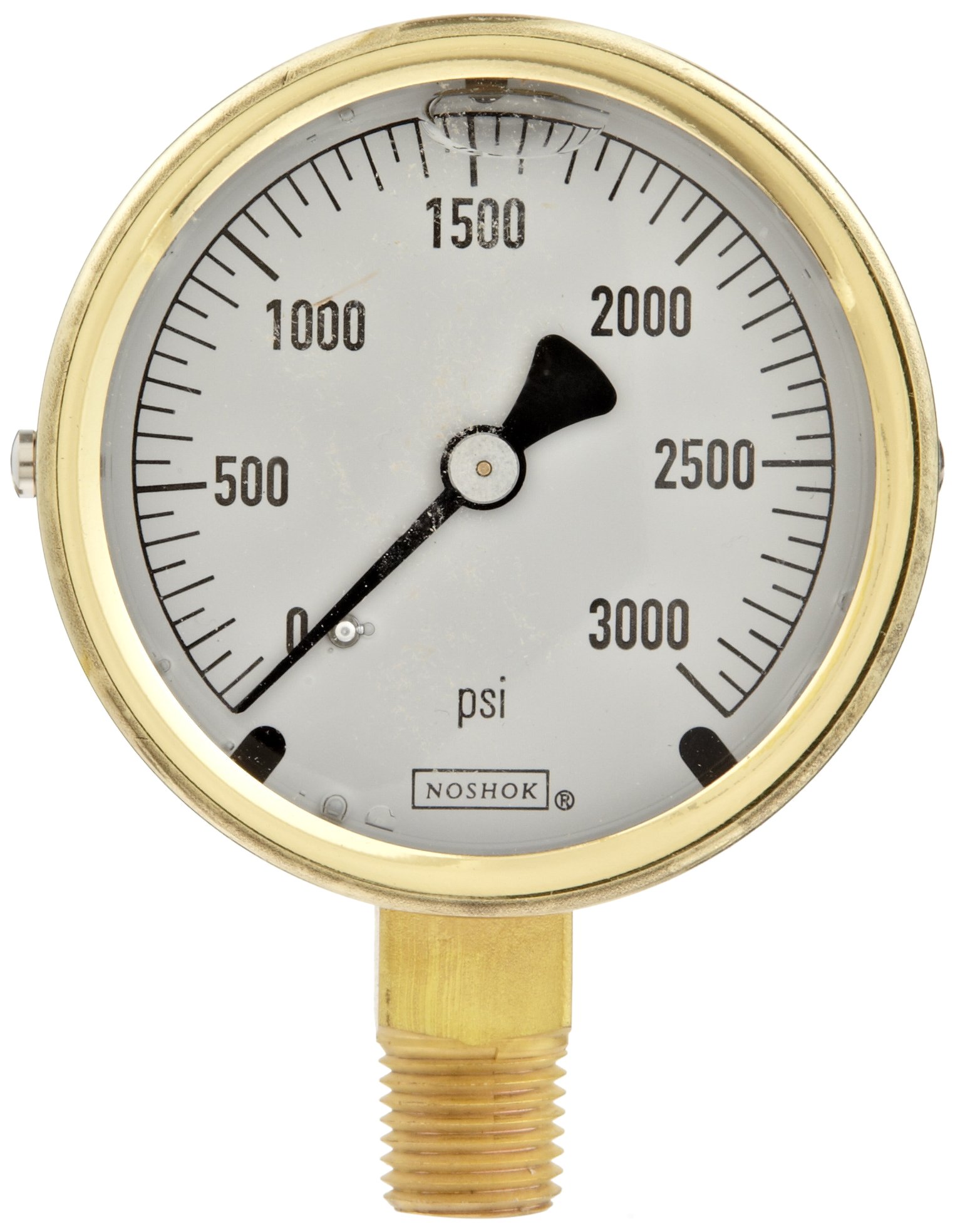

NOSHOK 300 Series Brass Liquid Filled Dial Indicating Pressure Gauge with Bottom Mount, 2-1/2" Dial, +/-1.5% Accuracy, 0-3000 psi Pressure Range

Be the first to review this item

ASIN B008N0Y7PS

Product Specifications
Mfr Part #
25-300-3000-psi
Mount
Bottom
Pressure Range
0-3000 psi
Accuracy
+/-1.5%
Dial Size
2-1/2  inches
Number of Items
1
Range
0-3000 psi
Specification for this product family (See all  products)
Manufacturer Series Number
300
Case
Brass
Temperature Range
0/160  Degrees Fahrenheit
UNSPSC Code
41112412
Brand Name
NOSHOK
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Jul 25? Order in-stock items in the next 22 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • High quality liquid filled gauges designed for durability, accuracy and long life
  • Heavy one-piece die casting integrates the case, connection, movement and bourdon tube support into a solid unit to eliminate leakage
  • Glycerine fill greatly reduces effects of vibration, pulsation and shock
  • Dials are printed with bold UV resistant ink for ease of readability even after years of exposure to direct sunlight
  • 3 year warranty

Package Details

Shipping Weight: 0.75 pounds
Package Size: 3.3 x 2.8 x 2.1 inches

Product Description

High quality liquid filled gauges designed for durability, accuracy and long life. Pressure ranges from vacuum through 15000 psi. 2-1/2" Dial sizes bottom connected; single scale. Heavy one-piece die casting integrates the case, connection, movement. and bourdon tube support into a solid unit to eliminate leakage. Glycerine fill greatly reduces effects of vibration, pulsation and shock. Dials are printed with bold UV resistant ink for ease of readability even after years. of exposure to direct sunlight. Used in demanding applications that are not corrosive to brass, where vibration and pulsation are present. Die cast brass natural brass finish. Coiled safety tube. Brass and Nickel-Silver with highly polished bearing surfaces. Safety relief disc on the top of the case. +/-1.5 percent Full scale ASME grade A Accuracy. Aluminum, white background with black markings. Glycerine and water fill liquid. Dynamic Pressure: The working pressure should be limited to 60 percent of the dial range for long service life. Static Pressure: The working pressure, where no sharp fluctuations occur, should be limited to 90 percent of the dial range. 0 to 160 degree F Ambient temperature. -4 to 140 degree F Media temperature.
