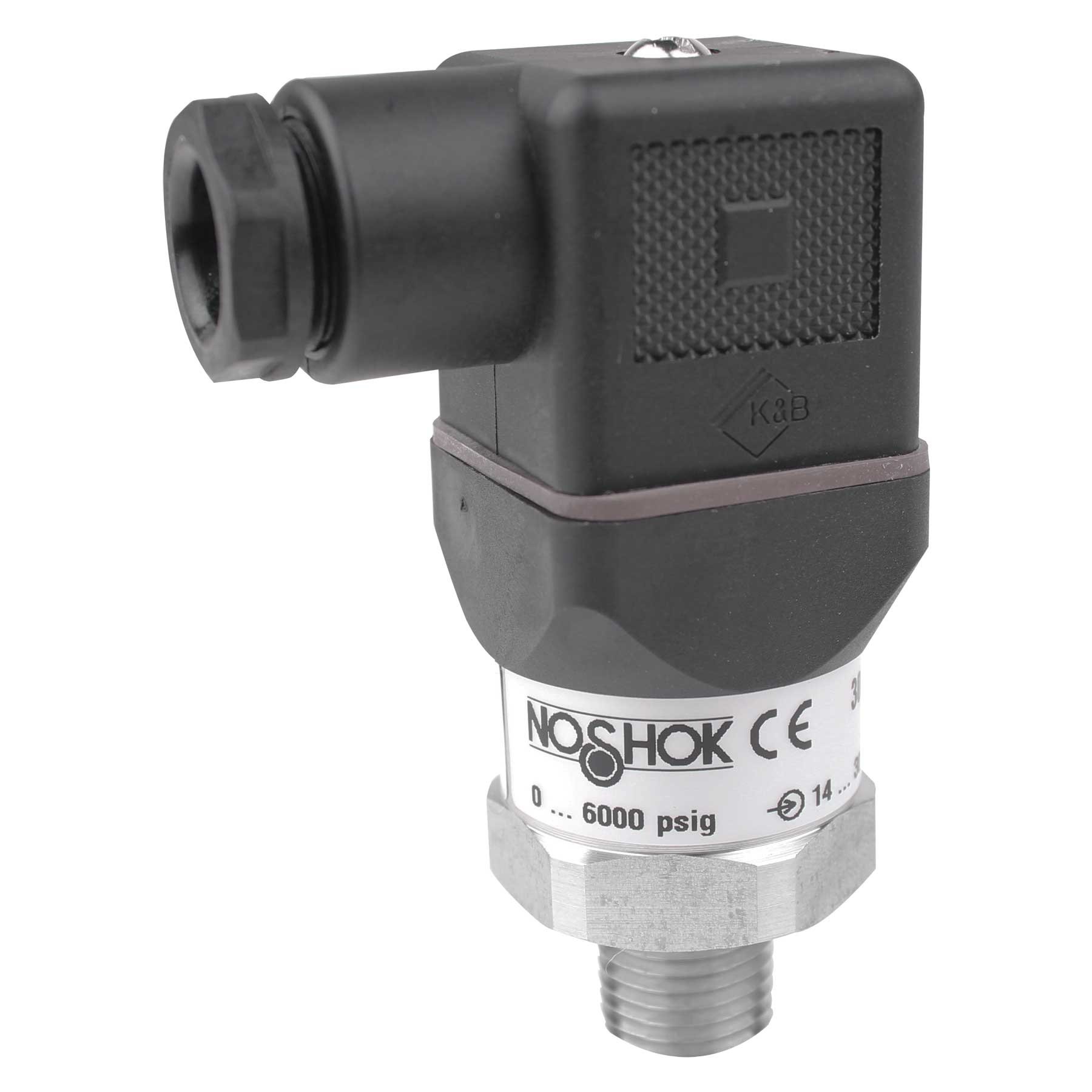

NOSHOK 300 Series Compact OEM Pressure Transducer

Be the first to review this item

ASIN B008PU00YI

Specifications for this item
Manufacturer Series Number
300
Measurement Accuracy
+/-0.5%
Grade
316
Material Type
Stainless Steel
UNSPSC Code
41112410
Temperature Range
32/176  Degrees Fahrenheit
Special Features
Stainless Steel 316
Brand Name
NOSHOK
System of Measurement
Inch

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Rugged, compact transducer at an affordable price
  • Ideal for dynamic or static measurement in general industrial applications where space is limited and durability is essential
  • High quality stainless steel construction for compatibility with chemically aggressive media
  • All welded design with no internal seals increases resistance to mechanical stress, shock and vibration
  • 3 year warranty

Product Description

Compact OEM Pressure Transducers. Ruggedness and long term stability during operation were the focus in the design of this NOSHOK 300 series pressure transducer. As a result of this we were able to develop a transducer for use in general industrial applications with technical specifications exceeding those of transducers costing much more. A wide variety of electrical and mechanical connections are available for easy installation into most applications along with most popular analog output signals. All electrical components carry a high degree of EMC protection compliant with EN 61 326 which make it ideal for areas where RFI, EMI or ESD signals are present. The compact size makes it very attractive for applications where space is limited. Constructed of high quality stainless steel makes it compatible with chemically aggressive media. The sensor is welded directly to the process connection eliminating the need for any gaskets or seals while also increasing the resistance to mechanical stress. Applicable for hydraulic and pneumatic systems, pumps and compressors, stamping and forming presses, test equipment and systems, industrial machinery and machine tools. RoHS compliant. Electricity connection: Hirschmann (DIN EN 175301-803 Form A). 4 mA to 20 mA, 2-wire Output Signal. Process Connection: 1/4" NPT Male. 2 times Full Scale Proof Pressure. 6 times Full Scale Burst Pressure. +/-0.5 percent full scale (BFSL) Accuracy; (Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors). Repeatability: less than or equal to +/-0.05 percent Full Scale. Hysteresis: less than or equal to +/-0.1 percent Full Scale. Stability: less than or equal to +/-0.2 percent Full Scale per year, non-accumulating. Response time: less than or equal to 4 ms (between 10 percent and 90 percent Full Scale). Power supply 10 Vdc to 30 Vdc, unregulated. 316 stainless steel Housing material.
